Complete Right Handle Unit replacement parts for 1990-1992 BMW K100RS (89V1)

OEM Parts Bmw 1990-1992 Bmw K100RS (89V1) Complete Right Handle Unit

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

01	HANDLE UNIT, RIGHT - D=20MM (TO 07/93) Part #: 32722352165 Required per assembly: 1 Note: FOR VEHICLES WITH OFFICIAL VEHICLES Currently Not Available
02	HANDLE RIGHT Part #: 32722310823 Required per assembly: 1 Note: NOT FOR VEHICLES WITH HEATED HANDLEBAR GRIPS (CODE: X519A) Currently Not Available

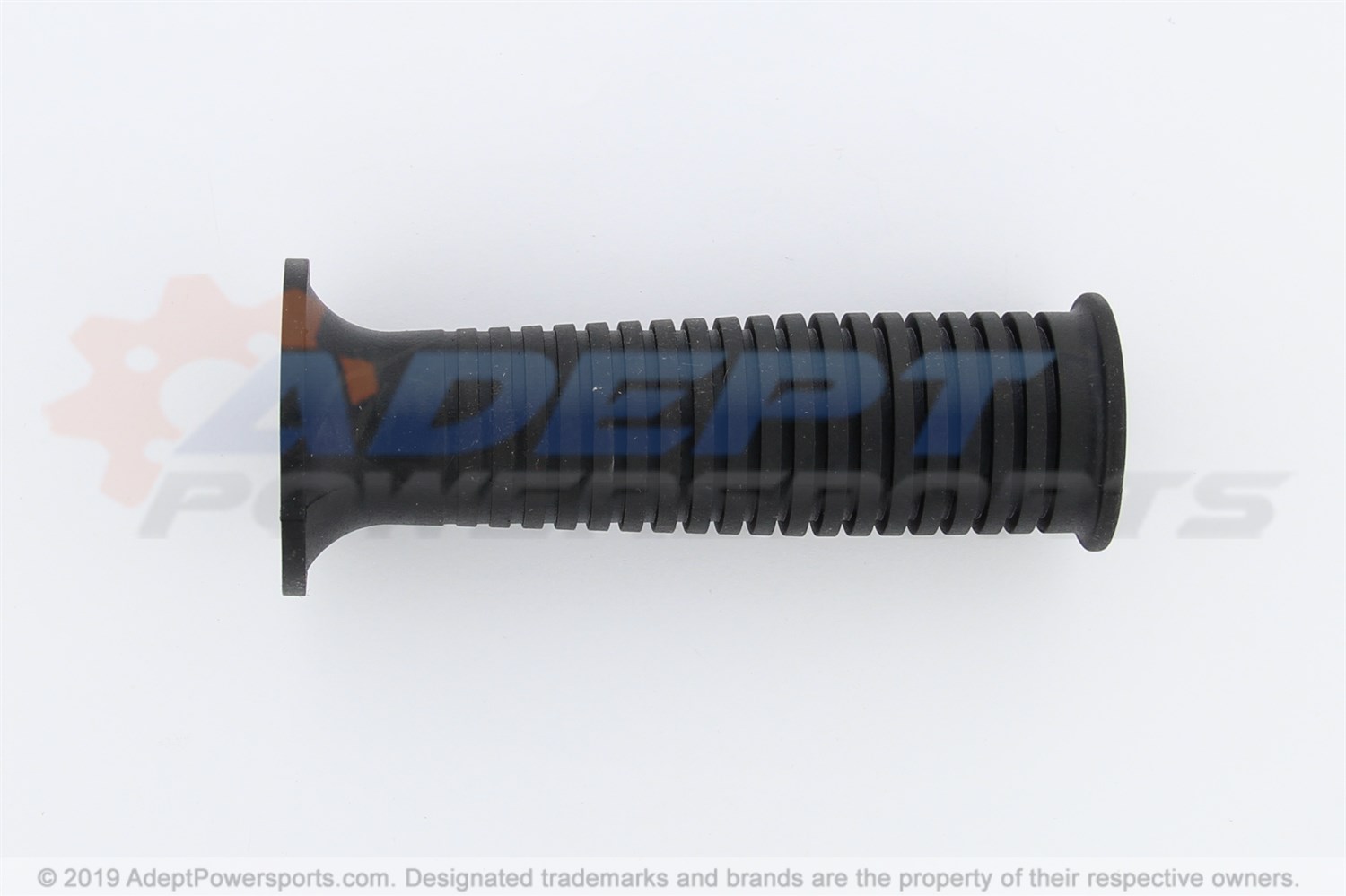

03	RIGHT GROOVED HANDLE Part #: 32721458396 Required per assembly: 1 Currently Not Available
04	COUNTERSUNK HEAD SCREW - M4X10 Part #: 32722310772 Required per assembly: 1 Currently Not Available
05	COUNTERSUNK HEAD SCREW - M5X35 Part #: 32722310771 Required per assembly: 1 Currently Not Available
