Fuel Injection System/Injection Valve replacement parts for 1990-1992 BMW K100RS (89V1)

OEM Parts Bmw 1990-1992 Bmw K100RS (89V1) Fuel Injection System/Injection Valve

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

01	HOSE CLAMP - D=13 Part #: 13311460928 Required per assembly: 1 Currently Not Available

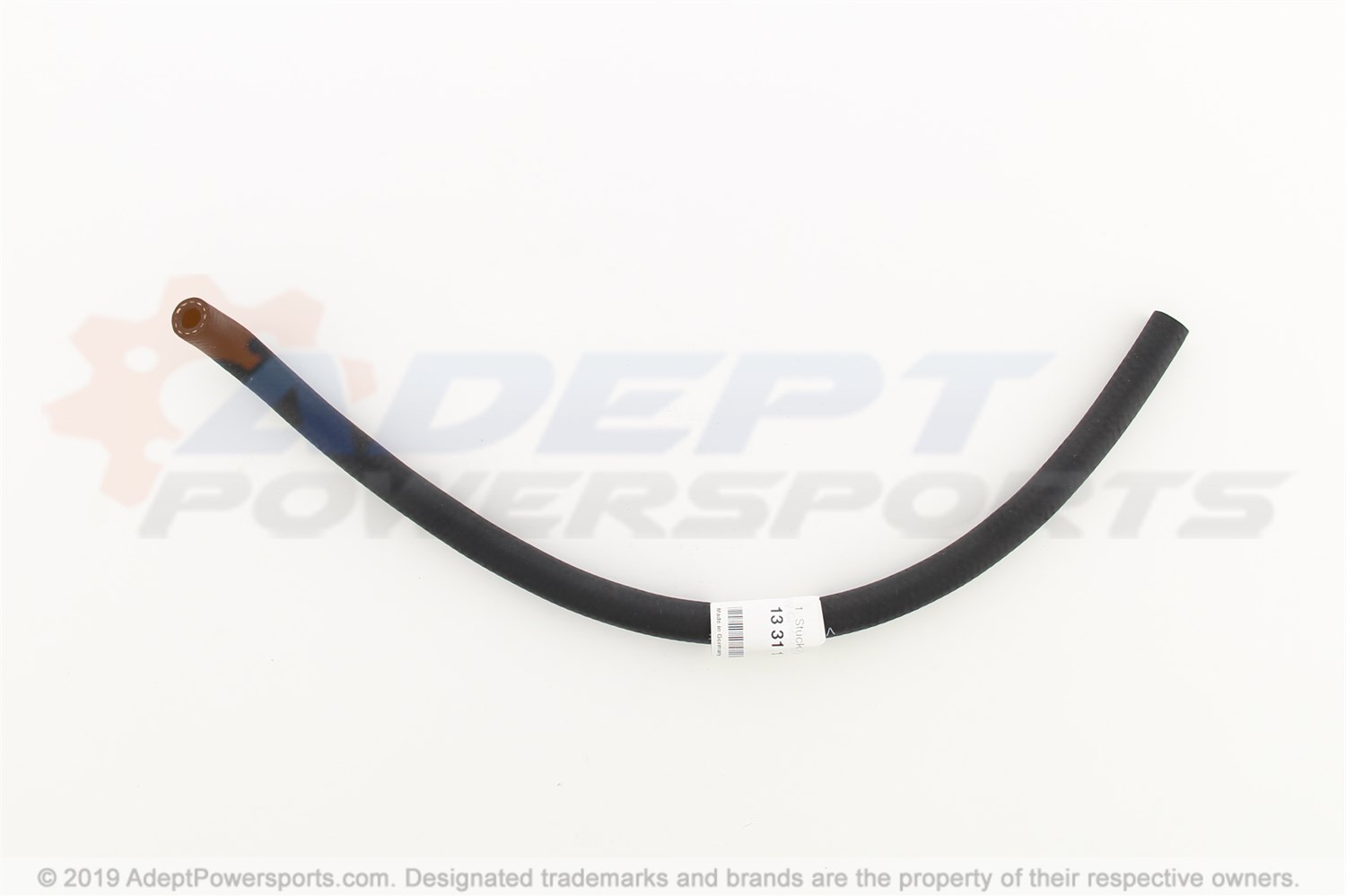

02	HOSE Part #: 13311461972 Required per assembly: 1 Currently Not Available
03	HOSE CLAMP - 13,1-15,3 Part #: 16121176918 Required per assembly: 1 Note: ONLY IN CONJUNCTION WITH Currently Not Available
04	INJECTION RAIL Part #: 13531461376 Required per assembly: 1 Currently Not Available
05	CLAMP Part #: 13531274729 Required per assembly: 4 $0.87 $0.73 - + Add to cart
06	INJECTION VALVE Part #: 13641461523 Required per assembly: 4 Currently Not Available
07	O-RING - 7, 52X3, 53 Part #: 13641730767 Required per assembly: 8 $5.78 $4.82 - + Add to cart
08	RUBBER GROMMET Part #: 13531460417 Required per assembly: 2 Currently Not Available
09	SPACER SLEEVE Part #: 13531460414 Required per assembly: 2 Currently Not Available
10	WASHER Part #: 13531460413 Required per assembly: 4 Currently Not Available
11	HEX BOLT - M6X22-8.8-ZNS3 Part #: 07119904505 Required per assembly: 2 Currently Not Available
12	WAVE WASHER - B10-ZN Part #: 07119932112 Required per assembly: 2 Currently Not Available
