Transmission replacement parts for 1990 Honda Elite 250 (CH250)

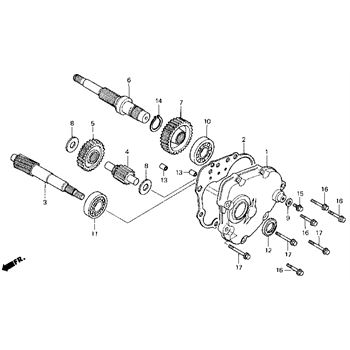

OEM Parts Honda 1990 Honda Elite 250 (CH250) Transmission

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	COVER, TRANSMISSION Part #: 21300-KAB-305 Required per assembly: 1 Not Available
002	GASKET, TRANS, COVER Part #: 21395-KAB-902 Required per assembly: 1 Not Available
003	DRIVESHAFT Part #: 23410-KAB-010 Required per assembly: 1 Not Available
004	COUNTERSHAFT Part #: 23421-KAB-000 Required per assembly: 1 Not Available
005	GEAR (38T) Part #: 23422-KAB-000 Required per assembly: 1 Not Available
006	SHAFT, FINAL Part #: 23431-KAB-000 Required per assembly: 1 Not Available
007	GEAR, FINAL, (38T) Part #: 23432-KAB-000 Required per assembly: 1 Not Available
008	WASHER (14X32X1) Part #: 90512-VA3-J02 Required per assembly: 2 $3.12 - + Add to cart
009	WASHER A (8MM) Part #: 90488-700-000 Required per assembly: 1 $2.26 $2.09 - + Add to cart
010	BEARING (6304) Part #: 91001-GF6-004 Required per assembly: 1 $20.39 $19.78 - + Add to cart
011	BEARING (62/22) Part #: 91005-KS4-003 Required per assembly: 1 $46.87 $39.08 - + Add to cart
012	OIL SEAL (22X35X5) Part #: 91251-KM1-003 Required per assembly: 1 $8.36 $7.27 - + Add to cart
013	PIN, DOWEL, (10X16) Part #: 94301-10160 Required per assembly: 4 $3.50 $3.18 - + Add to cart
014	CIRCLIP (24MM) Part #: 94510-24000 Required per assembly: 1 Not Available
015	BOLT, FLANGE, (8X12) Part #: 95701-08012-00 Required per assembly: 1 $2.17 $2.00 - + Add to cart
016	BOLT, FLANGE, (8X35) Part #: 95701-08035-00 Required per assembly: 1 $3.26 $3.03 - + Add to cart
017	BOLT, FLANGE, (8X45) Part #: 95701-08045-00 Required per assembly: 2 $2.48 $2.29 - + Add to cart
