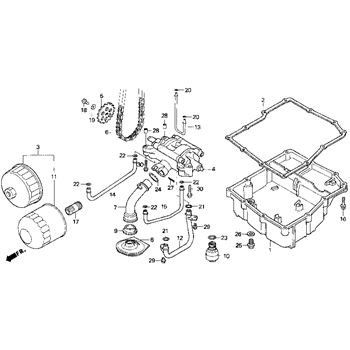

Oil Pump 90-93 replacement parts for 1990 Honda VFR (VFR750F)

OEM Parts Honda 1990 Honda VFR (VFR750F) Oil Pump 90-93

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	PAN, OIL Part #: 11211-MY7-000 Required per assembly: 1 Not Available
002	GASKET, OIL, PAN Part #: 11315-MY7-000 Required per assembly: 1 Not Available
004	PUMP, ASSEMBLY, OIL Part #: 15100-ML7-690 Required per assembly: 1 Not Available
005	SPROCKET (25T) Part #: 15134-MB0-010 Required per assembly: 1 Not Available
006	CHAIN (48L) Part #: 15140-ML7-003 Required per assembly: 1 $38.98 $31.55 - + Add to cart
007	PIPE, OIL, STRAINER Part #: 15151-ML7-000 Required per assembly: 1 Not Available
008	STRAINER, OIL Part #: 15153-ML7-690 Required per assembly: 1 Not Available
009	GASKET, OIL, STRAINER Part #: 15154-ML7-000 Required per assembly: 1 Not Available
010	VALVE, ASSEMBLY, RELIEF Part #: 15220-MJ6-000 Required per assembly: 1 Not Available
011	FILTER, OIL Part #: 15410-MFJ-D02 Required per assembly: 1 $27.76 - + Add to cart
012	PIPE, A, OIL Part #: 15511-ML7-000 Required per assembly: 1 Not Available
013	PIPE, B, OIL Part #: 15512-ML7-000 Required per assembly: 1 Not Available
014	PIPE, C, OIL Part #: 15521-ML7-000 Required per assembly: 1 Not Available
015	PIPE, D, OIL Part #: 15522-ML7-000 Required per assembly: 1 Not Available
016	BOLT, FLANGE, (6X28) Part #: 90004-GHB-680 Required per assembly: 5 $4.99 $4.54 - + Add to cart
017	BOSS, OIL, FILTER Part #: 90019-MB0-000 Required per assembly: 1 $9.98 $8.58 - + Add to cart
018	BOLT, HEX., (6X16) Part #: 90021-KE8-010 Required per assembly: 1 $3.25 $3.02 - + Add to cart
019	WASHER (6X2.3) Part #: 90488-MB0-000 Required per assembly: 1 $5.26 $5.25 - + Add to cart
020	O-RING (6X2) Part #: 91307-ML7-004 Required per assembly: 2 $3.93 $3.57 - + Add to cart
021	O-RING (14.6X3.6) Part #: 91308-MA6-005 Required per assembly: 2 $5.04 $4.95 - + Add to cart
022	O-RING (9.6X2.6) Part #: 91309-ML7-003 Required per assembly: 2 $3.29 $3.06 - + Add to cart
023	O-RING (14.8X2.2) Part #: 91313-MG7-004 Required per assembly: 1 $5.04 $4.58 - + Add to cart
024	O-RING (21.2X2.4) Part #: 91331-PC9-003 Required per assembly: 1 $4.75 $4.32 - + Add to cart
025	BOLT, DRAIN, (12MM) Part #: 92800-12000 Required per assembly: 2 $4.86 $4.42 - + Add to cart
026	WASHER, DRAIN, (12MM) Part #: 94109-12000 Required per assembly: 2 $2.17 $1.97 - + Add to cart
027	PIN, SPLIT, (2.0X35) Part #: 94201-20350 Required per assembly: 2 $2.07 $1.91 - + Add to cart
028	PIN, DOWEL, (8X14) Part #: 94301-08140 Required per assembly: 2 $3.21 $2.99 - + Add to cart
029	BOLT, FLANGE, (6X14) Part #: 95701-06014-00 Required per assembly: 1 $2.04 $1.88 - + Add to cart
030	BOLT, FLANGE, (6X40) Part #: 95701-06040-00 Required per assembly: 1 $2.87 $2.67 - + Add to cart
