Rear Wheel Fork replacement parts for 1996-1997 BMW F650ST (E169)

OEM Parts Bmw 1996-1997 Bmw F650ST (E169) Rear Wheel Fork

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

01	REAR WHEEL FORK Part #: 33172345277 Required per assembly: 1 Currently Not Available
02	AXLE SHAFT Part #: 33172345281 Required per assembly: 1 Currently Not Available
03	STOP DISK - 22X36X2 Part #: 33172345279 Required per assembly: 2 Currently Not Available
04	GASKET RING Part #: 33172345278 Required per assembly: 4 Currently Not Available

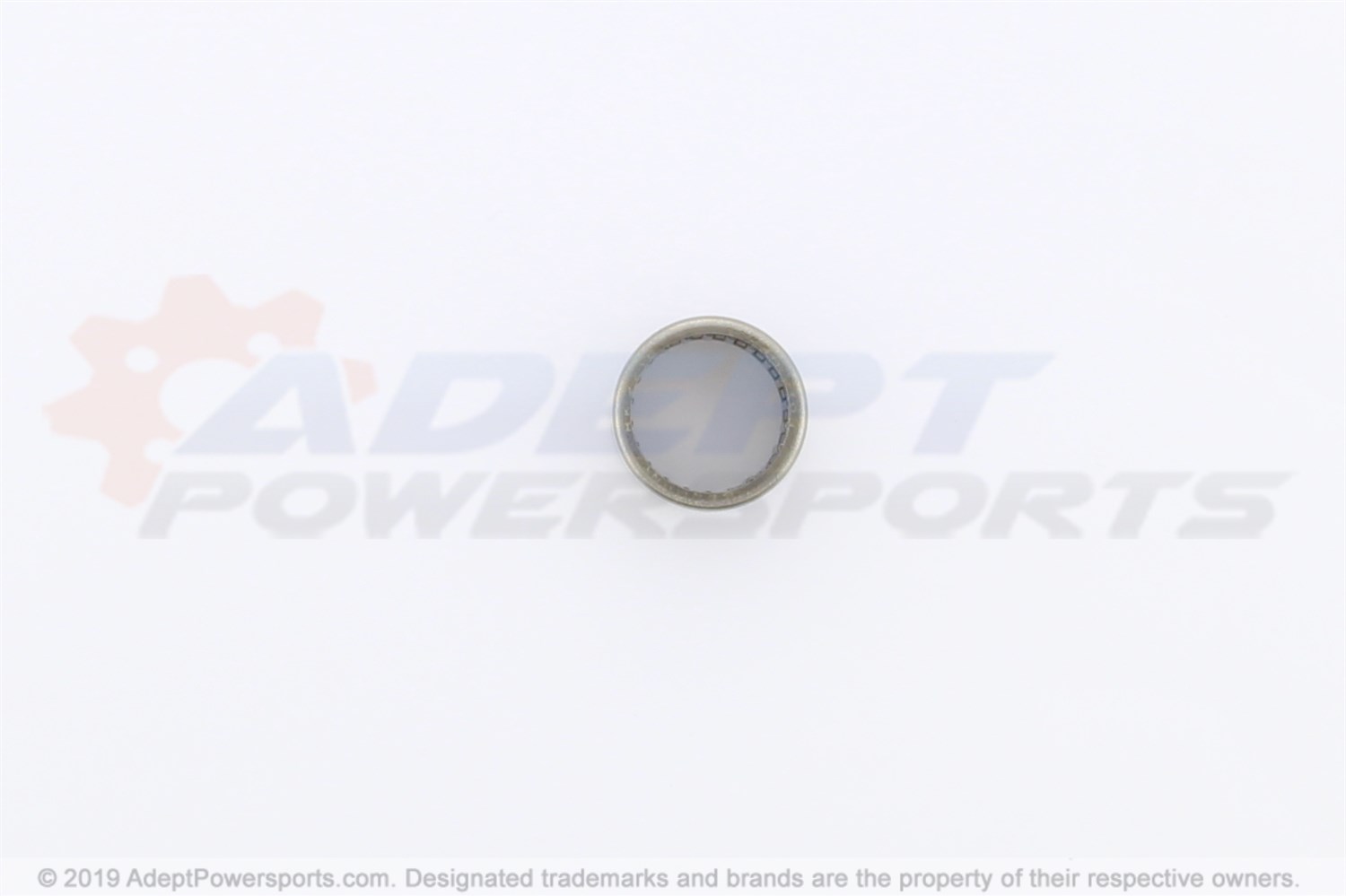

05	NEEDLE SLEEVE - 22X28X16 Part #: 33172345283 Required per assembly: 4 Currently Not Available
06	BUSH Part #: 33172345280 Required per assembly: 2 Currently Not Available
07	WASHER - A15 ZNS3 Part #: 07119905829 Required per assembly: 2 Currently Not Available
08	HEX NUT - M14X1,5 Part #: 33172345435 Required per assembly: 1 Currently Not Available
09	FILLISTER-HEAD SCREW - M8X70 Part #: 07119901038 Required per assembly: 2 Note: ONLY APPLIES TO Currently Not Available
10	WASHER - A8,4-ZNS Part #: 07119931019 Required per assembly: 2 Note: FOUR SPEED GEARBOX Currently Not Available
11	SUPPORTING PLATE Part #: 33172345282 Required per assembly: 2 Currently Not Available
12	HEX NUT - M8 Part #: 36312345495 Required per assembly: 2 Currently Not Available
13	PLATE RIGHT Part #: 33172345433 Required per assembly: 2 Currently Not Available
13	PLATE LEFT Part #: 33172345434 Required per assembly: 2 Currently Not Available
14	BLIND PLUG Part #: 33172345285 Required per assembly: 2 Currently Not Available
15	CLAMP Part #: 34322345284 Required per assembly: 2 Currently Not Available
16	SET: SET MOUNTING PARTS Part #: 33172345590 Required per assembly: 1 Currently Not Available
17	SPRAY SILVER - 131 Part #: 51911240868 Required per assembly: 1 Note: FOR CAST RIMS Not Available
19	LABEL "DRIVE CHAIN/TIRE PRESSUE" Part #: 71212345648 Required per assembly: 1 Not Available
--	LABEL "DRIVE CHAIN/TIRE PRESSUE" Part #: 71212345410 Required per assembly: 1 Note: ONLY IN CONJUNCTION WITH Not Available
