OEM Parts Bmw 1996-1997 Bmw F650ST (E169) Water Pump

1996-1997 Bmw F650ST (E169) 09/96-06/97 USA - Water Pump

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
01

WATERPUMP HOUSING

Part #: 11512343128 Required per assembly: 1
Currently Not Available
02

FILLISTER-HEAD SCREW - M6X25

Part #: 07119903807 Required per assembly: 3
Not Available
03

GASKET RING - A6X10

Part #: 11142343240 Required per assembly: 1
Currently Not Available
04

THREAD LOCK, MEDIUM-STRENGTH - 10ML

Part #: 83192210339 Required per assembly: 1 Note: ONLY IN CONJUNCTION WITH
Currently Not Available
05

O-RING

Part #: 11512343129 Required per assembly: 1
Currently Not Available
06

SCHMIERMITTEL MOLYKOTE 111 - 100G

Part #: 11007660832 Required per assembly: 1
Currently Not Available
07

CLAMPING BUSH - 4X16

Part #: 11512343123 Required per assembly: 1
Currently Not Available
08

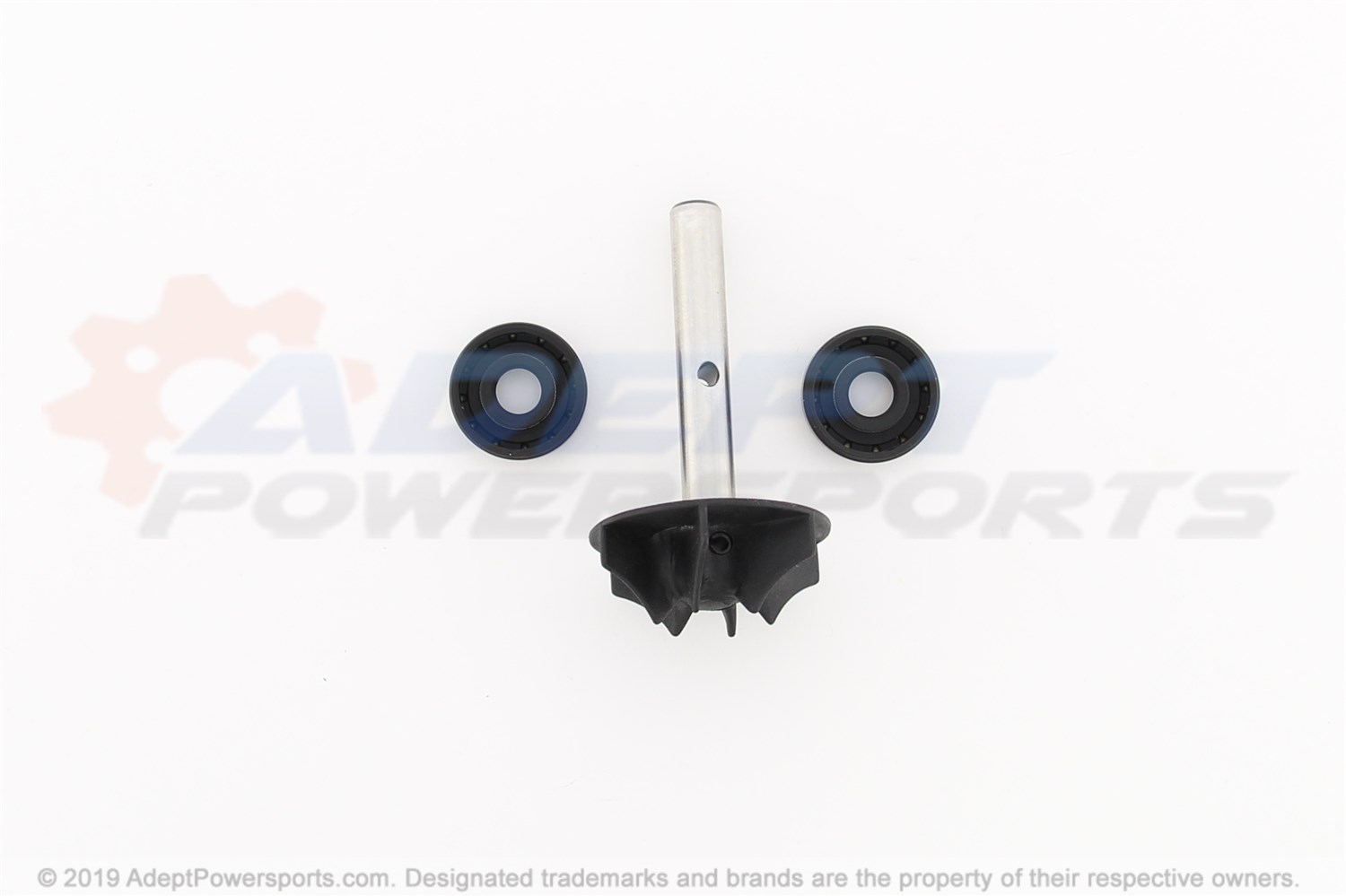

SET: SET, WATER PUMP SHAFT

Part #: 11512343451 Required per assembly: 1
Currently Not Available
09

STOP DISK - 10,1X17X1

Part #: 11412343107 Required per assembly: 1
Currently Not Available
10

ROLL PIN - 4X19,8

Part #: 11512343127 Required per assembly: 1
Currently Not Available
11

PINION

Part #: 11512343126 Required per assembly: 1
Currently Not Available
