OEM Parts Bmw 2000-2003 Bmw F650CS 03 (K14) Engine Housing Cover, Left

2000-2003 Bmw F650CS 03 (K14) 11/00-09/03 USA - Engine Housing Cover, Left

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
01

ENGINE HOUSING COVER, LEFT

Part #: 11147652863 Required per assembly: 1
Currently Not Available
01

ENGINE HOUSING COVER, LEFT - BLACK

Part #: 11147666517 Required per assembly: 1 Note: FOR VEHICLES WITH BLACK PARTS, AUTHORITIES (CODE: X668A)
Currently Not Available
02

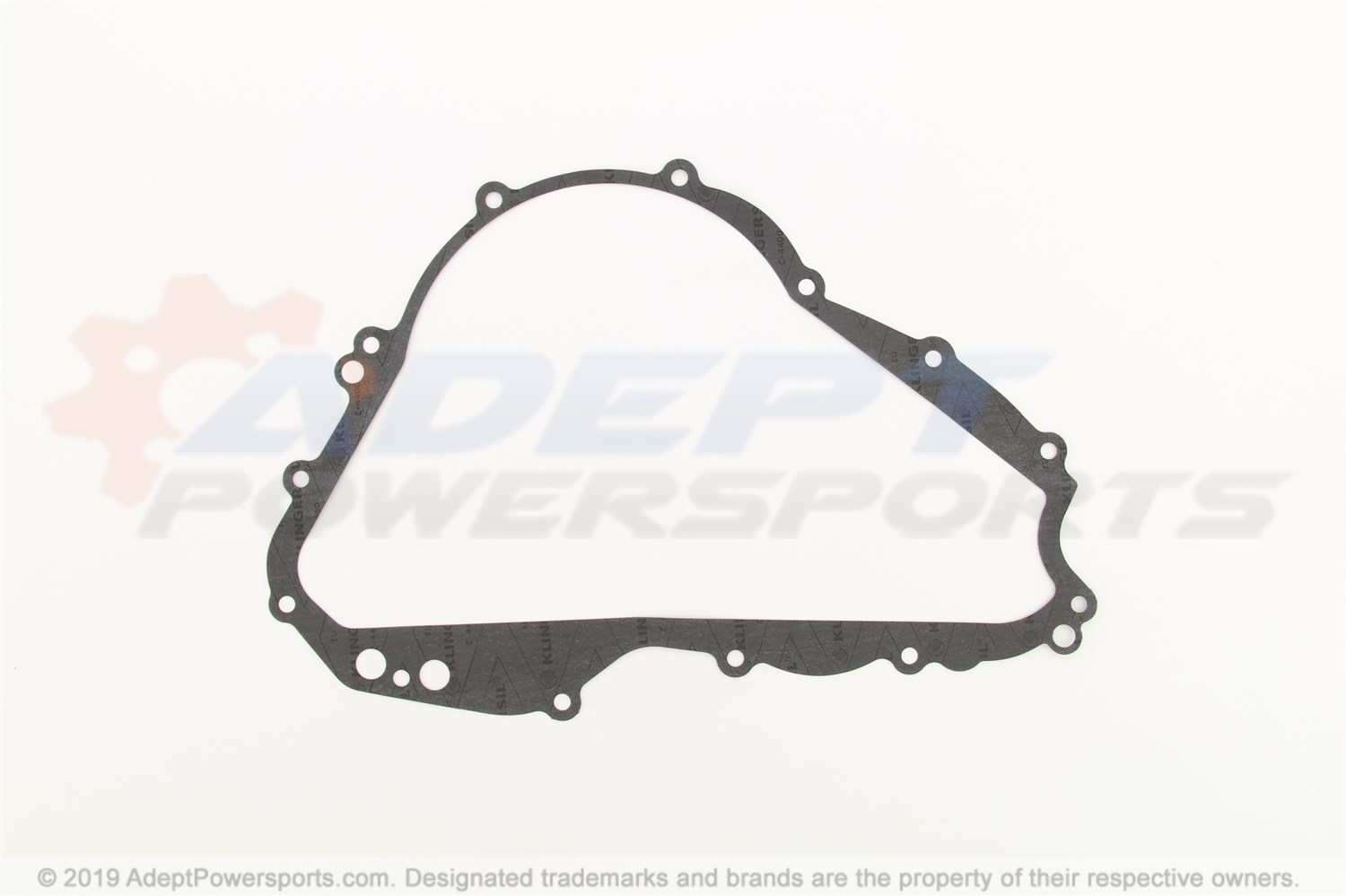

GASKET

Part #: 11147706498 Required per assembly: 1
Currently Not Available
03

NEEDLE SLEEVE - 8X12X8

Part #: 11142343036 Required per assembly: 1
Currently Not Available
04

NEEDLE SLEEVE - 12X16X10

Part #: 11142343037 Required per assembly: 1
Currently Not Available
05

SHAFT SEAL - 12X28X7

Part #: 11142343038 Required per assembly: 1
Currently Not Available
06

TORX BOLT - M6X30

Part #: 11117706514 Required per assembly: 10
Currently Not Available
07

GASKET RING - A6X10

Part #: 11142343240 Required per assembly: 2
Currently Not Available
08

TORX BOLT - M6X75

Part #: 11117706512 Required per assembly: 3 Note: NOT FOR VEHICLES WITH HEATED HANDLEBAR GRIPS (CODE: X519A) AND HAND PROTECTOR (CODE: X589A)
Currently Not Available
08

TORX BOLT - M6X75

Part #: 11117672247 Required per assembly: 3 Note: NOT FOR VEHICLES WITH HEATED HANDLEBAR GRIPS (CODE: X519A) AND HAND PROTECTOR (CODE: X589A)
Currently Not Available
