Radiator Hoses/Temperature Sensor replacement parts for 2000-2003 BMW F650CS 03 (K14)

OEM Parts Bmw 2000-2003 Bmw F650CS 03 (K14) Radiator Hoses/Temperature Sensor

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

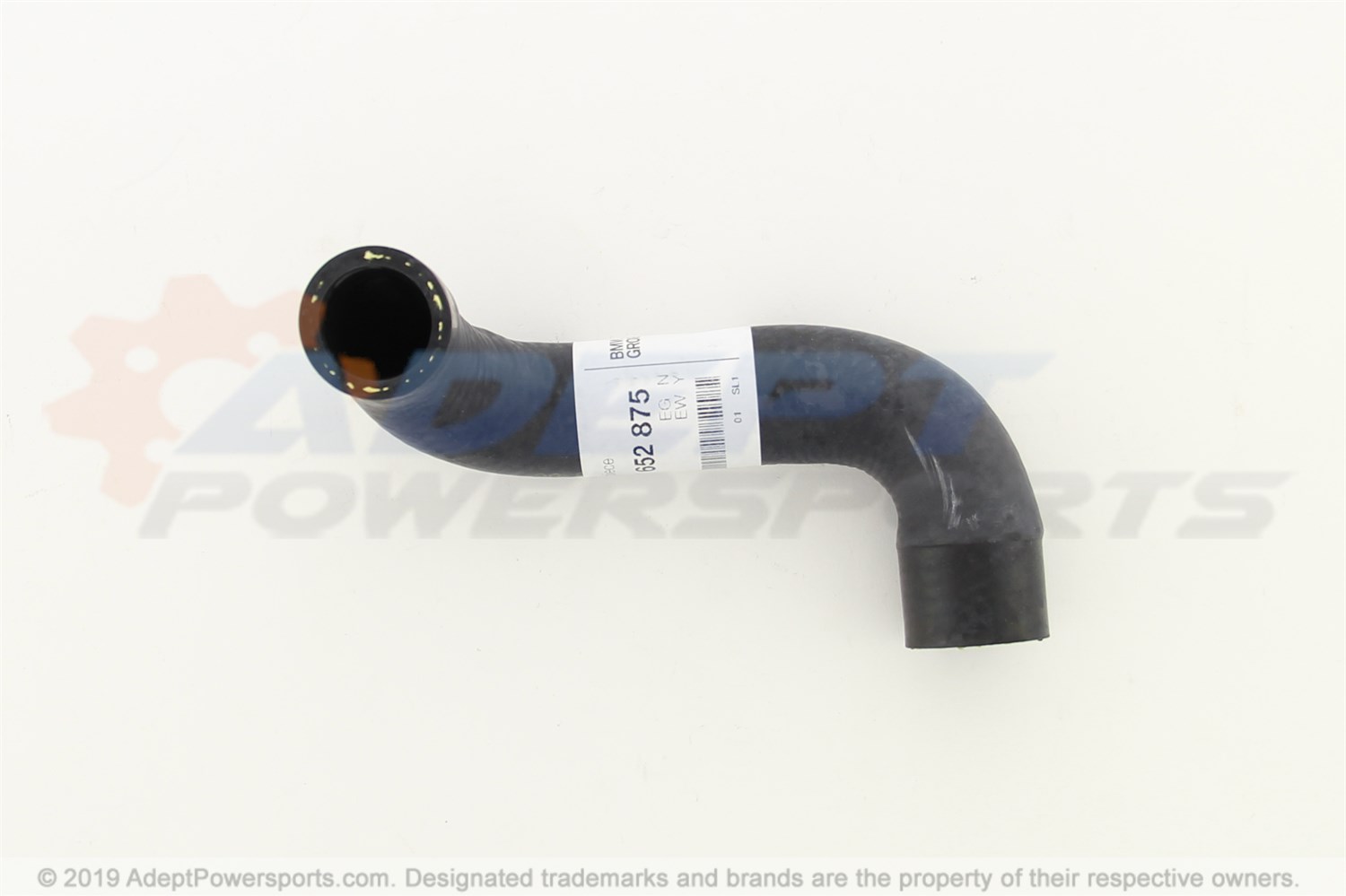

01	WATER HOSE Part #: 11517652875 Required per assembly: 1 Currently Not Available
02	ANGLE CONNECTOR Part #: 11127652876 Required per assembly: 1 Currently Not Available
03	DOUBLE TEMPERATURE SWITCH Part #: 13621703993 Required per assembly: 1 Currently Not Available
04	ISA SCREW WITH WASHER - M5X16-Z1-ZNS Part #: 07129902329 Required per assembly: 2 Note: FOR VEHICLES WITH HAZARD WARNING FLASHERS (CODE: X522A) Currently Not Available
05	WASHER - 5,3 Part #: 07119936439 Required per assembly: 2 Currently Not Available
06	SPACER SLEEVE, RIGHT - 5,2/7/6,5MM Part #: 11127652917 Required per assembly: 2 Currently Not Available
07	GASKET RING - 21X3,5X1,5MM Part #: 11127652951 Required per assembly: 1 Currently Not Available
08	COOLANT HOSE, LEFT Part #: 17122345243 Required per assembly: 1 Currently Not Available
09	COOLANT HOSE, RIGHT Part #: 17127659980 Required per assembly: 1 Currently Not Available
09	COOLANT HOSE, RIGHT Part #: 17127680128 Required per assembly: 1 Currently Not Available
10	COOLANT HOSE, RETURN Part #: 17127659981 Required per assembly: 1 Currently Not Available
11	HOSE CLAMP - L16-30 Part #: 64218367179 Required per assembly: 8 Currently Not Available
12	VENT SCREW - M10X1 Part #: 11127728618 Required per assembly: 1 Currently Not Available
--	PROTECTION CAP - 4-POL Part #: 12521703593 Required per assembly: 1 Note: ONLY APPLIES TO Currently Not Available
