Brake Pipe, Front, Without Abs replacement parts for 2000-2004 BMW K1200RS 02-04 (K41)

OEM Parts Bmw 2000-2004 Bmw K1200RS 02 04 (K41) Brake Pipe, Front, Without Abs

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

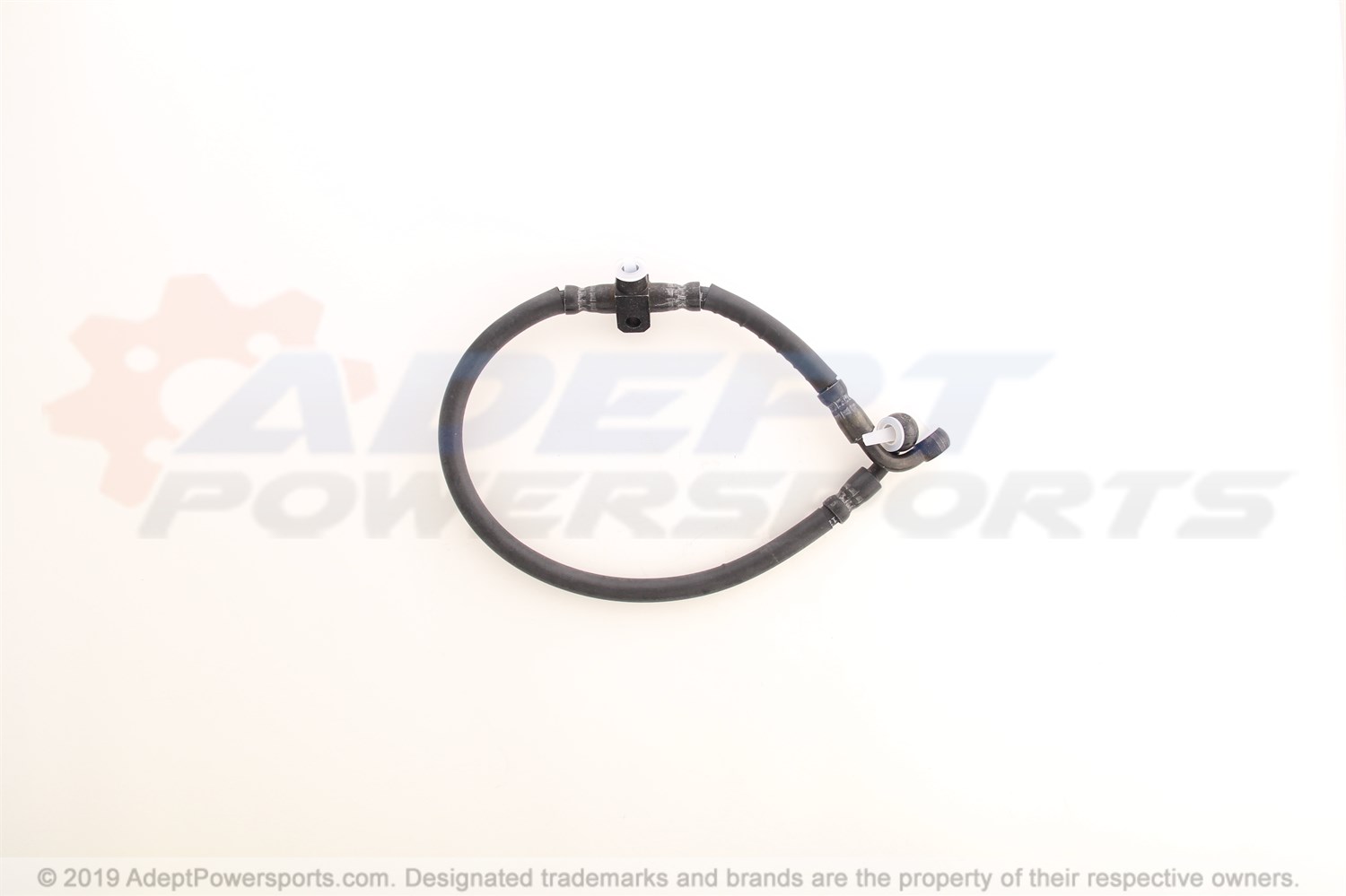

01	BRAKE HOSE - ABS Part #: 34322332447 Required per assembly: 1 Currently Not Available
02	CONNECTION PIECE Part #: 34327661754 Required per assembly: 1 Note: FOR VEHICLES WITH ABS INTEGRAL DISCONTINUED (CODE: X646A) Currently Not Available
02	ABS BRAKE PIPE BRACKET Part #: 34322332135 Required per assembly: 1 Note: NOT FOR VEHICLES WITH ABS INTEGRAL DISCONTINUED (CODE: X646A) Currently Not Available
03	ISA SCREW - M6X20-8.8 Part #: 07129901130 Required per assembly: 1 Note: NOT FOR VEHICLES WITH HP COMPONENTS (CODE: X189A) Currently Not Available
04	BYPASS CABLE Part #: 34327661752 Required per assembly: 1 Note: FOR VEHICLES WITH ABS INTEGRAL DISCONTINUED (CODE: X646A) Currently Not Available
04	SCREW PLUG - M10X1-ST-ZNS3 Part #: 07119904393 Required per assembly: 1 Note: NOT FOR VEHICLES WITH ABS INTEGRAL DISCONTINUED (CODE: X646A) Currently Not Available
04	SCREW PLUG - M10X1-ST-ZNS3 Part #: 07119904393 Required per assembly: 1 Currently Not Available
05	BRAKE HOSE Part #: 34327650207 Required per assembly: 1 Currently Not Available

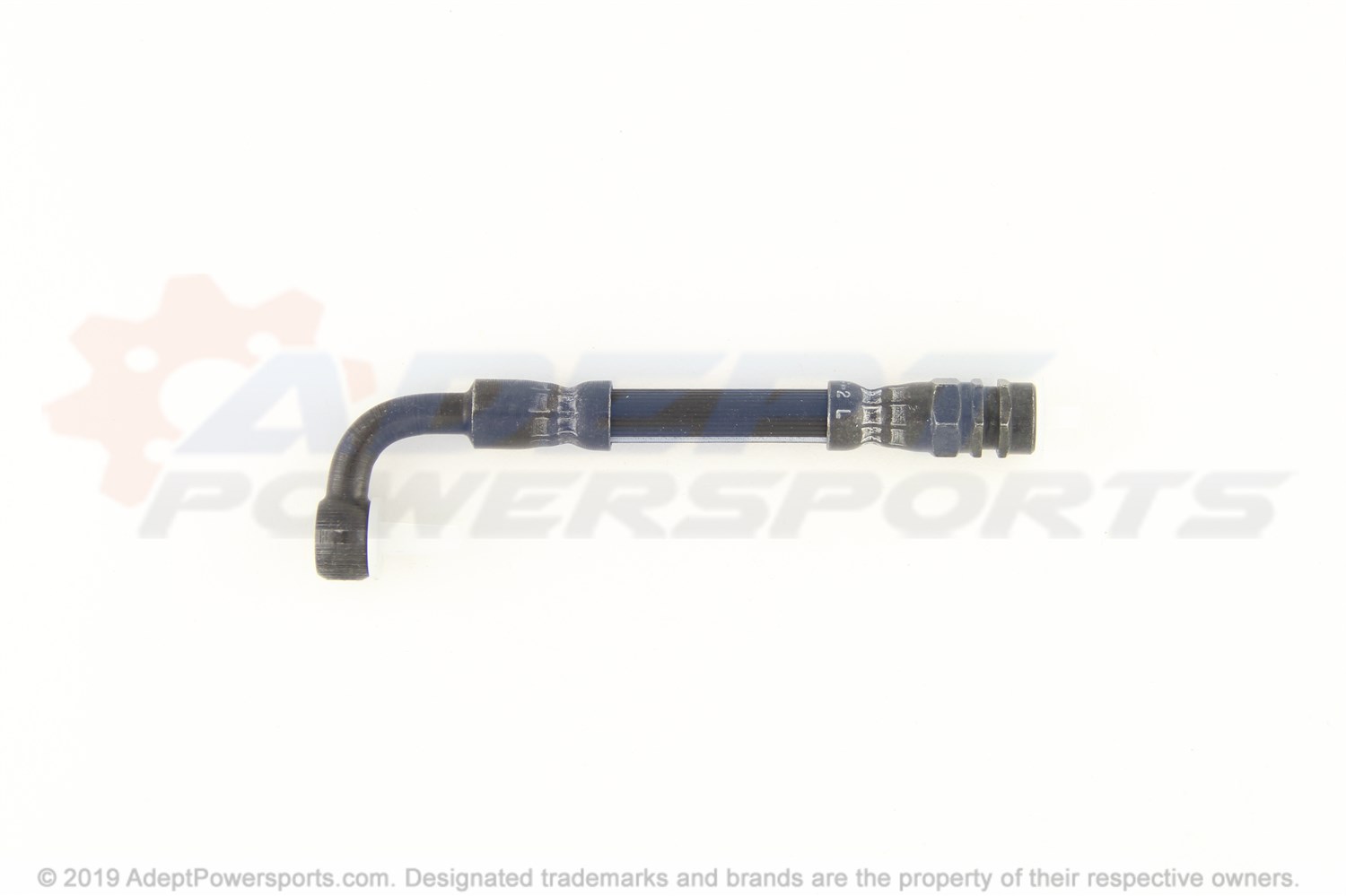

06	BRAKE PIPE Part #: 34322332596 Required per assembly: 1 Currently Not Available
07	BRAKE HOSE Part #: 34327650208 Required per assembly: 1 Currently Not Available
08	BANJO BOLT, BLACK - M10X1 Part #: 34322331540 Required per assembly: 3 Currently Not Available
09	GASKET RING - A10X13,5-CU Part #: 07119963072 Required per assembly: 8 Currently Not Available
10	VENTILATION BOLT (TO 08/06) Part #: 34327666398 Required per assembly: 1 Note: FOR VEHICLES WITH INTEGRAL ABS (CODE: X645A) Currently Not Available
11	CAP (TO 08/06) Part #: 34327666399 Required per assembly: 1 Note: FOR VEHICLES WITH INTEGRAL ABS (CODE: X645A) Currently Not Available
12	BRACKET - D=14,3 Part #: 12521733330 Required per assembly: 1 Currently Not Available
13	BRACKET RIGHT Part #: 34322330498 Required per assembly: 1 Currently Not Available
14	FILLISTER HEAD SCREW - M5X10 Part #: 34517120342 Required per assembly: 2 Not Available
15	HEX NUT - M6-8-ZNNIV SI Part #: 07129905817 Required per assembly: 2 Currently Not Available
16	WASHER - A6,4-ZNS Part #: 07119931018 Required per assembly: 2 Currently Not Available
17	BRACKET LEFT Part #: 34322330671 Required per assembly: 2 Currently Not Available
18	GROMMET Part #: 34321233159 Required per assembly: 2 Currently Not Available
