Footpeg Plate/Front Footpeg replacement parts for 2000-2004 BMW K1200RS 02-04 (K41)

OEM Parts Bmw 2000-2004 Bmw K1200RS 02 04 (K41) Footpeg Plate/Front Footpeg

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

01	FOOTREST PLATE, LEFT Part #: 46717651901 Required per assembly: 1 Currently Not Available
02	FOOTPEG PLATE RIGHT Part #: 46717651902 Required per assembly: 1 Currently Not Available
03	WAVE WASHER - D=8,4 Part #: 51162309607 Required per assembly: 6 Currently Not Available
04	FILLISTER-HEAD SCREW - M8X25-8.8-ZNS3 Part #: 07119904477 Required per assembly: 6 Not Available
05	FOOTREST, LEFT Part #: 46717652011 Required per assembly: 1 Currently Not Available
05	FOOTREST, RIGHT Part #: 46717652012 Required per assembly: 1 Currently Not Available
06	RETAINER SPRING Part #: 46712335184 Required per assembly: 2 Currently Not Available
07	PIN Part #: 46712331252 Required per assembly: 2 Currently Not Available
08	CIRCLIP - 6,0 Part #: 07119901545 Required per assembly: 2 Currently Not Available
09	FOOTREST RUBBER Part #: 46717654384 Required per assembly: 2 Currently Not Available

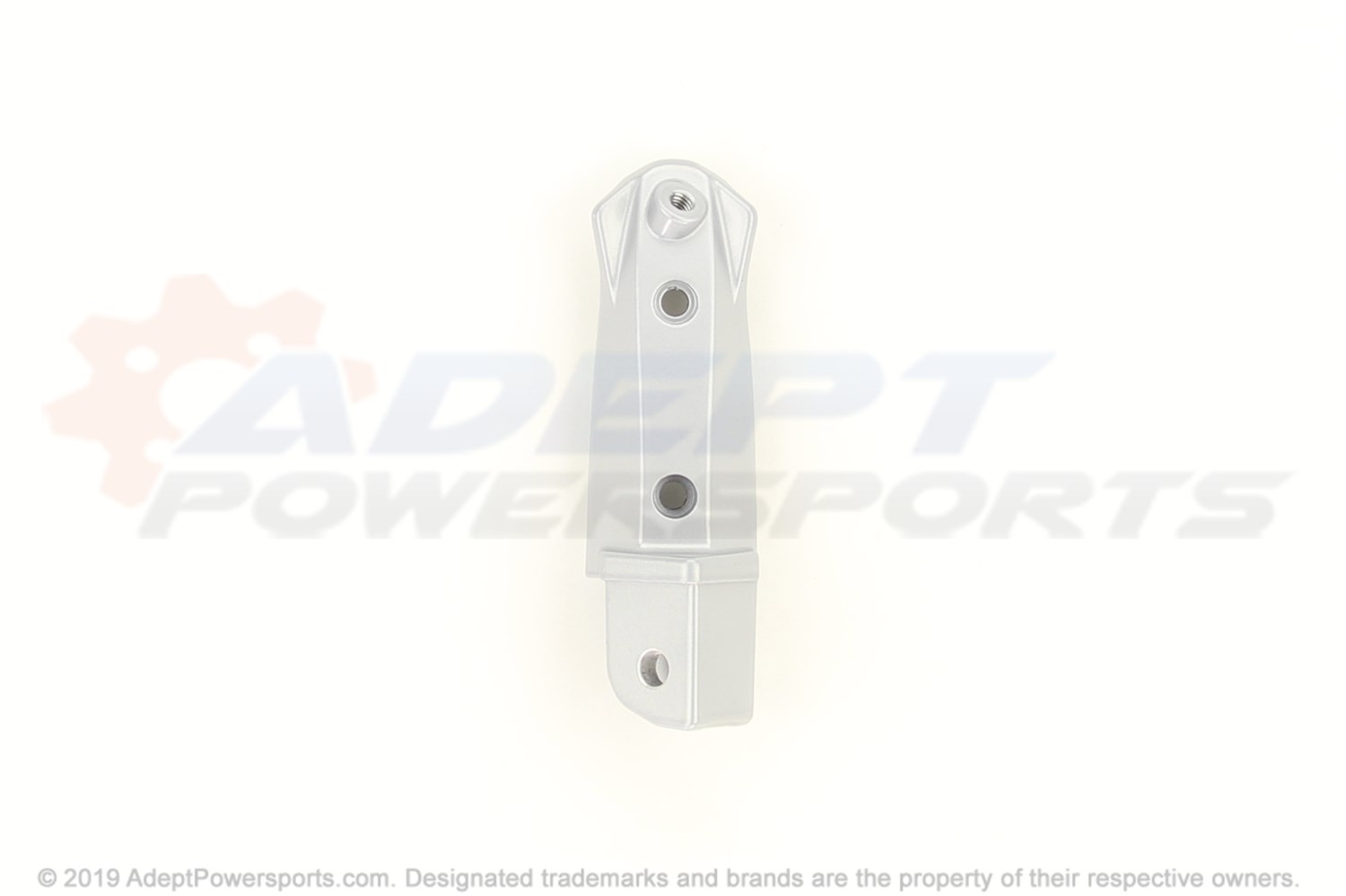

10	BRACKET Part #: 46712335185 Required per assembly: 2 Currently Not Available
11	FILLISTER-HEAD SCREW - M5X12-ZNNIV SI Part #: 07119902859 Required per assembly: 4 Currently Not Available
12	FRONT STOPPER Part #: 46712332918 Required per assembly: 2 Currently Not Available
13	SPRING NUT Part #: 51418229585 Required per assembly: 2 Currently Not Available
