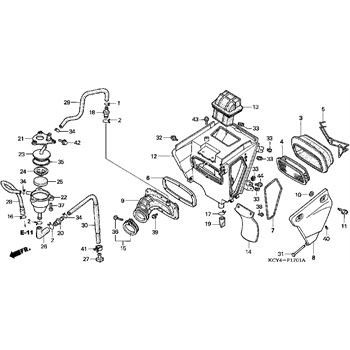

Air Cleaner (Ac) replacement parts for 2000 Honda XR400R

OEM Parts Honda 2000 Honda XR400R Air Cleaner (Ac)

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	CLIP, OIL, DRAIN, TUBE Part #: 15707-634-000 Required per assembly: 1 $6.17 $5.26 - + Add to cart
002	CLIP, OIL, DRAIN, TUBE Part #: 15771-KV6-000 Required per assembly: 2 $5.09 $4.63 - + Add to cart
003	ELEMENT, AIR, CLEANER Part #: 17213-MN1-670 Required per assembly: 1 $34.12 $27.22 - + Add to cart
004	HOLDER, ELEMENT Part #: 17214-MN1-670 Required per assembly: 1 $76.60 $63.86 - + Add to cart
005	SPRING Part #: 17216-KCZ-000 Required per assembly: 1 Not Available
006	PLATE, HOLDER Part #: 17217-KCY-670 Required per assembly: 1 Not Available
007	SEAL Part #: 17219-KCZ-000 Required per assembly: 1 $8.57 $7.33 - + Add to cart
008	LID NH1 (BLACK) Part #: 17220-KCY-671ZB Required per assembly: 1 Not Available
009	TUBE Part #: 17222-KCY-770 Required per assembly: 1 Not Available
010	WASHER Part #: 17224-KN5-670 Required per assembly: 1 $2.37 $2.19 - + Add to cart
011	STUD (6X21) Part #: 17225-KN5-671 Required per assembly: 1 $8.40 $7.30 - + Add to cart
012	HOUSING NH1 (BLACK) Part #: 17230-KCY-671ZB Required per assembly: 1 Not Available
013	DUCT, IN. Part #: 17240-KCZ-010 Required per assembly: 1 Not Available
014	SPLASH, GUARD, A/CLNR Part #: 17245-KCY-670 Required per assembly: 1 $29.28 $23.36 - + Add to cart
015	BAND, A/CLNR, TUBE Part #: 17255-KCY-670 Required per assembly: 1 Not Available
016	CLIP A Part #: 17316-MN1-670 Required per assembly: 3 $3.48 $3.16 - + Add to cart
017	CLIP, BREATHER, TUBE Part #: 17316-611-000 Required per assembly: 1 $10.71 $9.95 - + Add to cart
018	JOINT, BREATHER, TUBE Part #: 17359-MAG-L00 Required per assembly: 1 $6.33 $5.62 - + Add to cart
019	TUBE, DRAIN Part #: 17359-KK0-000 Required per assembly: 1 $7.97 $6.95 - + Add to cart
020	JOINT, BREATHER, TUBE Part #: 17359-428-000 Required per assembly: 1 $6.57 $5.81 - + Add to cart
021	STAY, BREATHER Part #: 17361-KS5-700 Required per assembly: 1 Not Available
022	BODY Part #: 17361-419-670 Required per assembly: 1 Not Available
023	CAP Part #: 17362-419-670 Required per assembly: 1 Not Available
024	HOLDER, ELEMENT Part #: 17363-419-670 Required per assembly: 1 Not Available
025	ELEMENT Part #: 17364-419-000 Required per assembly: 1 Not Available
026	TUBE, A, DRAIN Part #: 17366-KG0-000 Required per assembly: 1 Not Available
027	PLUG, BREATHER, TUBE Part #: 17370-419-700 Required per assembly: 1 $5.10 $4.64 - + Add to cart
028	TUBE, A, BREATHER Part #: 17371-KCY-770 Required per assembly: 1 Not Available
029	TUBE, BREATHER Part #: 17372-KCY-770 Required per assembly: 1 Not Available
030	TUBE, BREATHER, DRAIN Part #: 17373-KCY-770 Required per assembly: 1 Not Available
031	PIN, VISOR, HINGE Part #: 64308-GG2-000 Required per assembly: 1 $8.82 $7.63 - + Add to cart
032	BOLT, FLANGE, (6MM) Part #: 90116-ME9-000 Required per assembly: 2 $4.68 $4.25 - + Add to cart
033	NUT, CLIP, (6MM) Part #: 90311-MT3-000 Required per assembly: 5 $6.94 $6.13 - + Add to cart
034	CLIP, TUBE, (B12.5) Part #: 90651-MK3-780 Required per assembly: 3 $2.55 $2.36 - + Add to cart
035	O-RING (47X1.9) Part #: 91305-419-670 Required per assembly: 1 Not Available
036	SCREW, PAN, (4X25) Part #: 93500-04025-0G Required per assembly: 1 $1.72 $1.58 - + Add to cart
037	SCREW-WASHER (4X16) Part #: 93891-04016-07 Required per assembly: 2 $1.75 $1.61 - + Add to cart
038	SCREW, TAP, (5X16) Part #: 93903-25310 Required per assembly: 2 $1.72 $1.58 - + Add to cart
039	SCREW, TAP, (5X10) Part #: 93913-25180 Required per assembly: 6 $2.04 $1.88 - + Add to cart
040	E-RING (3MM) Part #: 94540-03010 Required per assembly: 2 $2.13 $1.97 - + Add to cart
041	CLAMP, TUBE, (D12.5) Part #: 95002-41250-04 Required per assembly: 1 $3.55 $3.23 - + Add to cart
042	BOLT, FLANGE, (6X10) Part #: 96300-06010-00 Required per assembly: 1 $1.98 $1.83 - + Add to cart
043	BOLT, FLANGE, (6X12) Part #: 96300-06012-00 Required per assembly: 1 $1.98 $1.83 - + Add to cart
044	BOLT, FLANGE, (6X16) Part #: 96300-06016-00 Required per assembly: 1 $1.98 $1.83 - + Add to cart
