Camshaft replacement parts for 2000 Honda XR400R

OEM Parts Honda 2000 Honda XR400R Camshaft

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	SEAL, VALVE, STEM Part #: 12209-KL4-005 Required per assembly: 4 $9.37 $8.10 - + Add to cart
002	CAMSHAFT ASSEMBLY Part #: 14000-KCY-670 Required per assembly: 1 Not Available
003	CAM, REVERSE Part #: 14102-MN1-670 Required per assembly: 1 $72.45 $60.42 - + Add to cart
004	PLATE Part #: 14105-KCY-670 Required per assembly: 1 $64.17 $51.94 - + Add to cart
005	SPRING, DECOMP Part #: 14106-MN1-670 Required per assembly: 1 $4.28 $3.89 - + Add to cart
006	CLUTCH, DECOMP Part #: 14121-KAS-900 Required per assembly: 1 $79.50 $64.37 - + Add to cart
007	SPRING, ROLLER Part #: 14122-KV2-940 Required per assembly: 3 $5.78 $5.18 - + Add to cart
008	FLANGE, CAM, SPROCKET Part #: 14325-KV2-942 Required per assembly: 1 $44.94 $36.38 - + Add to cart

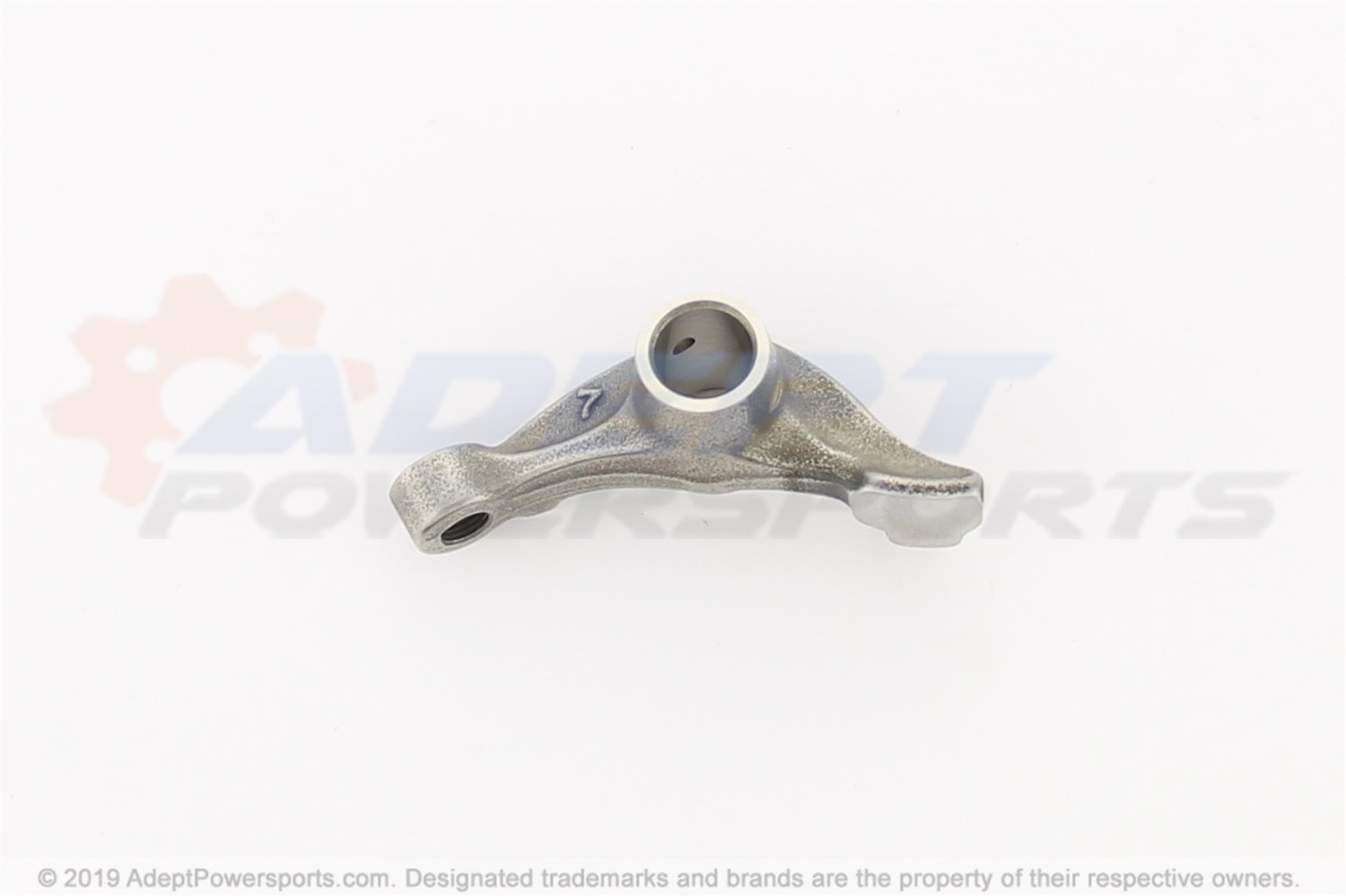

009	ARM, A, ROCKER Part #: 14411-KCY-670 Required per assembly: 2 $60.31 $50.29 - + Add to cart
010	ARM, B, ROCKER Part #: 14421-KCY-670 Required per assembly: 1 $60.31 $50.29 - + Add to cart
011	ARM, C, ROCKER Part #: 14431-KCY-670 Required per assembly: 1 $60.31 $48.82 - + Add to cart
012	ARM Part #: 14445-KF0-000 Required per assembly: 2 $36.43 $30.38 - + Add to cart
013	ARM, L. Part #: 14446-KF0-000 Required per assembly: 1 $38.63 $31.26 - + Add to cart
014	ARM, R. Part #: 14447-KF0-000 Required per assembly: 1 $38.63 $31.26 - + Add to cart
015	BOLT Part #: 14451-MBV-000 Required per assembly: 2 $34.69 $28.93 - + Add to cart
016	SHAFT A Part #: 14455-KCY-670 Required per assembly: 2 $29.77 $24.82 - + Add to cart
017	SHAFT B Part #: 14456-KCY-670 Required per assembly: 2 $44.68 $37.24 - + Add to cart

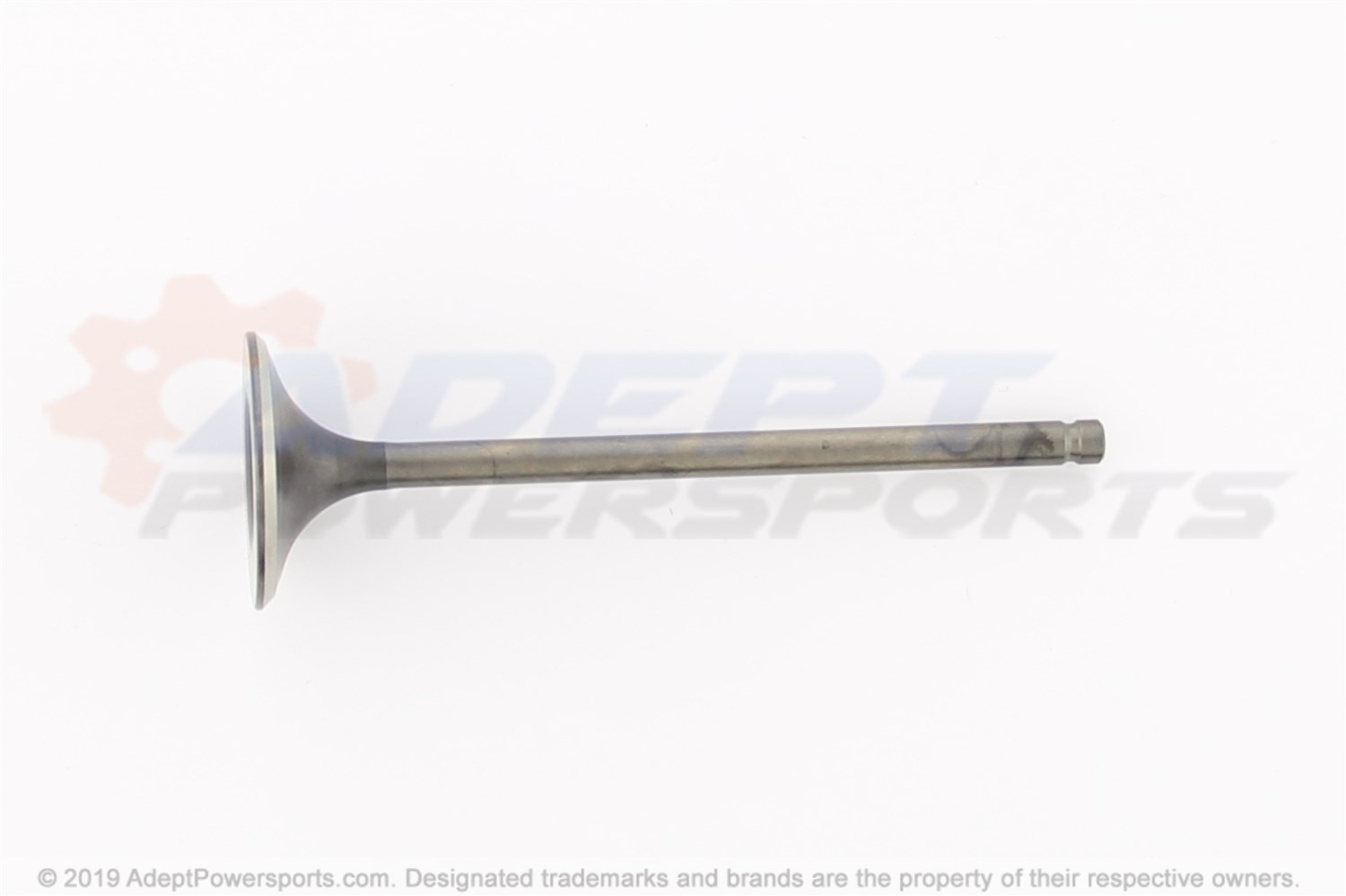

018	VALVE, IN. Part #: 14711-KCY-670 Required per assembly: 2 $38.90 $32.44 - + Add to cart
019	VALVE, EX. Part #: 14721-KCY-670 Required per assembly: 2 $72.21 $60.20 - + Add to cart
020	SPRING, VALVE Part #: 14751-KCY-670 Required per assembly: 4 $10.92 $10.59 - + Add to cart
021	SPRING, VALVE Part #: 14761-KG0-003 Required per assembly: 4 $7.71 $6.74 - + Add to cart
022	RETAINER, VLV, SPR Part #: 14771-107-020 Required per assembly: 4 $9.10 $8.27 - + Add to cart
023	SEAT, VALVE, SPRING Part #: 14775-KCY-670 Required per assembly: 4 $6.94 $6.13 - + Add to cart
024	COTTER, VALVE Part #: 14781-HA0-770 Required per assembly: 8 $4.79 $4.35 - + Add to cart

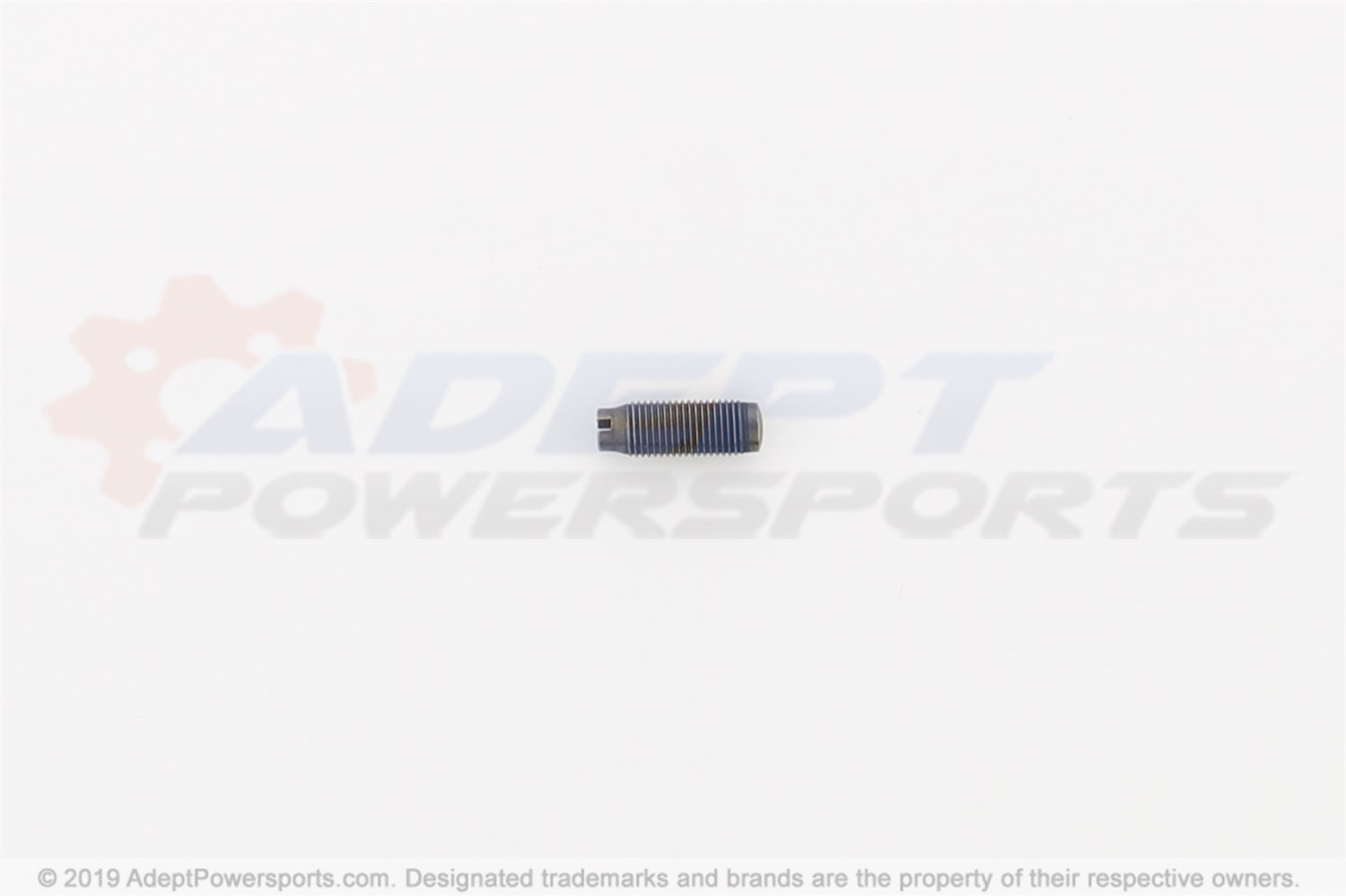

025	SCREW, TAPPET, ADJ Part #: 90012-MG3-000 Required per assembly: 4 $11.46 $9.77 - + Add to cart
026	NUT, TAPPET, ADJ Part #: 90206-590-000 Required per assembly: 6 $5.80 $5.62 - + Add to cart
027	WASHER (17X22X0.75) Part #: 90401-MN1-670 Required per assembly: 1 $4.38 - + Add to cart
028	WASHER, WAVE Part #: 90406-KF0-003 Required per assembly: 4 $4.10 $3.73 - + Add to cart
029	WASHER (14MM) Part #: 90544-KF0-000 Required per assembly: 4 $4.58 $4.16 - + Add to cart
030	WASHER (12MM) Part #: 90545-KF0-000 Required per assembly: 2 $3.91 $3.05 - + Add to cart
031	PIN, DOWEL, (10X18) Part #: 90701-KF0-000 Required per assembly: 2 $5.76 $5.17 - + Add to cart
032	BEARING (18X37X9) Part #: 91002-MN1-671 Required per assembly: 1 $46.43 $38.72 - + Add to cart
033	BEARING (6904) Part #: 91003-KF0-008 Required per assembly: 1 $16.46 $13.72 - + Add to cart
034	ROLLER Part #: 91101-KV2-940 Required per assembly: 3 $4.05 - + Add to cart
035	ROLLER (4X9) Part #: 96220-40090 Required per assembly: 1 $1.52 $1.39 - + Add to cart
