Swingarm replacement parts for 2002 Honda XR400R

OEM Parts Honda 2002 Honda XR400R Swingarm

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	CHAIN, DRIVE Part #: 40530-KCY-672 Required per assembly: 1 Not Available
001	CHAIN, DRIVE Part #: 40530-KCY-672 Required per assembly: 1 Not Available
002	MASTER LINK Part #: 40531-KCY-672 Required per assembly: 1 $6.33 $5.53 - + Add to cart
002	MASTER LINK Part #: 40531-MN1-672 Required per assembly: 1 $7.97 $6.95 - + Add to cart
003	WASHER, R., RR. Part #: 42307-KT1-770 Required per assembly: 1 Not Available
004	WASHER, L., RR. Part #: 42308-KT1-770 Required per assembly: 1 $33.64 $26.83 - + Add to cart
006	GUIDE, BRAKE, HOSE Part #: 43468-KFB-000 Required per assembly: 1 $5.94 $5.31 - + Add to cart
007	COLLAR, SWINGARM Part #: 52141-HN1-000 Required per assembly: 2 $17.90 $14.94 - + Add to cart
008	CAP, DUST, SEAL Part #: 52144-KR8-005 Required per assembly: 2 $15.67 $13.06 - + Add to cart
009	GUIDE, CHAIN Part #: 52146-KT1-770 Required per assembly: 1 $43.48 $36.25 - + Add to cart

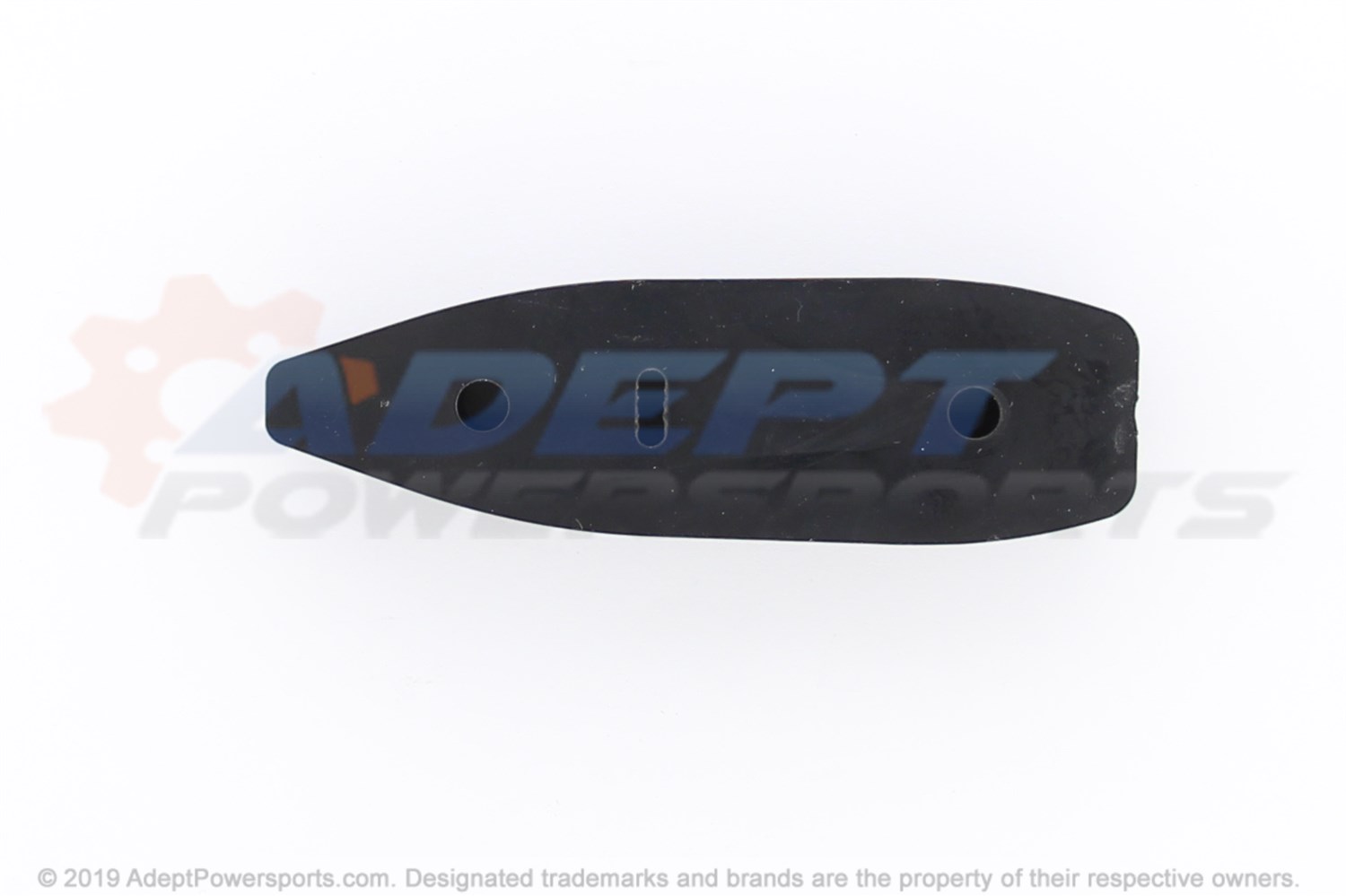

010	SLIDER, CHAIN, GUIDE Part #: 52147-KN5-005 Required per assembly: 1 $17.00 $14.17 - + Add to cart
011	PIN, CHAIN, ADJUSTER Part #: 52156-KV6-000 Required per assembly: 2 $12.36 $10.01 - + Add to cart
012	ROLLER, CHAIN Part #: 52158-HC0-000 Required per assembly: 1 $13.73 $11.44 - + Add to cart
013	COLLAR, CHAIN, ROLLER Part #: 52159-467-000 Required per assembly: 1 $13.40 $11.17 - + Add to cart
014	SLIDER, CHAIN Part #: 52170-MN1-681 Required per assembly: 1 $66.86 $55.74 - + Add to cart
015	WASHER, CHAIN, SLIDER Part #: 52171-KR6-000 Required per assembly: 2 $3.61 $3.28 - + Add to cart
016	SWINGARM, SUB, RR. Part #: 52200-KCY-670 Required per assembly: 1 Not Available
017	BOLT, FLANGE, (6X16) Part #: 90103-MY6-670 Required per assembly: 2 $5.09 $4.63 - + Add to cart
018	SCREW, PAN, (5X10) Part #: 90104-ML7-920 Required per assembly: 2 $4.11 $3.74 - + Add to cart
019	SCREW, PAN, (5X8) Part #: 90115-KV3-700 Required per assembly: 2 $3.64 $3.31 - + Add to cart
020	BOLT, SWINGARM, PIVOT Part #: 90121-KAE-000 Required per assembly: 1 $60.75 $58.93 - + Add to cart
021	SCREW, FLAT, (5X4) Part #: 90124-KA3-711 Required per assembly: 4 $6.74 $5.95 - + Add to cart
022	NUT, U, (14MM) Part #: 90305-GE8-003 Required per assembly: 1 $5.24 $4.76 - + Add to cart
023	BEARING (20X26X12) Part #: 91051-V19-003 Required per assembly: 1 $23.82 $19.29 - + Add to cart
024	DUST SEAL Part #: 91254-KS6-003 Required per assembly: 6 $10.65 $9.13 - + Add to cart
025	SCREW, FLAT, (6X45) Part #: 93600-06045-0A Required per assembly: 2 $1.98 $1.83 - + Add to cart
026	NUT, U, (6MM) Part #: 90301-473-003 Required per assembly: 1 $5.46 $4.96 - + Add to cart
027	BOLT, FLANGE, (8X35) Part #: 96400-08035-00 Required per assembly: 2 $2.52 $2.33 - + Add to cart
