Fork Slider/Lower Fork Bridge replacement parts for 2003-2007 BMW R1200ST (K28)

OEM Parts Bmw 2003-2007 Bmw R1200ST (K28) Fork Slider/Lower Fork Bridge

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

01	LEFT FORK SLIDER (TO 08/06) Part #: 31427670277 Required per assembly: 1 Currently Not Available
01	LEFT FORK SLIDER (FROM 08/06) Part #: 31427699191 Required per assembly: 1 Note: FOR VEHICLES WITH I-ABS GENERATION 2 (CODE: X630A) Currently Not Available
02	RIGHT FORK SLIDER Part #: 31427670278 Required per assembly: 1 Currently Not Available
03	GUIDE BUSH Part #: 31427666227 Required per assembly: 4 Currently Not Available
04	SHIM Part #: 31427666226 Required per assembly: 2 Currently Not Available
05	GASKET RING Part #: 31427666225 Required per assembly: 2 Currently Not Available

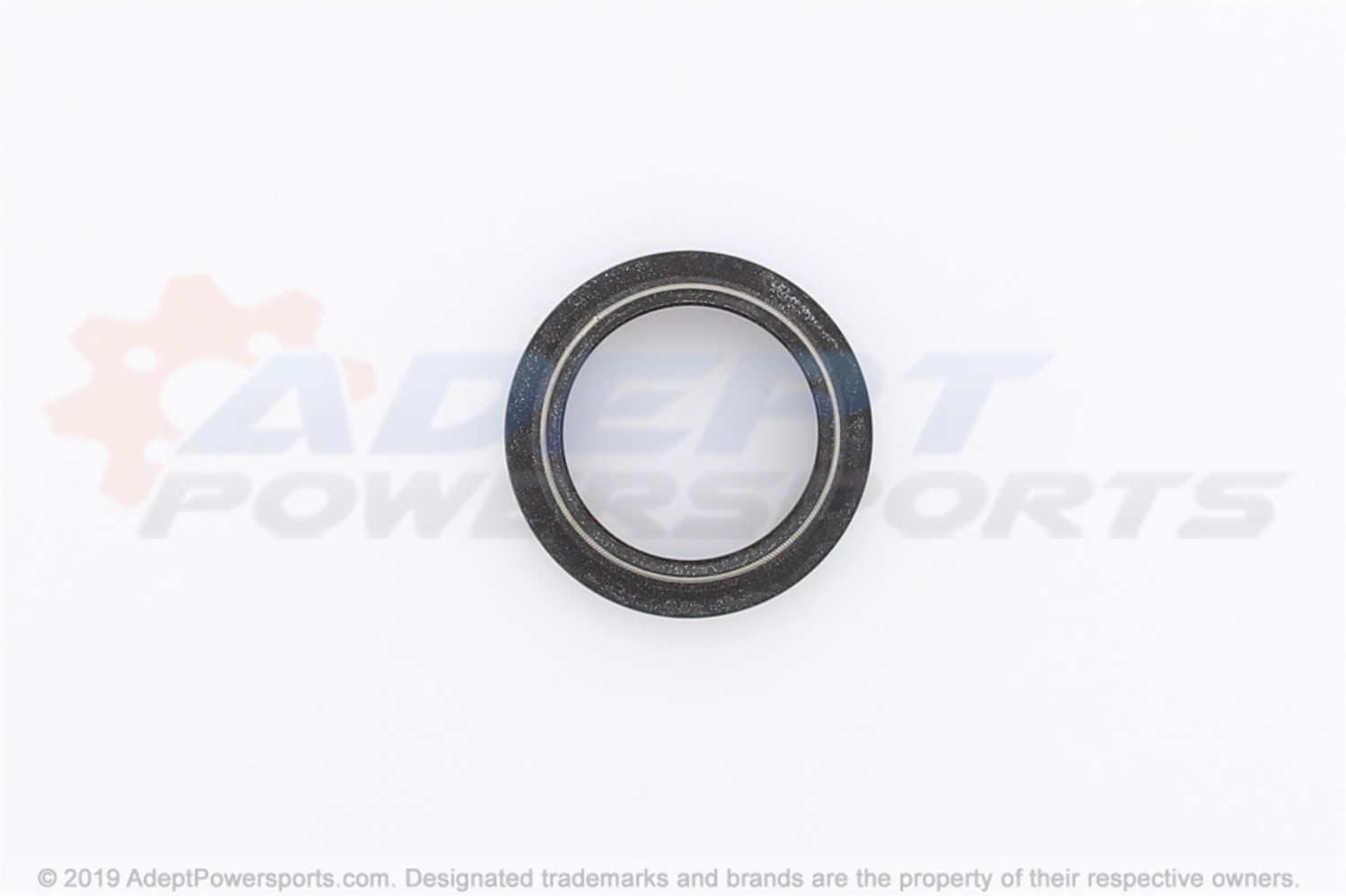

06	SUPPORTING RING Part #: 31427666224 Required per assembly: 2 Currently Not Available

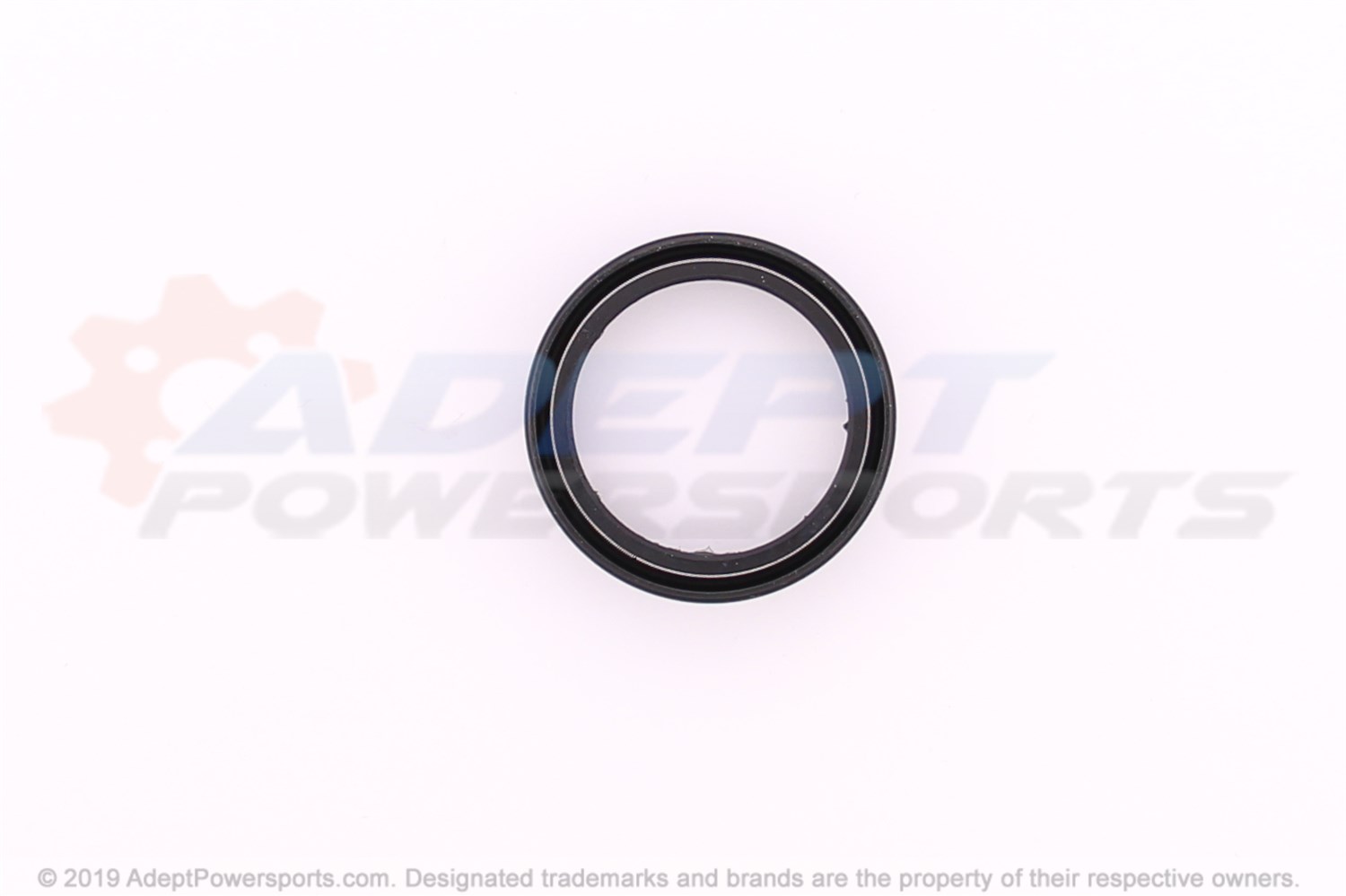

07	DUST PROTECTION COLLAR - D=41MM Part #: 31427666223 Required per assembly: 2 Currently Not Available
08	ISA SCREW - M8X35 Part #: 07129904068 Required per assembly: 2 Currently Not Available
09	FORK BRIDGE, BOTTOM, WITH MOUNTING Part #: 31427669921 Required per assembly: 1 Currently Not Available
10	BALL JOINT Part #: 31427652644 Required per assembly: 1 Currently Not Available
11	COLLAR NUT - M14X1,5 Part #: 31422330996 Required per assembly: 1 Currently Not Available
12	COVER, BLACK Part #: 31422314711 Required per assembly: 1 Note: FOR VEHICLES WITH PACKAGE AVANTGARDE (CODE: X592A) Currently Not Available
13	ISA SCREW - M8X25 Part #: 07129904477 Required per assembly: 4 Currently Not Available
