Headlight replacement parts for 2003-2007 BMW R1200ST (K28)

OEM Parts Bmw 2003-2007 Bmw R1200ST (K28) Headlight

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

01	HEADLIGHT - MAGNESIUM Part #: 63127672407 Required per assembly: 1 Currently Not Available
01	HEADLIGHT - WHITEALU 3 Part #: 63127705516 Required per assembly: 1 Currently Not Available
02	LONGLIFE BULB - 5W Part #: 63217160797 Required per assembly: 1 Note: ONLY IN CONJUNCTION WITH Currently Not Available
03	BULB - H4 Part #: 63121354619 Required per assembly: 2 Note: NOT FOR VEHICLES WITH AUTHORITIES FRANCE R65GS (CODE: X105A) Currently Not Available
04	GASKET RING Part #: 63127697706 Required per assembly: 2 Currently Not Available

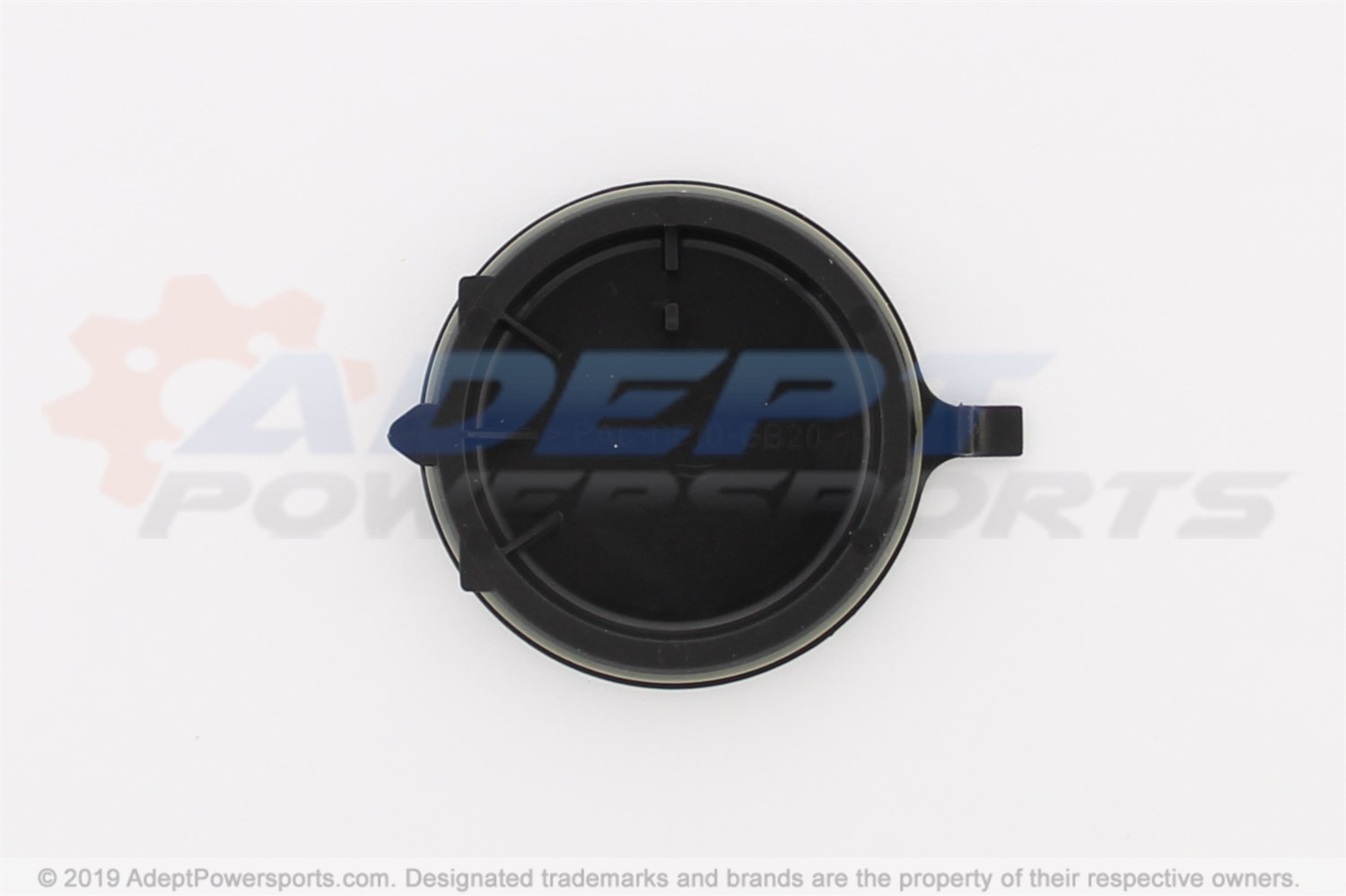

05	HEADLIGHT COVER Part #: 63127698286 Required per assembly: 2 Currently Not Available
06	SET: OF COVERS - MAGNESIUM Part #: 63127697805 Required per assembly: 1 Currently Not Available
06	SET: OF COVERS - WHITEALU 3 Part #: 63127705527 Required per assembly: 1 Currently Not Available
