Front Brake Master Cylinder replacement parts for 2003 Honda VTX1300S

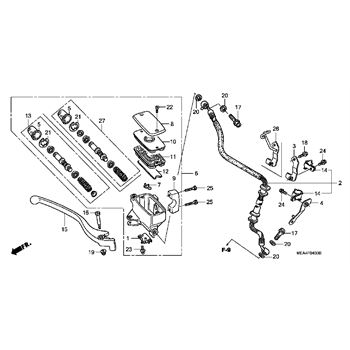

OEM Parts Honda 2003 Honda VTX1300S Front Brake Master Cylinder

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	SWITCH, FR., STOP Part #: 35340-MM5-600 Required per assembly: 1 $26.04 $20.76 - + Add to cart
002	HOSE, FR., BRAKE Part #: 45126-MEA-672 Required per assembly: 1 $50.00 $44.66 - + Add to cart
003	CLAMP, FR. Part #: 45137-MEA-671 Required per assembly: 1 $5.65 $5.42 - + Add to cart
004	BRAKET, FR., HOSE, CLIP Part #: 45138-MEM-670 Required per assembly: 1 $4.05 - + Add to cart
005	BOOT Part #: 45504-410-003 Required per assembly: 1 $14.10 $11.76 - + Add to cart
006	M/CYL, SUB-ASSEMBLY, FR. Part #: 45510-MFR-305 Required per assembly: 1 $289.61 $234.42 - + Add to cart
007	PROTECTOR Part #: 45512-MA6-006 Required per assembly: 1 $5.68 $5.16 - + Add to cart
008	CAP, MASTER, CYLINDER Part #: 45513-MR1-016 Required per assembly: 1 $35.49 $29.58 - + Add to cart
009	HOLDER Part #: 45517-MR1-671 Required per assembly: 1 $31.58 $26.33 - + Add to cart
010	PLATE, DIAPHRAGM Part #: 45518-MM5-006 Required per assembly: 1 $12.35 $10.30 - + Add to cart
011	DIAPHRAGM Part #: 45520-MM5-006 Required per assembly: 1 $17.53 $14.60 - + Add to cart
012	FLOAT, FR. Part #: 45523-MN5-006 Required per assembly: 1 $5.41 $4.86 - + Add to cart
013	MASTER CYLINDER SET Part #: 45530-471-831 Required per assembly: 1 $48.07 $38.34 - + Add to cart
014	CLAMP, BRAKE, HOSE Part #: 52115-ML8-670 Required per assembly: 2 $5.92 $5.30 - + Add to cart
015	LEVER, R., HANDLEBAR, (COO) Part #: 53175-MFR-305 Required per assembly: 1 $21.74 $18.13 - + Add to cart
016	BOLT Part #: 90114-MA5-671 Required per assembly: 1 $10.93 $9.35 - + Add to cart
017	BOLT, OIL, (10X22) Part #: 90145-MS9-612 Required per assembly: 2 $8.20 $7.84 - + Add to cart
018	BOLT, FLANGE, (6X12) Part #: 90181-KV3-700 Required per assembly: 7 $2.55 $2.36 - + Add to cart
019	NUT, CAP, (6MM) Part #: 90201-415-000 Required per assembly: 1 $3.11 $2.90 - + Add to cart
020	WASHER, OIL, BOLT Part #: 90545-300-000 Required per assembly: 4 $4.80 $4.09 - + Add to cart
021	CIRCLIP Part #: 90651-MA5-671 Required per assembly: 1 $3.19 $2.51 - + Add to cart
022	SCREW, FLAT, (4X12) Part #: 93600-04012-1A Required per assembly: 2 $1.68 $1.55 - + Add to cart
023	SCREW-WASHER (4X12) Part #: 93893-04012-07 Required per assembly: 1 $2.37 $2.19 - + Add to cart
024	BOLT, FLANGE, (6X10) Part #: 96001-06010-07 Required per assembly: 2 $2.63 $2.44 - + Add to cart
025	BOLT, SOCKET, (6X22) Part #: 96600-06022-10 Required per assembly: 2 $3.07 $2.86 - + Add to cart
