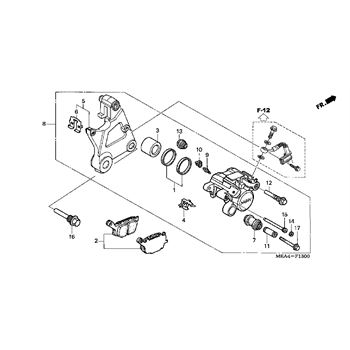

Rear Brake Caliper replacement parts for 2003 Honda VTX1300S

OEM Parts Honda 2003 Honda VTX1300S Rear Brake Caliper

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	SEAL, SET, PISTON Part #: 06451-443-405 Required per assembly: 1 $15.34 $12.79 - + Add to cart
002	PAD, SET, RR. Part #: 43105-MW0-425 Required per assembly: 1 $62.88 $50.14 - + Add to cart
003	PISTON Part #: 43107-KT7-761 Required per assembly: 1 $43.88 $36.60 - + Add to cart
004	SPRING, PAD Part #: 43108-KT7-761 Required per assembly: 1 $10.06 $8.63 - + Add to cart
005	BRACKET, RR. Part #: 43110-MEA-672 Required per assembly: 1 Not Available
006	RETAINER Part #: 43112-MV9-016 Required per assembly: 1 $12.35 $10.30 - + Add to cart
007	BOOT, SLEEVE Part #: 43132-KT7-761 Required per assembly: 2 $9.87 $8.49 - + Add to cart
008	CALIPER SUB-ASSEMBLY Part #: 43150-MEA-672 Required per assembly: 1 $162.49 $129.59 - + Add to cart
009	SCREW, BLEEDER Part #: 43352-HC5-971 Required per assembly: 1 $5.61 $5.10 - + Add to cart
010	CAP, BLEEDER Part #: 43353-461-771 Required per assembly: 1 $6.07 $5.42 - + Add to cart
011	SLEEVE Part #: 45111-MA3-006 Required per assembly: 2 $15.50 $12.93 - + Add to cart
012	BOLT, PIN Part #: 45131-MN9-006 Required per assembly: 1 $18.51 $15.43 - + Add to cart
013	BOOT B Part #: 45133-MA3-006 Required per assembly: 1 $6.57 $5.81 - + Add to cart
014	PLUG, PIN Part #: 45203-MG3-016 Required per assembly: 1 $6.15 $5.47 - + Add to cart
015	PIN, HANGER Part #: 45215-ML7-922 Required per assembly: 1 $12.36 $10.31 - + Add to cart
016	BOLT, BRAKE, STOPPER Part #: 90158-MZ0-000 Required per assembly: 1 $30.34 $25.30 - + Add to cart
017	BOLT, FLANGE, (8X49) Part #: 90180-MN8-006 Required per assembly: 2 $7.29 $6.40 - + Add to cart
