Handlebar replacement parts for 2004 Kawasaki Prairie 360 (KVF360-B2)

OEM Parts Kawasaki 2004 Kawasaki Prairie 360 (KVF360 B2) Handlebar

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

112	BOLT-UPSET, 6X14 Part #: 112AA0614 Required per assembly: 1 Note: Sold in multiples of 5 only $0.54 $0.51 - + Add to cart
220	SCREW-PAN-CROSS, 5X30 Part #: 220AB0530 Required per assembly: 2 Note: Sold in multiples of 5 only $0.81 $0.71 - + Add to cart
220A	SCREW-PAN-CROSS, 5X35 Part #: 220AB0535 Required per assembly: 2 Note: Sold in multiples of 5 only $2.13 $1.57 - + Add to cart
220B	SCREW-PAN-CROSS, 4X16 Part #: 220AB0416 Required per assembly: 2 Note: Sold in multiples of 5 only $1.88 $1.40 - + Add to cart
220C	SCREW-PAN-CROSS, 6X30 Part #: 220AB0630 Required per assembly: 1 $1.97 $1.48 - + Add to cart
223	SCREW-PAN-WS-CROS, 5X12 Part #: 223AB0512 Required per assembly: 1 $4.44 $3.49 - + Add to cart
312	NUT-HEX, 6MM, BLACK Part #: 312AB0600 Required per assembly: 1 $4.04 $3.20 - + Add to cart
411	WASHER-PLAIN-SMALL Part #: 410AA0600 Required per assembly: 1 Note: Sold in multiples of 5 only $1.38 $1.08 - + Add to cart
461	WASHER-SPRING, 6MM Part #: 461DA0600 Required per assembly: 1 $0.69 - + Add to cart
11045	BRACKET, HANDLE, COVER Part #: 11045-1925 Required per assembly: 1 $7.92 $6.86 - + Add to cart
11050	BRACKET, HANDLE, COVER, LH Part #: 11050-1727 Required per assembly: 1 $17.86 $14.91 - + Add to cart
13168	LEVER, LH Part #: 13168-1672 Required per assembly: 1 $36.80 $33.97 - + Add to cart

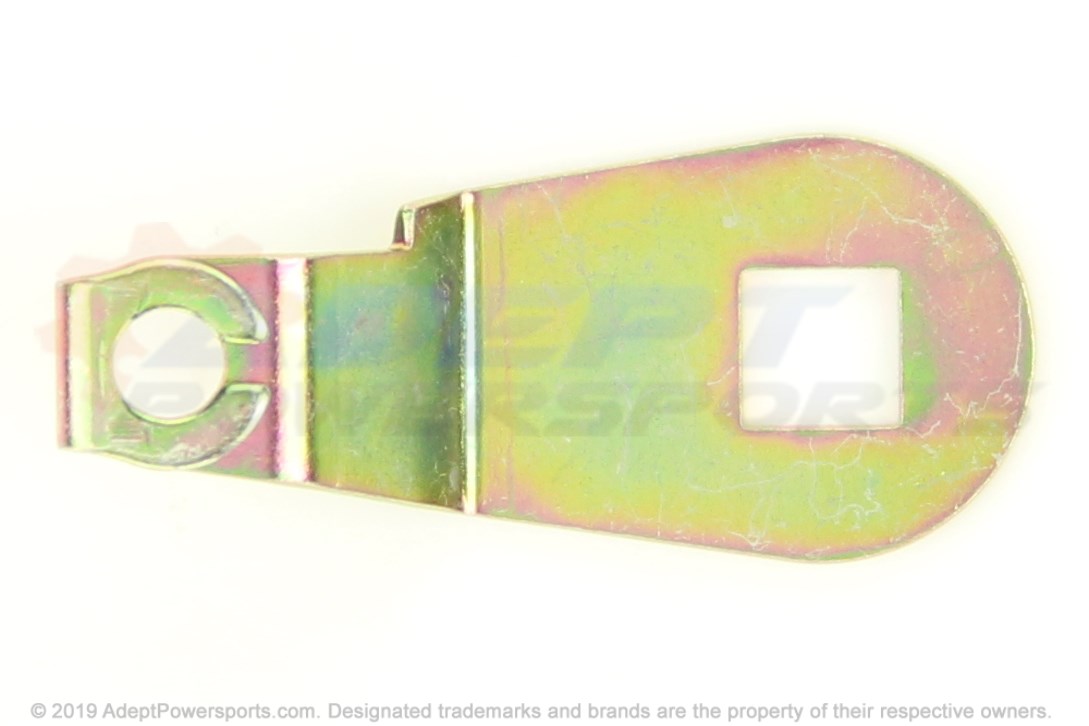

13271	PLATE, LEVER, LOCK Part #: 13272-3827 Required per assembly: 1 $16.91 $14.11 - + Add to cart
13271A	PLATE, LOCK Part #: 13271-1259 Required per assembly: 1 $18.08 $15.11 - + Add to cart
14090	COVER, BLIND, CAP, F.BLACK Part #: 14090-1945-6Z Required per assembly: 1 $16.96 $14.14 - + Add to cart
39074	LEVER, ASSEMBLY, THROTTLE Part #: 39074-0012 Required per assembly: 1 $80.61 $74.15 - + Add to cart
39075	LEVER-THROTTLE, ARM Part #: 39075-1054 Required per assembly: 1 Not Available
39075A	LEVER-THROTTLE Part #: 39075-0030 Required per assembly: 1 Not Available
46003	HANDLE Part #: 46003-7503 Required per assembly: 1 $82.70 - + Add to cart
46012	HOLDER-HANDLE Part #: 46012-1168 Required per assembly: 2 $16.73 $14.00 - + Add to cart
46012A	HOLDER-HANDLE Part #: 46012-7501 Required per assembly: 2 $30.66 $27.99 - + Add to cart
46075	GRIP, HANDLE Part #: 46075-7501 Required per assembly: 2 $20.11 $16.71 - + Add to cart
46076	LEVER, ASSY, GRIP, LH Part #: 46076-0178 Required per assembly: 1 $55.99 $50.89 - + Add to cart
46091	HOUSING, ASSEMBLY, CONTROL, LH Part #: 46091-1848 Required per assembly: 1 $233.64 $229.91 - + Add to cart
46092	LEVER-GRIP, CHOKE Part #: 46092-1217 Required per assembly: 1 $5.62 $4.37 - + Add to cart
49006	BOOT Part #: 49006-1261 Required per assembly: 1 Not Available
59441	COVER-HANDLE, F.BLACK Part #: 59441-7501-6Z Required per assembly: 1 Not Available
92009	SCREW, CABLE, ADJUST, 8MM Part #: 46055-003 Required per assembly: 1 $16.73 $14.00 - + Add to cart
92009A	SCREW, 6X20 Part #: 92009-1841 Required per assembly: 2 $6.63 $5.09 - + Add to cart
92015	NUT, LOCK, 10MM Part #: 92015-1429 Required per assembly: 2 $7.05 $5.42 - + Add to cart
92015A	NUT, CABLE, ADJUST, LOCK, 8MM Part #: 46056-005 Required per assembly: 1 $9.10 $7.83 - + Add to cart
92015B	NUT, LOCK, 6MM Part #: 92019-008 Required per assembly: 1 $4.35 $3.28 - + Add to cart
92022	WASHER, 5MM Part #: 92022-1837 Required per assembly: 1 $3.45 $2.43 - + Add to cart
92022A	WASHER, WAVE, 5MM Part #: 92022-1838 Required per assembly: 1 $3.45 $2.43 - + Add to cart
92081	SPRING, LOCK, RETURN Part #: 92081-1358 Required per assembly: 1 $5.61 $4.36 - + Add to cart
92143	COLLAR Part #: 92143-1138 Required per assembly: 2 $3.67 $2.86 - + Add to cart
92143A	COLLAR, 5.6X8X7 Part #: 92143-1336 Required per assembly: 2 $1.30 $1.02 - + Add to cart
92150	BOLT Part #: 92153-1919 Required per assembly: 1 $17.58 $14.70 - + Add to cart
92151	BOLT, FLANGED, 8X40 Part #: 92151-2130 Required per assembly: 4 $1.87 $1.39 - + Add to cart
92152	COLLAR Part #: 92152-1176 Required per assembly: 1 $4.43 $3.49 - + Add to cart
92171	CLAMP, CLIP Part #: 92171-1095 Required per assembly: 1 $3.18 $2.26 - + Add to cart
92171A	CLAMP, HARNESS&CABLE Part #: 92171-1503 Required per assembly: 1 $21.58 $18.05 - + Add to cart
92172	SCREW, 5X20 Part #: 92172-0078 Required per assembly: 1 $2.89 $2.08 - + Add to cart
92200	WASHER, 4.5X11.5X0.8 Part #: 92200-1361 Required per assembly: 2 $4.51 $3.56 - + Add to cart
