Swingarm replacement parts for 2004 Kawasaki Prairie 360 (KVF360-B2)

OEM Parts Kawasaki 2004 Kawasaki Prairie 360 (KVF360 B2) Swingarm

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

130	BOLT-FLANGED, 8X22 Part #: 130BB0822 Required per assembly: 2 $2.43 $1.77 - + Add to cart
130A	BOLT-FLANGED, 10X55 Part #: 130CA1055 Required per assembly: 10 $3.37 $2.39 - + Add to cart
132	BOLT-FLANGED-SMALL, 6X40 Part #: 132BA0640 Required per assembly: 1 $4.58 $3.60 - + Add to cart
670	O, RING, 16MM Part #: 670B2016 Required per assembly: 2 Note: Sold in multiples of 10 only $1.42 $1.09 - + Add to cart
11051	BRACKET, CABLE Part #: 11051-1762 Required per assembly: 1 $10.13 $8.63 - + Add to cart
11061	GASKET, SWING, ARM Part #: 11061-1065 Required per assembly: 1 $49.99 $45.68 - + Add to cart
14091	COVER Part #: 14091-7508 Required per assembly: 1 Not Available
33001	ARM-COMP-SWING Part #: 33001-7502 Required per assembly: 1 Not Available
33032	SHAFT-SWING, ARM, LEFT, SIDE Part #: 33032-1197 Required per assembly: 1 $41.07 $37.75 - + Add to cart
33032A	SHAFT-SWING, ARM, RIGHT, SIDE Part #: 33032-1200 Required per assembly: 1 $41.07 $37.75 - + Add to cart
41053	LEVER-BRAKE CAM Part #: 41053-1094 Required per assembly: 1 $56.05 $51.05 - + Add to cart
41072	NUT, 6MM Part #: 41072-007 Required per assembly: 1 $4.04 $3.20 - + Add to cart
92009	SCREW Part #: 92009-1166 Required per assembly: 3 $5.66 $4.40 - + Add to cart
92009A	SCREW, 4X10 Part #: 92009-1936 Required per assembly: 2 Note: Sold in multiples of 5 only $2.02 $1.51 - + Add to cart
92015	NUT, 22MM Part #: 92015-1229 Required per assembly: 1 $10.56 $9.00 - + Add to cart
92043	PIN, 8X14 Part #: 92043-1567 Required per assembly: 2 $2.34 $1.71 - + Add to cart
92045	BEARING-BALL, TMBO/28C3 Part #: 92045-1427 Required per assembly: 1 $32.89 $30.50 - + Add to cart

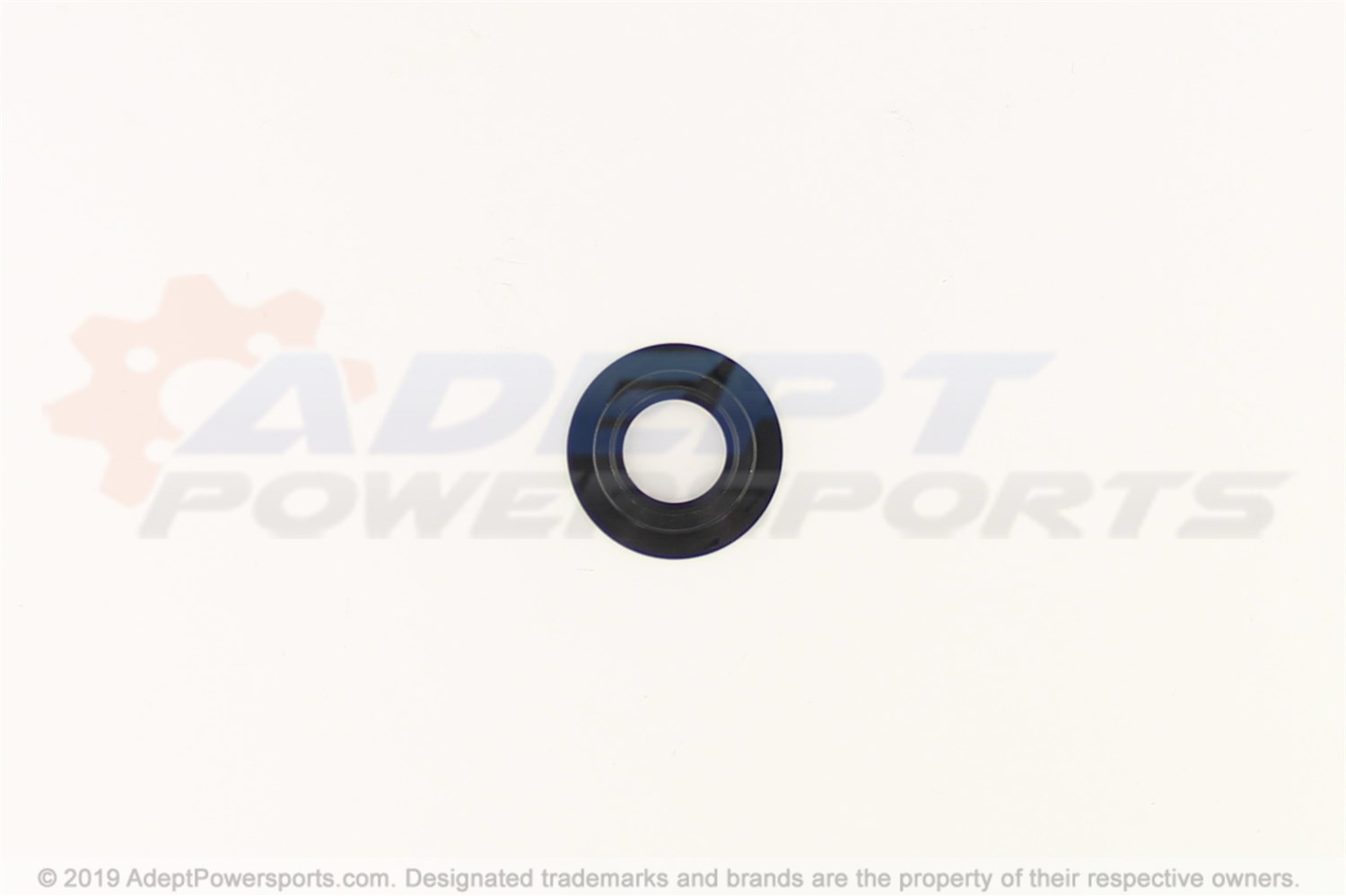

92049	SEAL-OIL, 26406 Part #: 92049-1030 Required per assembly: 2 $10.00 $8.56 - + Add to cart
92049A	SEAL-OIL, TC17X28X6 Part #: 92049-1537 Required per assembly: 1 $12.12 $10.28 - + Add to cart
92049B	SEAL-OIL, HTC35X48X7 Part #: 92049-1538 Required per assembly: 1 $15.81 $13.25 - + Add to cart
92066	PLUG Part #: 92066-1534 Required per assembly: 3 $2.18 $1.60 - + Add to cart
92116	BEARING-ROLLER, 4T30203E1 Part #: 92116-1001 Required per assembly: 2 $38.76 $35.70 - + Add to cart
92143	COLLAR Part #: 92143-1331 Required per assembly: 3 $4.07 $3.23 - + Add to cart
92145	SPRING, BRAKE, LEVER, RETURN Part #: 92145-1313 Required per assembly: 1 $5.10 $3.99 - + Add to cart
92152	COLLAR Part #: 92152-1240 Required per assembly: 1 $15.81 $13.25 - + Add to cart
92152A	COLLAR Part #: 92152-1356 Required per assembly: 2 $10.47 $8.94 - + Add to cart
