OEM Parts Polaris 2004 Polaris OCTANE W045402DA Drive System - W045402da

2004 Polaris OCTANE - W045402DA - Drive System - W045402da

DRIVE SYSTEM - W045402DA Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
2

SCREW

Part #: 7517717 Required per assembly: 3 Note: Sold in multiples of 10 only
Currently Not Available
3

WASHER, LOCK

Part #: 7552613 Required per assembly: 3
Currently Not Available
4

SHROUD, COUPLER

Part #: 5246722 Required per assembly: 1
Currently Not Available
5

BUMPER, DRIVE, SHAFT

Part #: 5410663 Required per assembly: 1
Currently Not Available
6

SHAFT, DRIVE

Part #: 6230254 Required per assembly: 1
Currently Not Available
7

COUPLER, DRIVE, SHAFT

Part #: 5133521 Required per assembly: 1
Currently Not Available
8

CUSHION, RUBBER, DRIVE

Part #: 5521605 Required per assembly: 1
Currently Not Available
9

COUPLER, PTO

Part #: 5133522 Required per assembly: 1
Currently Not Available
10

SCREW

Part #: 7517668 Required per assembly: 4
Currently Not Available
11

WASHER, LOCK

Part #: 7556055 Required per assembly: 4
Currently Not Available
12

WASHER, FLAT

Part #: 7555835 Required per assembly: 4
$0.77
$0.55
-
+
Add to cart

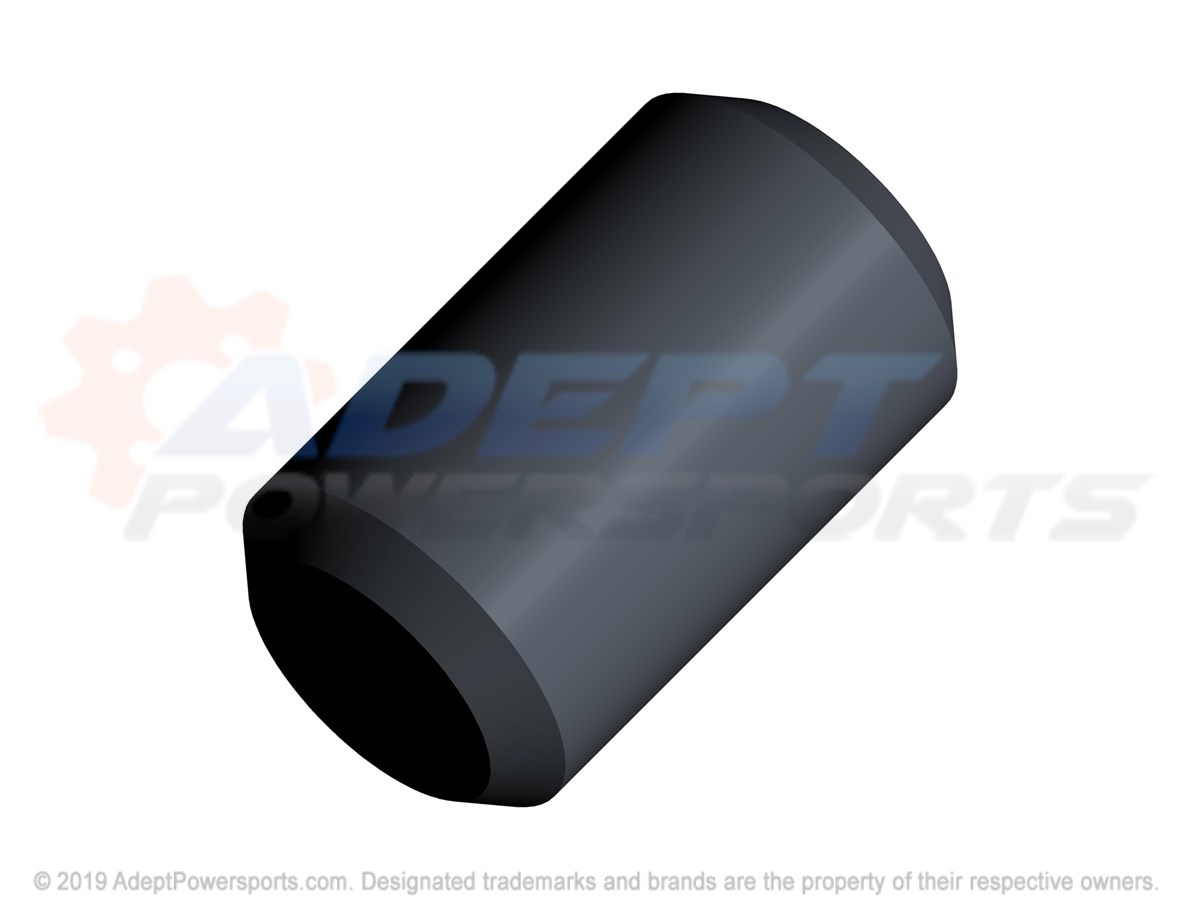

13

PIN, DOWEL

Part #: 5132835 Required per assembly: 2
Currently Not Available
13

BEARING

Part #: 3514308 Required per assembly: 1
Currently Not Available
13

ASSEMBLY, BEARING, HOUSING, DRIVESHAFT

Part #: 5631309 Required per assembly: 1
Currently Not Available
13

SEAL, BEARING, CARRIER

Part #: 3514419 Required per assembly: 3
Currently Not Available
13

RING, RETAINING

Part #: 5246587 Required per assembly: 2
Currently Not Available
