Electrical Box - W045402da replacement parts for 2004 Polaris OCTANE

OEM Parts Polaris 2004 Polaris OCTANE W045402DA Electrical Box - W045402da

ELECTRICAL BOX - W045402DA Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	HARNESS, CIRCUIT, BREAKER/SOLENOID Part #: 2461087 Required per assembly: 1 Currently Not Available
2	HARNESS, START/STOP, CONTROLS Part #: 2461091 Required per assembly: 1 Currently Not Available
3	ANCHOR, CABLE, TIE Part #: 7080464 Required per assembly: 5 Currently Not Available
4	STRAP PANDUIT Part #: 7080138 Required per assembly: 11 $1.99 $1.15 - + Add to cart
5	INSUL.CABLE SOL. Part #: 5410346 Required per assembly: 4 Currently Not Available

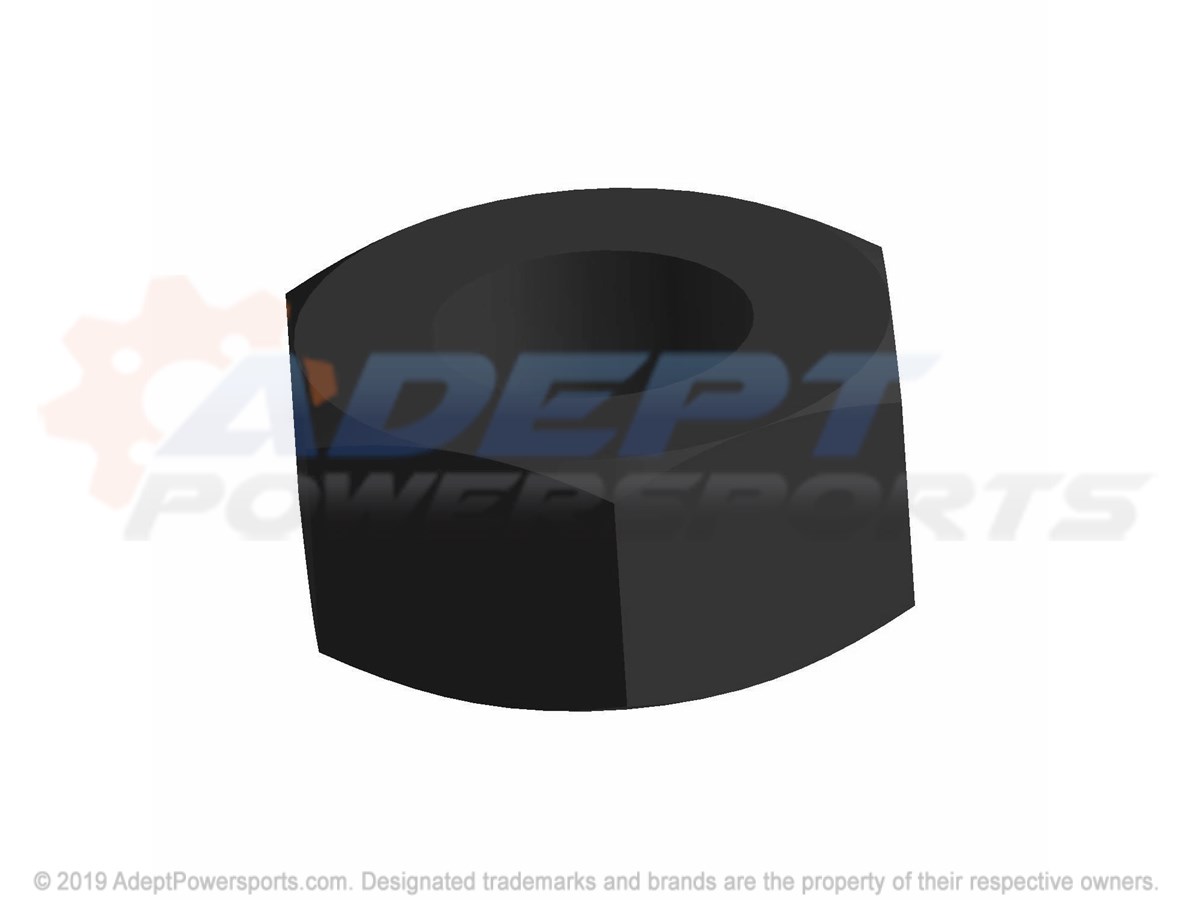

6	NUT Part #: 7546705 Required per assembly: 5 Currently Not Available
7	WASHER, LOCK Part #: 7552613 Required per assembly: 3 Currently Not Available
8	SOLENOID, STARTER Part #: 4011043 Required per assembly: 1 Currently Not Available
9	NUT, NYLOK, SS. Part #: 7546704 Required per assembly: 4 Currently Not Available
10	STRAP, BATT.HOLD-DOWN Part #: 5411456 Required per assembly: 1 Note: Strap, Battery Hold Down Currently Not Available
11	HOOK, 'D', SST/SS, Part #: 5224472 Required per assembly: 2 Note: Sold in multiples of 10 only Currently Not Available
12	FUSE, 3, AMP Part #: 4060161 Required per assembly: 1 Currently Not Available
13	FUSE Part #: 4060111 Required per assembly: 1 Currently Not Available
14	HARNESS, JUMPER Part #: 2460928 Required per assembly: 1 Currently Not Available
15	SCREW Part #: 7517669 Required per assembly: 4 Currently Not Available
16	WASHER(10) Part #: 7555882 Required per assembly: 2 Currently Not Available
17	BRACKET, E-BOX Part #: 5246395 Required per assembly: 1 Currently Not Available
18	LATCH Part #: 5432503 Required per assembly: 4 Currently Not Available
19	PIN, LATCH Part #: 5333544 Required per assembly: 4 Note: Sold in multiples of 10 only Currently Not Available
20	CONTROLLER, IGNITION Part #: 4010558 Required per assembly: 1 Currently Not Available
21	ASSEMBLY, GROUNDING, STRAP, W/FUSES Part #: 2410250 Required per assembly: 1 Currently Not Available
22	NUT, NYLOK Part #: 7547061 Required per assembly: 3 Currently Not Available

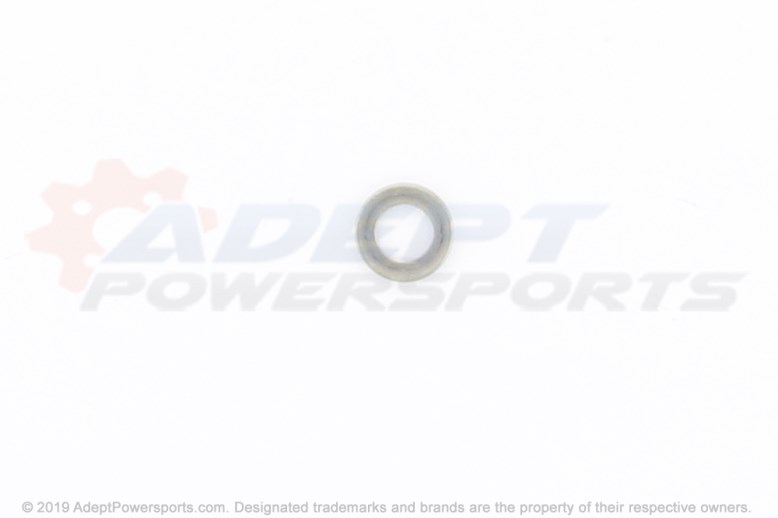

23	WASHER, FLAT Part #: 7555837 Required per assembly: 5 $1.77 $1.28 - + Add to cart
24	BOLT Part #: 7512042 Required per assembly: 3 Currently Not Available
25	REGULATOR Part #: 4010387 Required per assembly: 1 Currently Not Available
26	CABLE, BATTERY/SOLENOID Part #: 4010756 Required per assembly: 1 Currently Not Available
27	CABLE, SOLENOID/STARTER Part #: 4010237 Required per assembly: 1 Currently Not Available
28	O-RING Part #: 5411491 Required per assembly: 1 Currently Not Available
29	BOOT, THREADED Part #: 7080461 Required per assembly: 1 Currently Not Available
30	BOLT Part #: 7515113 Required per assembly: 2 Currently Not Available
31	WASHER, FLAT Part #: 7555836 Required per assembly: 2 Currently Not Available
32	PLATE, STATOR Part #: 5432574 Required per assembly: 1 Currently Not Available
33	DECAL, "ELECTRIC, BOX, RESET" Part #: 7073734 Required per assembly: 1 Currently Not Available
34	HARNESS, 8, WIRE, STATOR Part #: 2460718 Required per assembly: 1 Currently Not Available
35	COVER, ELECTRICAL, BOX Part #: 2631998 Required per assembly: 1 Currently Not Available
36	SEAL Part #: 5432569 Required per assembly: 1 Currently Not Available
37	BRACKET, COIL Part #: 5244370 Required per assembly: 1 Currently Not Available
38	COIL, IGNITION Part #: 4010175 Required per assembly: 1 Currently Not Available
39	ASSEMBLY, TERMINAL, BOARD Part #: 2410202 Required per assembly: 1 Currently Not Available
40	BREAKER, CIRCUIT Part #: 2434011 Required per assembly: 1 Currently Not Available
41	ASSEMBLY, ELECTRICAL, BOX, IGNITION Part #: 2632137 Required per assembly: 1 Note: Incl. 18,19,35,36 Currently Not Available
42	GROMMET Part #: 5411235 Required per assembly: 1 Currently Not Available
43	CAP, GROMMET Part #: 5432502 Required per assembly: 1 Currently Not Available
