Crankshaft And Piston - A04rb63aa replacement parts for 2004 Polaris RANGER TM (A04RB63AA)

OEM Parts Polaris 2004 Polaris RANGER TM (A04RB63AA) Crankshaft And Piston - A04rb63aa

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	SET, PISTON, RING, .25 Part #: 3088375 Required per assembly: 2 Note: Set, Piston Ring, .010 Inch/.25 MM O/S Currently Not Available
1	SET, PISTON, RING, .50 Part #: 3088376 Required per assembly: 2 Note: Set, Piston Ring, .020 Inch/.50 MM O/S Currently Not Available

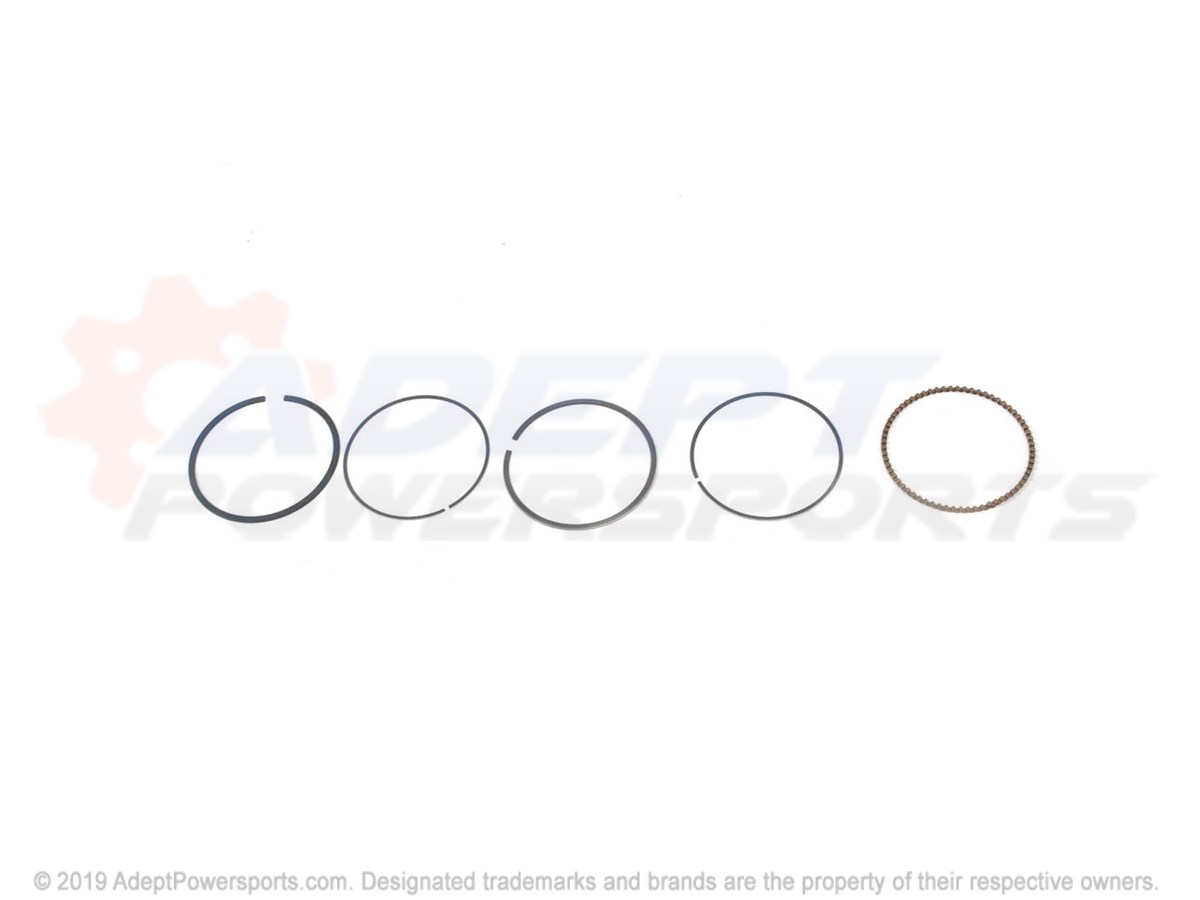

1	SET, PISTON, RING, STANDARD Part #: 3088374 Required per assembly: 2 Currently Not Available
2	CLIP Part #: 3087343 Required per assembly: 4 Currently Not Available
3	PIN, PISTON Part #: 3089758 Required per assembly: 2 Currently Not Available
4	PISTON[.25 MM O/S] Part #: 3088770 Required per assembly: 2 Note: Set, Piston, .010 Inch/.25 MM O/S [Incl. 2] Currently Not Available
4	PISTON[.50 MM O/S] Part #: 3088771 Required per assembly: 2 Note: Set, Piston, .020 Inch/.50 MM O/S [Incl. 2] Currently Not Available
4	PISTON[STD] Part #: 3088769 Required per assembly: 2 Note: Set, Piston, Standard [Incl. 2] Currently Not Available

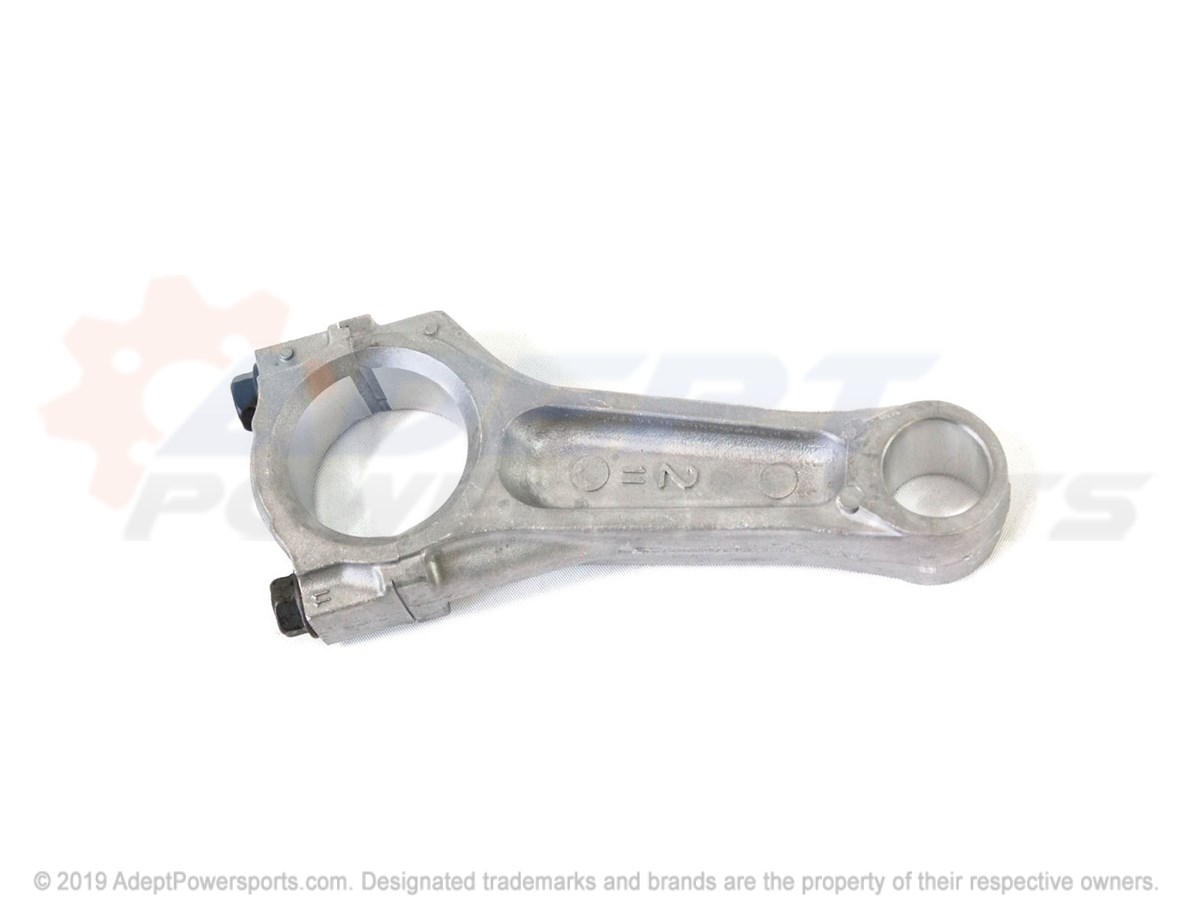

5	ASSEMBLY, ROD, CONNECTING Part #: 3088768 Required per assembly: 2 Note: Asm., Rod, Connecting [Incl. 6] Currently Not Available
6	BOLT, FLANGE Part #: 3088223 Required per assembly: 2 Currently Not Available
7	NUT Part #: 3087294 Required per assembly: 1 Currently Not Available
8	WASHER, SPRING Part #: 3082740 Required per assembly: 1 Note: Washer Sold in multiples of 10 only Currently Not Available
9	WASHER Part #: 3087297 Required per assembly: 1 Currently Not Available
10	KEY, WOODRUFF Part #: 3087308 Required per assembly: 1 Currently Not Available
11	ASSEMBLY, CRANKSHAFT Part #: 3088757 Required per assembly: 1 Currently Not Available
12	SPACER, 0.6 Part #: 3088380 Required per assembly: 1 Currently Not Available
12	SPACER, 0.8 Part #: 3088381 Required per assembly: 1 Currently Not Available
12	SPACER, 1.0 Part #: 3088382 Required per assembly: 1 Currently Not Available
