Gearcase - A04rb63aa replacement parts for 2004 Polaris RANGER TM (A04RB63AA)

OEM Parts Polaris 2004 Polaris RANGER TM (A04RB63AA) Gearcase - A04rb63aa

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

-	ASSEMBLY, GEARCASE Part #: 1332352 Required per assembly: 1 Currently Not Available
1	NUT, FLEXLOC Part #: 3233961 Required per assembly: 1 Currently Not Available
2	SCREW Part #: 3233826 Required per assembly: 5 $10.99 $6.33 - + Add to cart
3	COVER W/PINS Part #: 3234188 Required per assembly: 1 Note: For gasket use p/n 3234123 Currently Not Available
5	O-RING Part #: 3233828 Required per assembly: 1 Currently Not Available
6	PAWL, DETENT Part #: 3233829 Required per assembly: 1 Currently Not Available
7	SHAFT, SHIFT Part #: 3233831 Required per assembly: 1 Currently Not Available

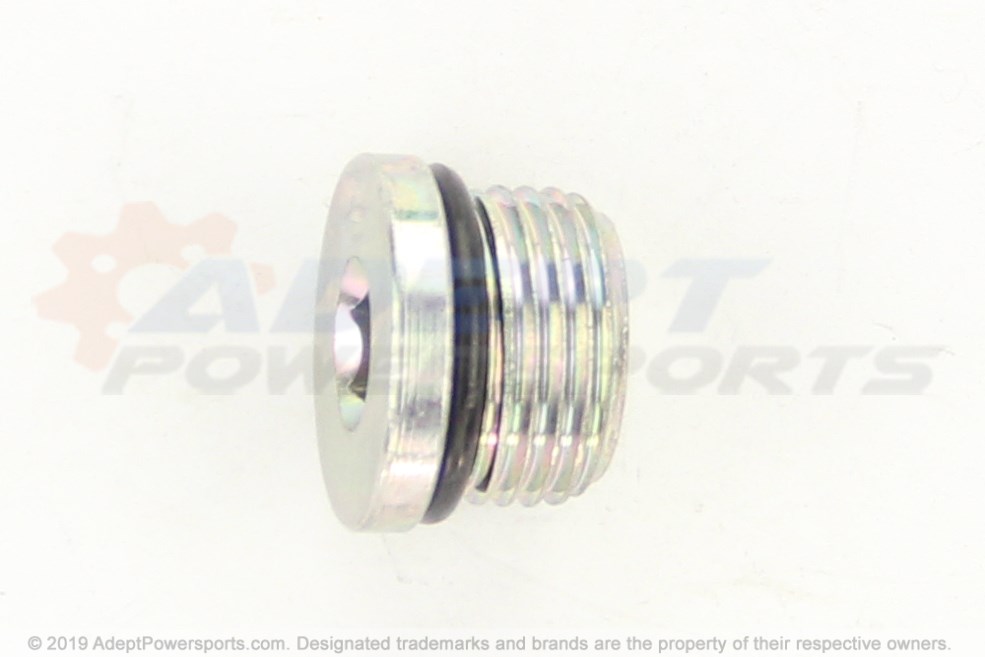

9	PLUG-HEX, HOLLOW, W/O-RING, (FB) Part #: 3233794 Required per assembly: 2 Note: Plug, Hex, Hollow w/O-Ring Currently Not Available
10	SEAL, TRIPLE, LIP Part #: 3234892 Required per assembly: 1 Currently Not Available
11	GEAR, 31T Part #: 3233832 Required per assembly: 1 Currently Not Available
12	TUBE, VENT Part #: 3233524 Required per assembly: 1 Note: Tube, Vent Currently Not Available
13	BEARING Part #: 3233018 Required per assembly: 4 Currently Not Available
14	CHAIN, SILENT, 34P Part #: 3233036 Required per assembly: 1 Currently Not Available
15	SHAFT, INPUT Part #: 3234145 Required per assembly: 1 Currently Not Available
16	BEARING Part #: 3233019 Required per assembly: 3 Currently Not Available
17	PIN, DOWEL Part #: 3233247 Required per assembly: 4 Currently Not Available
18	COVER, LH Part #: 3234127 Required per assembly: 1 Currently Not Available
19	SCREW Part #: 3234114 Required per assembly: 15 Currently Not Available
20	SEAL Part #: 3234851 Required per assembly: 1 Currently Not Available
21	SCREW Part #: 3234042 Required per assembly: 2 Currently Not Available
22	BRACKET Part #: 3234044 Required per assembly: 1 Note: Bracket, Transmission Mount Currently Not Available
23	NUT Part #: 3234043 Required per assembly: 2 Currently Not Available
24	DRUM, SHIFT Part #: 3234146 Required per assembly: 1 Currently Not Available
25	O-RING Part #: 3233840 Required per assembly: 1 Currently Not Available
26	RAIL, SHIFT, SHAFT Part #: 3233860 Required per assembly: 1 Currently Not Available
27	FORK, SHIFT, W/PIN Part #: 3234141 Required per assembly: 1 Note: Subasm., Shift Fork w/Pin [Incl. 28] Currently Not Available
29	GEAR, 34T, [FB] Part #: 3233971 Required per assembly: 1 Note: Gear, 34T Currently Not Available
30	BEARING, NDL, SPLIT, CAGE Part #: 3233718 Required per assembly: 1 Note: Bearing, Needle Currently Not Available
31	SPRING, WAVE Part #: 3234144 Required per assembly: 1 Currently Not Available
32	WASHER Part #: 3233894 Required per assembly: 1 Currently Not Available
33	SHAFT, REVERSE Part #: 3233892 Required per assembly: 1 Currently Not Available
34	BEARING, NEEDLE Part #: 3233103 Required per assembly: 1 Currently Not Available
35	SPROCKET, 24T Part #: 3233893 Required per assembly: 1 Note: Sprocket, 24T [Built 4/14/08 and Before] Currently Not Available
36	RING, RETAINING Part #: 3233850 Required per assembly: 1 Currently Not Available
37	ENGAGEMENT DOG Part #: 3233875 Required per assembly: 2 Currently Not Available
38	WASHER Part #: 3233855 Required per assembly: 1 Currently Not Available
39	GEAR, 31T Part #: 3234030 Required per assembly: 1 Currently Not Available
40	GEAR-HELICAL, 50T, (FA) Part #: 3233764 Required per assembly: 1 Note: Gear, 50T (FB) (FB) Currently Not Available
41	SCREW Part #: 3234086 Required per assembly: 4 Currently Not Available
42	COVER, BEARING Part #: 3234122 Required per assembly: 1 Note: Cover, Bearing, Center Drive Currently Not Available
43	RING, SNAP Part #: 3233106 Required per assembly: 1 Currently Not Available
44	SPACER Part #: 3233357 Required per assembly: 1 Currently Not Available
45	BEARING, BALL Part #: 3233607 Required per assembly: 1 Note: Bearing, Ball Currently Not Available
46	SUBASM., GROUND, SPIRAL, BEVEL Part #: 3234912 Required per assembly: 1 Note: Subasm., Ground Spiral Bevel [Incl. 54] Currently Not Available
47	WASHER, THRUST Part #: 3233619 Required per assembly: 1 Note: Washer, Thrust Currently Not Available
49	SHAFT, REAR, OUTPUT Part #: 3233622 Required per assembly: 1 Note: Shaft, Rear Output Currently Not Available
50	THRUST BUTTON Part #: 3233582 Required per assembly: 1 Note: Button, Thrust Currently Not Available
51	SHIM .450 X .265 Part #: 3233583 Note: Shim $30.79 $22.99 - + Add to cart
52	SHIM Part #: 3233611 $30.79 $22.99 - + Add to cart
53	COVER, OUTPUT, FRONT, [2X4] Part #: 3234131 Required per assembly: 1 Note: Cover, Output, Front Currently Not Available
54	GEARCASE, MAIN Part #: 3234129 Required per assembly: 1 Currently Not Available
55	GEAR, 16T Part #: 3233839 Required per assembly: 1 Currently Not Available
56	DISC, LOCKOUT Part #: 3233838 Required per assembly: 1 Currently Not Available
57	STAR, DETENT Part #: 3233837 Required per assembly: 1 Currently Not Available
58	O-RING Part #: 3233836 Required per assembly: 1 Currently Not Available
59	SPRING, COMPRESSION Part #: 3233830 Required per assembly: 1 Currently Not Available
60	SWITCH Part #: 3236115 Required per assembly: 1 Currently Not Available
61	RING, RETAINING Part #: 3233834 Required per assembly: 1 Currently Not Available
62	BELLCRANK Part #: 3233825 Required per assembly: 1 Currently Not Available
