Spoked Wheel, Front replacement parts for 2006-2012 BMW F800GS (K72)

OEM Parts Bmw 2006-2012 Bmw F800GS (K72) Spoked Wheel, Front

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

01	SPOKE WHEEL FRONT - 2.15X21 Part #: 36317720080 Required per assembly: 1 Currently Not Available
02	WHEEL, FRONT - 2,15X21 Part #: 36317720081 Required per assembly: 1 Currently Not Available
03	WHEEL HUB FRONT Part #: 36317704465 Required per assembly: 1 Currently Not Available
04	SPOKE, FRONT, INNER - M4,5; L=237,5MM Part #: 36317720082 Required per assembly: 18 Currently Not Available
05	SPOKE, FRONT, OUTER - M4,5; L=235,5MM Part #: 36317720083 Required per assembly: 18 Currently Not Available
06	NIPPLE - M4,5 Part #: 36317720084 Required per assembly: 36 Currently Not Available
07	FLOATING AXLE, FRONT Part #: 36317713558 Required per assembly: 1 Currently Not Available

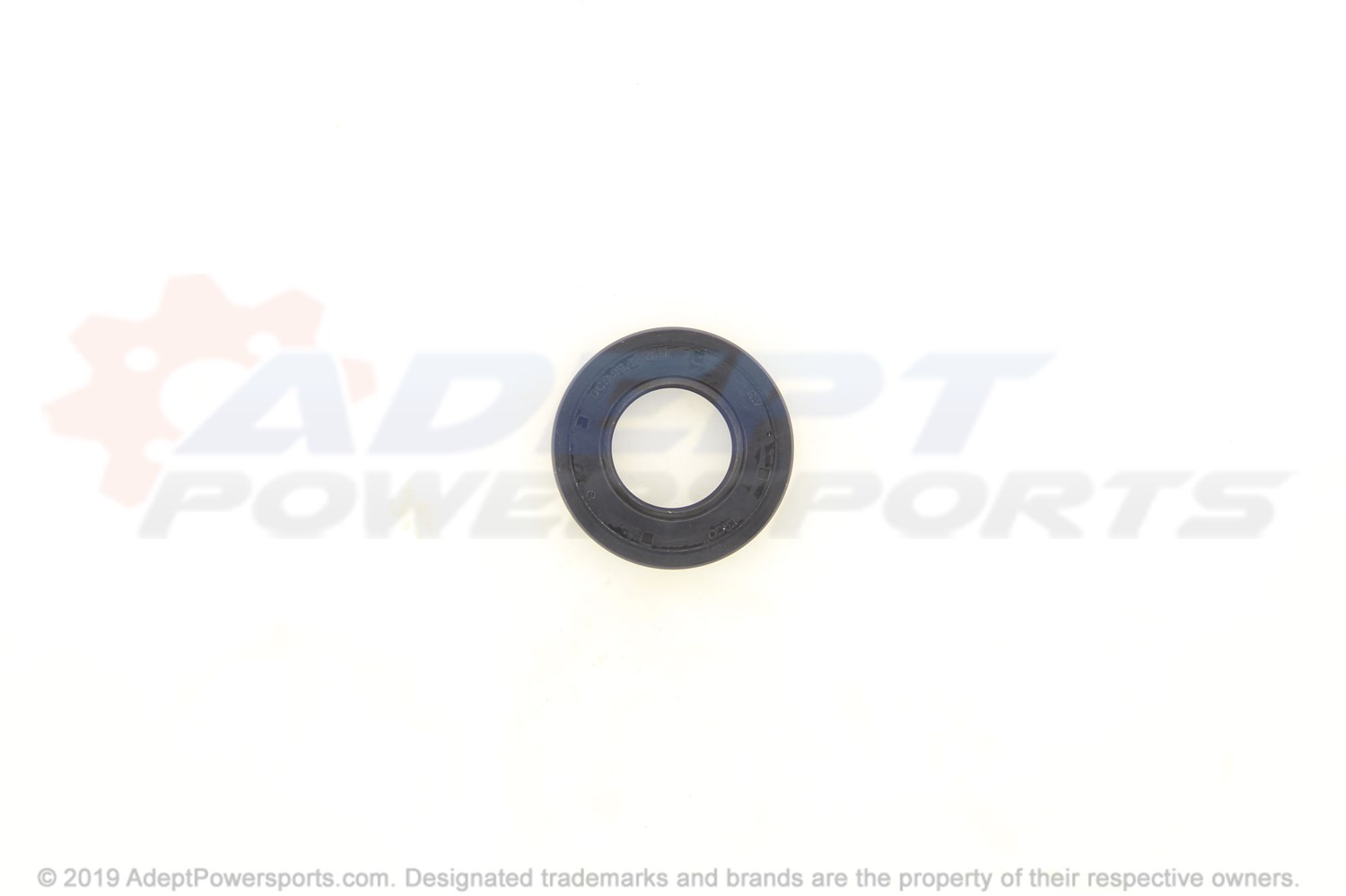

08	SHAFT SEAL - AS25X47X7 Part #: 07119906004 Required per assembly: 1 Currently Not Available
09	LOCK RING - 47X1,75 Part #: 07119906808 Required per assembly: 1 Currently Not Available
10	GROOVED BALL BEARING - 20X47X14 Part #: 36318534835 Required per assembly: 1 Currently Not Available
11	SPACER BUSH Part #: 36317695884 Required per assembly: 1 Currently Not Available
12	GROOVED BALL BEARING - 20X47X14 Part #: 36318534835 Required per assembly: 1 Currently Not Available
13	SHAFT SEAL - AS30X47X7 Part #: 07119906005 Required per assembly: 1 Note: PAINT, BLACK 103 Currently Not Available
14	BUSH LEFT Part #: 36317653132 Required per assembly: 1 Currently Not Available
15	HEX BOLT - M14X1.5 Part #: 36317705315 Required per assembly: 1 Currently Not Available
16	TIRE FLAP - 21"/28MM Part #: 36317720085 Required per assembly: 1 Currently Not Available
17	BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 5G Part #: 36317720635 Required per assembly: 1 Note: ONLY FOR WHEEL FLANGE WITH THREADED SLEEVE Currently Not Available
17	BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 10G Part #: 36317720636 Required per assembly: 1 Currently Not Available
17	BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 15G Part #: 36317720637 Required per assembly: 1 Currently Not Available
17	BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 20G Part #: 36317720638 Required per assembly: 1 Currently Not Available
17	BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 25G Part #: 36317720639 Required per assembly: 1 Currently Not Available
17	BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 30G Part #: 36317720640 Required per assembly: 1 Currently Not Available
