OEM Parts Polaris 2006 Polaris Hawkeye 2X4/4X4 (A06LB27AA) Brake Caliper Internals - A06lb27aa/Ld27aa/Ab/Ac/Ad

2006 Polaris Hawkeye 2X4/4X4 (A06LB27AA) - Brake Caliper Internals - A06lb27aa/Ld27aa/Ab/Ac/Ad

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
-

KIT, ASM., CALIPER, BRAKE, LH

Part #: 2203041 Required per assembly: 2
Currently Not Available
-

KIT, ASM., CALIPER, BRAKE, RH

Part #: 2203042 Required per assembly: 1
Currently Not Available
1

KIT, CALIPER, LH

Part #: 2203043 Required per assembly: 1
Currently Not Available
1

KIT, CALIPER, RH

Part #: 2203044 Required per assembly: 1
Currently Not Available
2

KIT, PISTON, AND, SEALS

Part #: 2203047 Required per assembly: 2
Currently Not Available
3

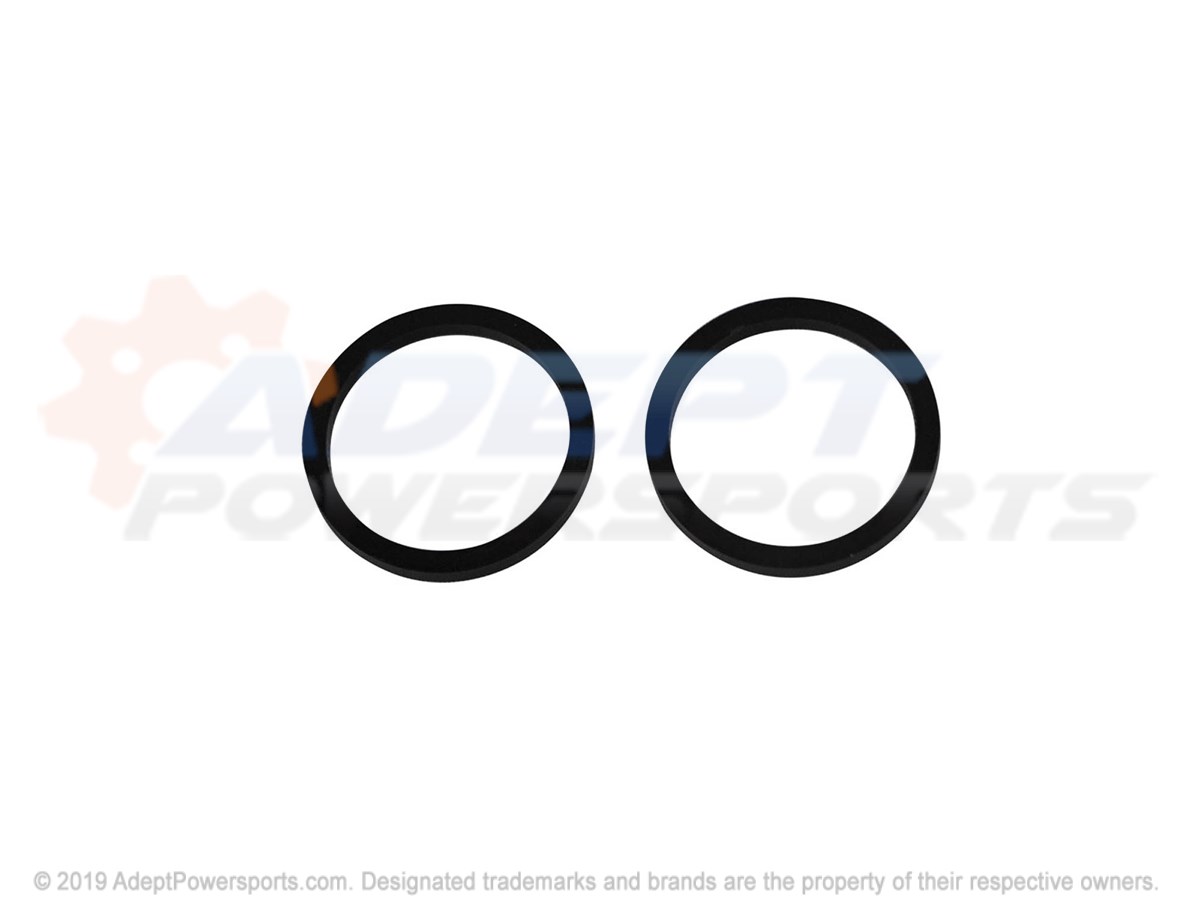

Polaris 2203048 Kit, Seals

KIT, SEALS

Part #: 2203048 Required per assembly: 2
Currently Not Available
4

KIT, GUIDE, O-RINGS

Part #: 2203049 Required per assembly: 2
Currently Not Available
5

KIT, SCREW, BLEEDER

Part #: 2203050 Required per assembly: 1
Currently Not Available
6

KIT, ASM., BRACKET, CALIPER

Part #: 2203046 Required per assembly: 2
Currently Not Available
7

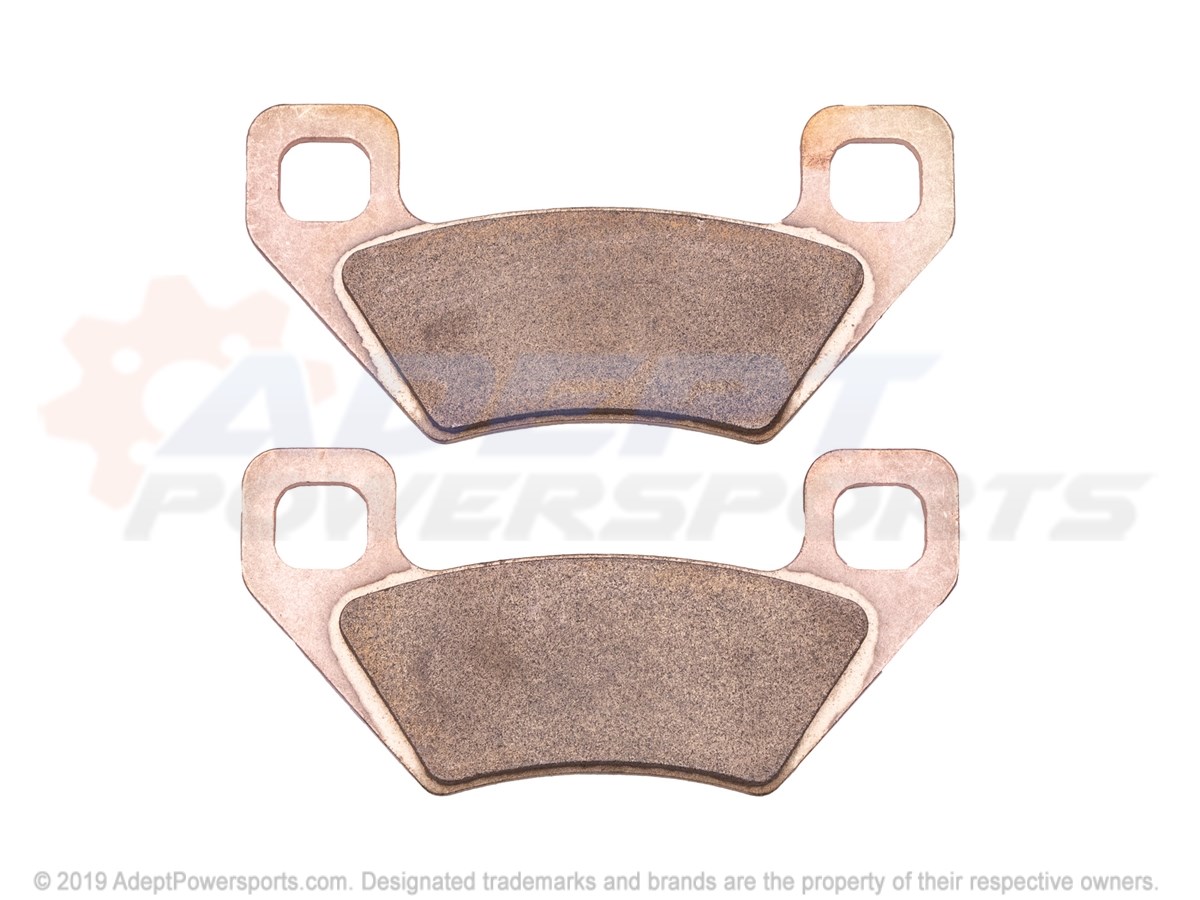

Polaris 2203045 Kit, Asm., Pad, Brake

KIT, ASM., PAD, BRAKE

Part #: 2203045 Required per assembly: 1
Currently Not Available
