Fuel System - A06lb27aa/Ld27aa/Ab/Ac/Ad replacement parts for 2006 Polaris Hawkeye 2X4/4X4 (A06LB27AA)

OEM Parts Polaris 2006 Polaris Hawkeye 2X4/4X4 (A06LB27AA) Fuel System - A06lb27aa/Ld27aa/Ab/Ac/Ad

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	SCREW Part #: 7518529 Required per assembly: 4 ~~$2.99~~ $1.73 - + Add to cart
2	BRACKET, FUEL, TANK, BLACK Part #: 1015349-067 Required per assembly: 1 Currently Not Available

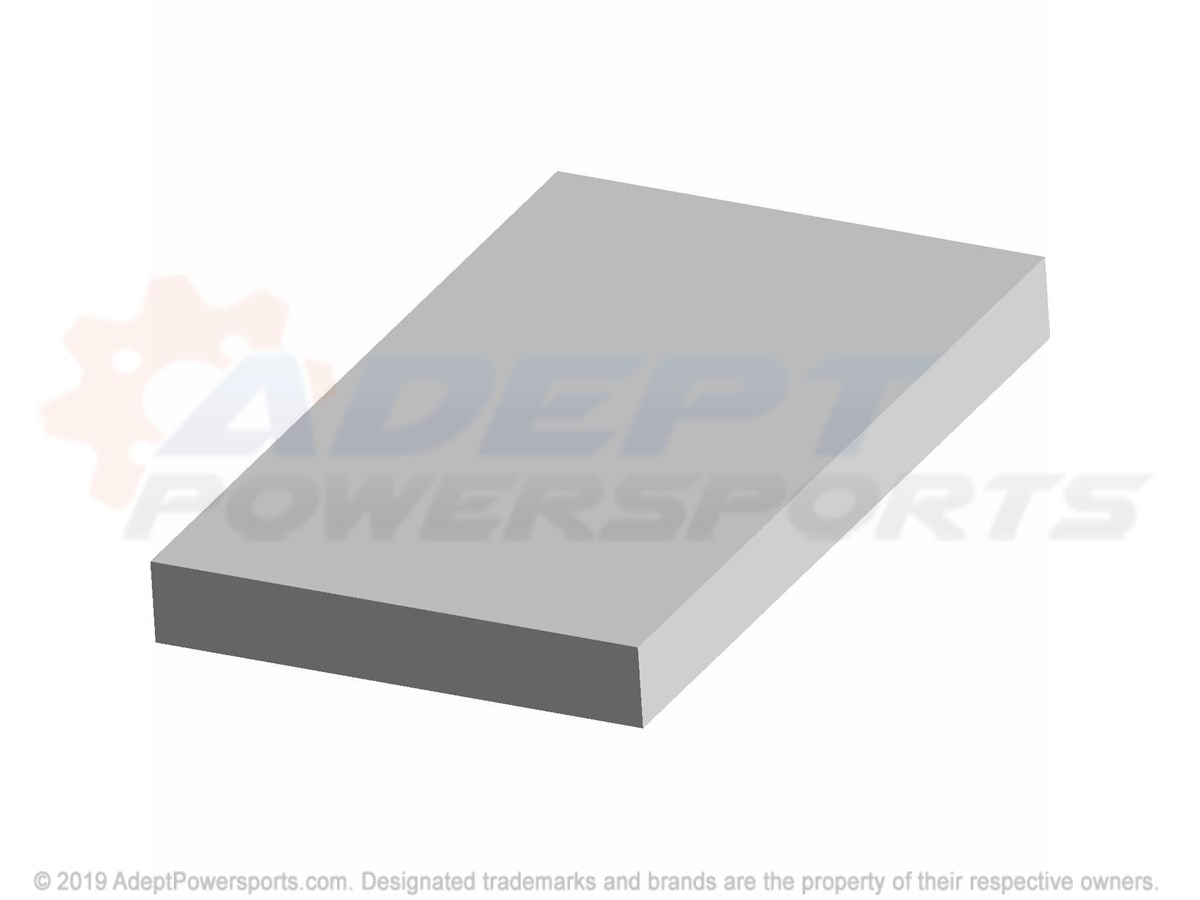

3	PAD, FUEL, FILTER Part #: 5812996 Required per assembly: 1 Currently Not Available
4	ASSEMBLY, FUEL, TANK Part #: 2520956 Required per assembly: 1 Note: Asm., Fuel Tank [Incl. 10] Currently Not Available
5	SCREW Part #: 7518196 Required per assembly: 1 ~~$1.99~~ $1.15 - + Add to cart
6	CAP, GAS, TANK Part #: 5450389 Required per assembly: 1 Note: Cap, Fuel Tank [Incl. 7] Currently Not Available
8	FUEL, LINE, 1/8, ID, 600, CM. Part #: 8360009-600 Currently Not Available
9	VENT, TANK Part #: 5431053 Required per assembly: 1 Currently Not Available
10	GAUGE, FUEL, REMOTE Part #: 3280476 Required per assembly: 1 Currently Not Available

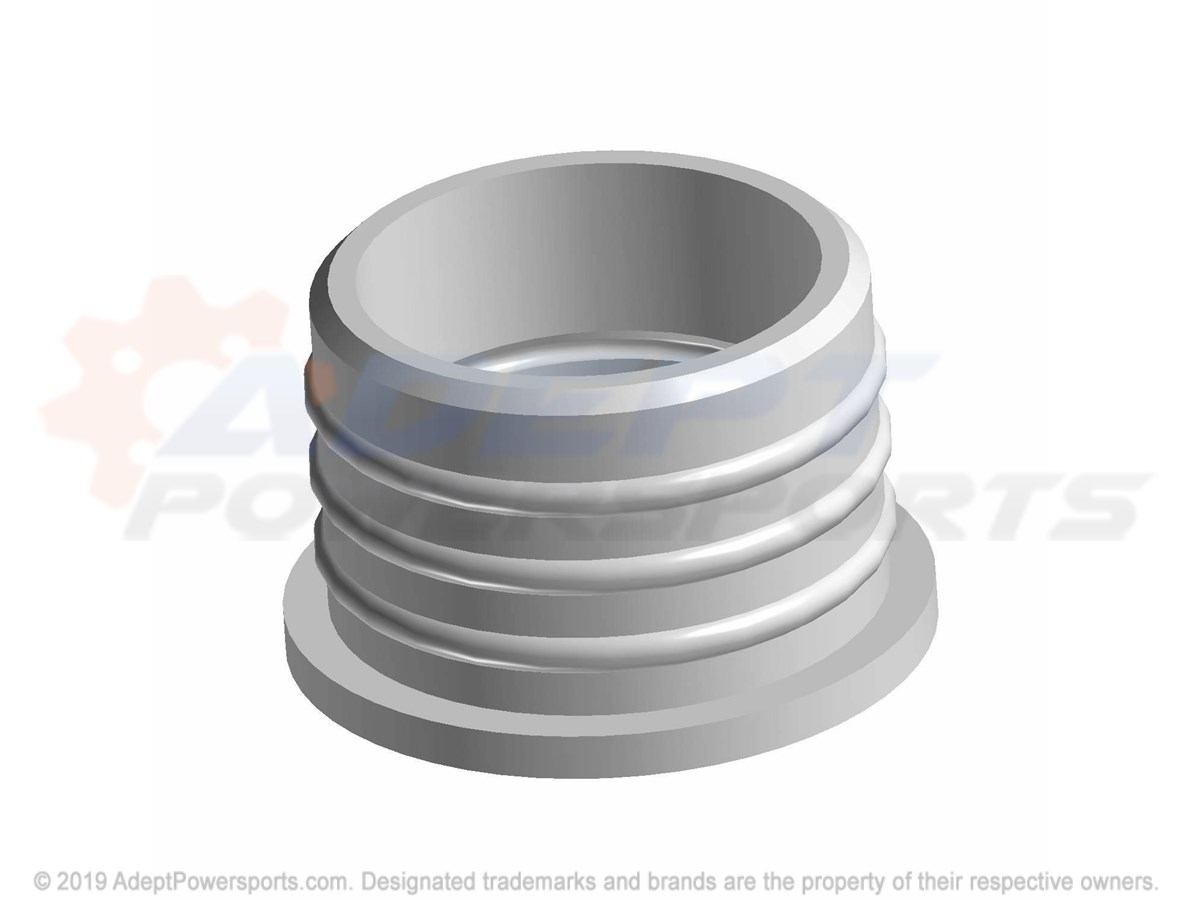

11	GROMMET Part #: 5413089 Required per assembly: 1 Currently Not Available
12	VALVE, 90, DEGREES Part #: 7052249 Required per assembly: 1 Currently Not Available
13	CLAMP, HOSE Part #: 7080003 Required per assembly: 12 Note: Clamp, Hose, Red Currently Not Available
14	HOSE, FUEL Part #: 8450117-250 Currently Not Available

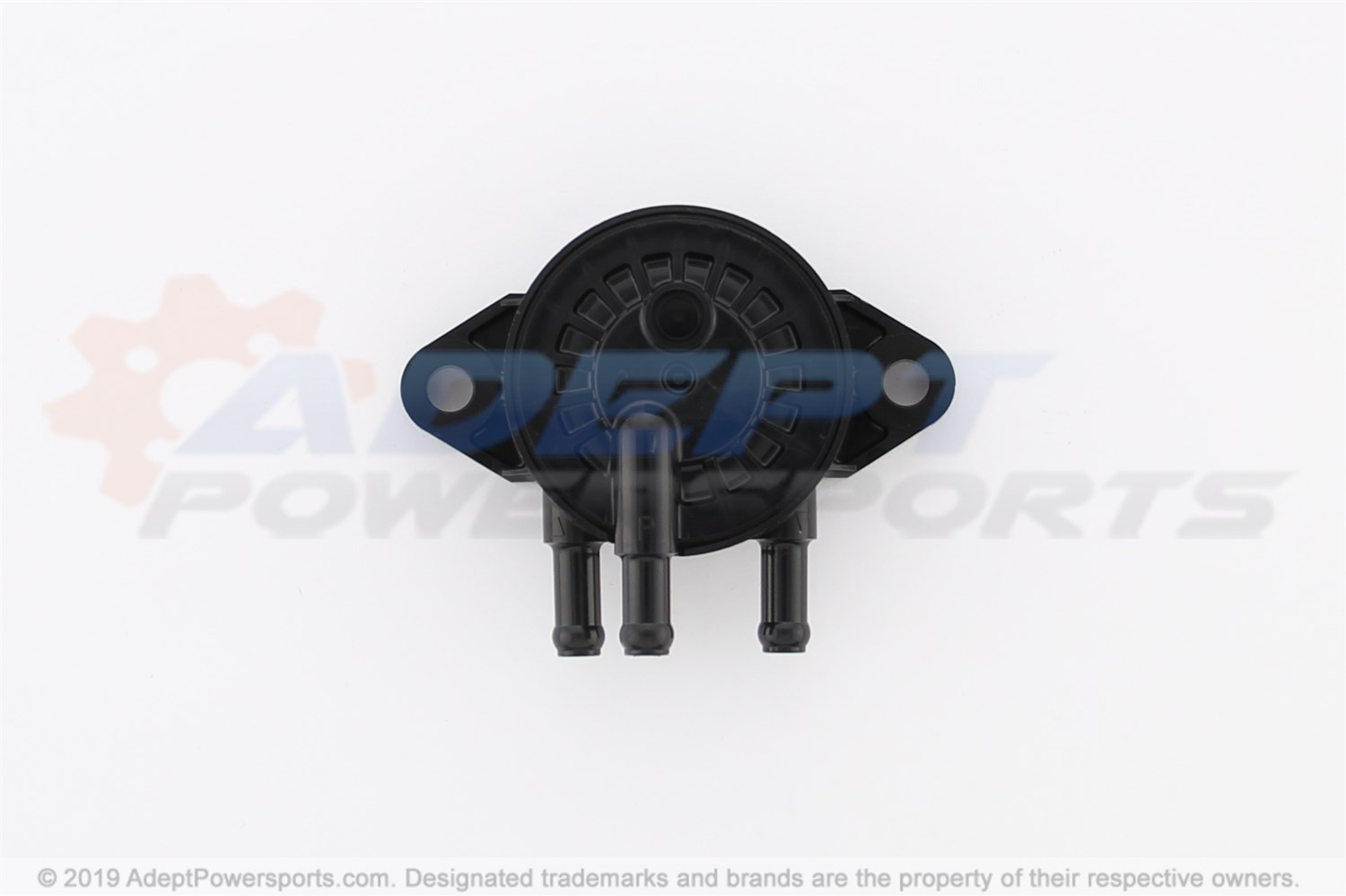

15	ASSEMBLY, FUEL, PUMP Part #: 3089760 Required per assembly: 1 Currently Not Available
16	SCREW Part #: 7518533 Required per assembly: 2 Note: Screw, Flange Currently Not Available
17	NUT Part #: 7547274 Required per assembly: 2 Note: Nut, Flange Currently Not Available
18	FUEL, LINE, 1/4, ID(600, CM.) Part #: 8450040-600 Currently Not Available
19	FILTER, SMALL, IN-LINE Part #: 2530009 Required per assembly: 1 ~~$4.99~~ $2.88 - + Add to cart
