OEM Parts Bmw 2007-2010 Bmw K1300GT (K44) Oddments Tray

2007-2010 Bmw K1300GT (K44) 12/07-08/10 USA - Oddments Tray

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
01

FLAP FRONT RIGHT

Part #: 46637719205 Required per assembly: 1 Note: FOR VEHICLES WITH RED-APPLE METALLIC (CODE: WM18)
Currently Not Available
01

FLAP FRONT RIGHT

Part #: 46637719206 Required per assembly: 1 Note: FOR VEHICLES WITH MAGNESIUM-BEIGE METALLIC (CODE: WM22)
Not Available
01

FLAP FRONT RIGHT

Part #: 46637719207 Required per assembly: 1 Note: FOR VEHICLES WITH ROYAL-BLUE METALLIC (CODE: WM24)
Currently Not Available
02

STOWAGE COMPARTMENT, BOOT RIGHT

Part #: 46637687928 Required per assembly: 1
Currently Not Available
03

GASKET F BOTTOM PART

Part #: 46637687933 Required per assembly: 1
Currently Not Available
04

NUT - M5

Part #: 46637658638 Required per assembly: 5 Note: ONLY IN CONJUNCTION WITH
Currently Not Available
05

FILLISTER HEAD SCREW - M5X12

Part #: 06327651211 Required per assembly: 7 Note: ONLY APPLIES TO
Currently Not Available
--

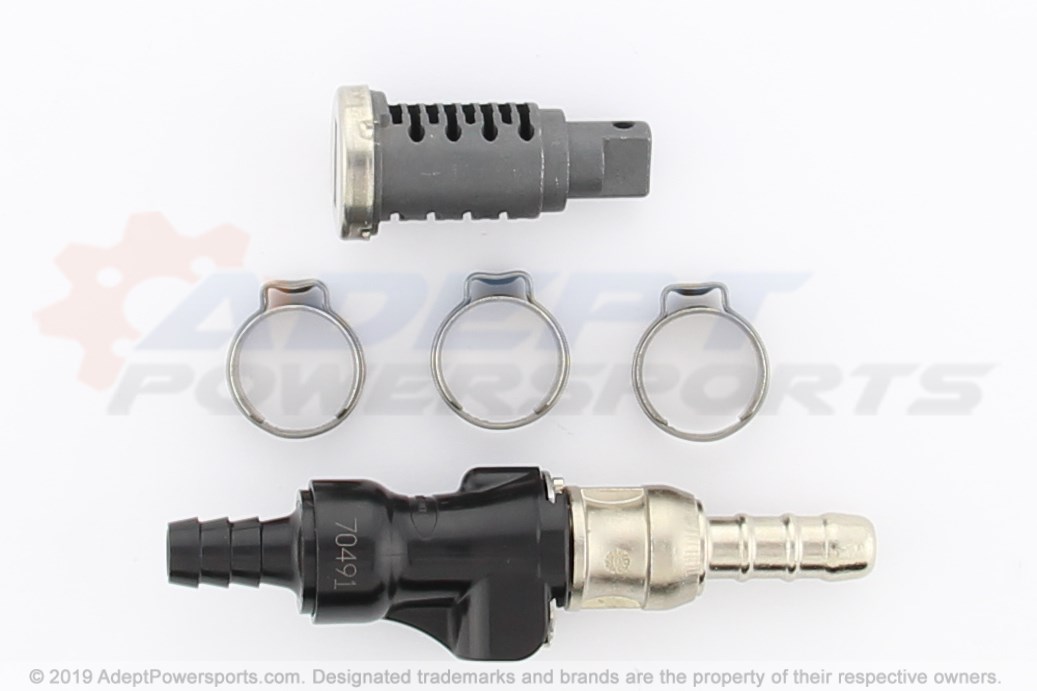

SET: REP.KIT F LOCK CYLINDER

Part #: 51257698204 Required per assembly: 1 Note: FOR DUALSEAT
Not Available
