OEM Parts Bmw 2007-2010 Bmw K1300GT (K44) Top Case

2007-2010 Bmw K1300GT (K44) 12/07-08/10 USA - Top Case

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
COLOR MIXTURE CODE GRANIT-GRAY MET. 934
01

TOP CASE GRANIT-GRAY, LARGE - 49L

Part #: 71607727707 Required per assembly: 1 Note: FOR VEHICLES WITH TOP CASE LARGE (CODE: X696A) OR GRANIT-GRAY MET./GRANIT-GRAY MET. MATT (CODE: WN75)
Currently Not Available
02

LOCK CYLINDER WITH VIN CODE

Part #: 51257681200 Required per assembly: 1 Note: ONLY APPLIES TO
Not Available
03

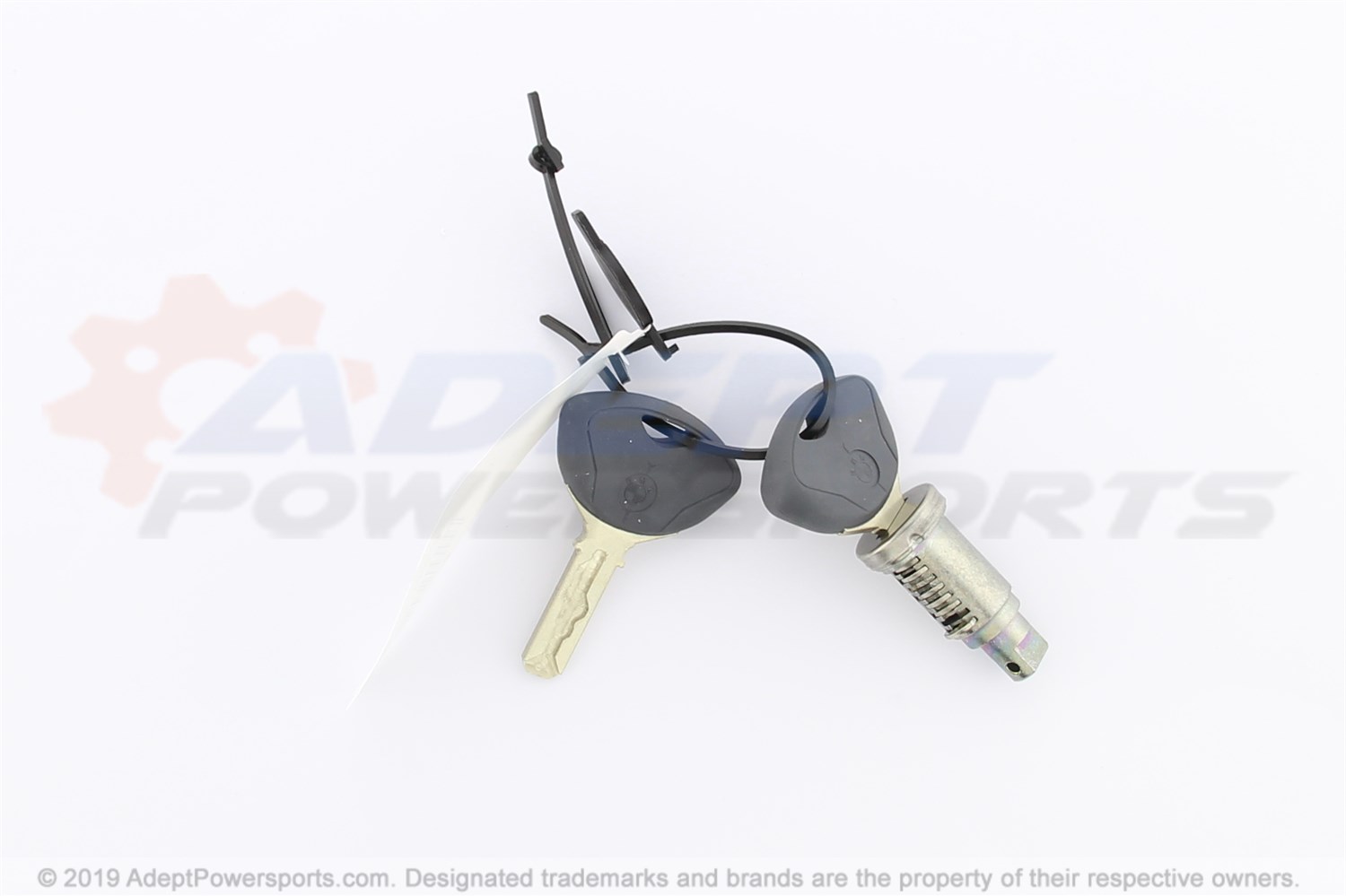

LOCK CYLINDER WITH KEY

Part #: 51257688957 Required per assembly: 1
Currently Not Available
04

LOCK CYLINDER AS PER CODE

Part #: 51257688842 Required per assembly: 1 Note: ONLY APPL.TO UNIFORM LOCK.SYST.,BOXES
Not Available
