OEM Parts Aprilia 2008 Aprilia Dorsoduro 750 Frame Ii

2008 Aprilia Dorsoduro 750 - Frame Ii

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

ENGINE PIN

Part #: 851784
Currently Not Available
2

FLANGED NUT M12

Part #: AP8150548
Currently Not Available
3

WASHER 13X24X2,5*

Part #: AP8150101
Currently Not Available
4

SPACER

Part #: 853036
Currently Not Available
5

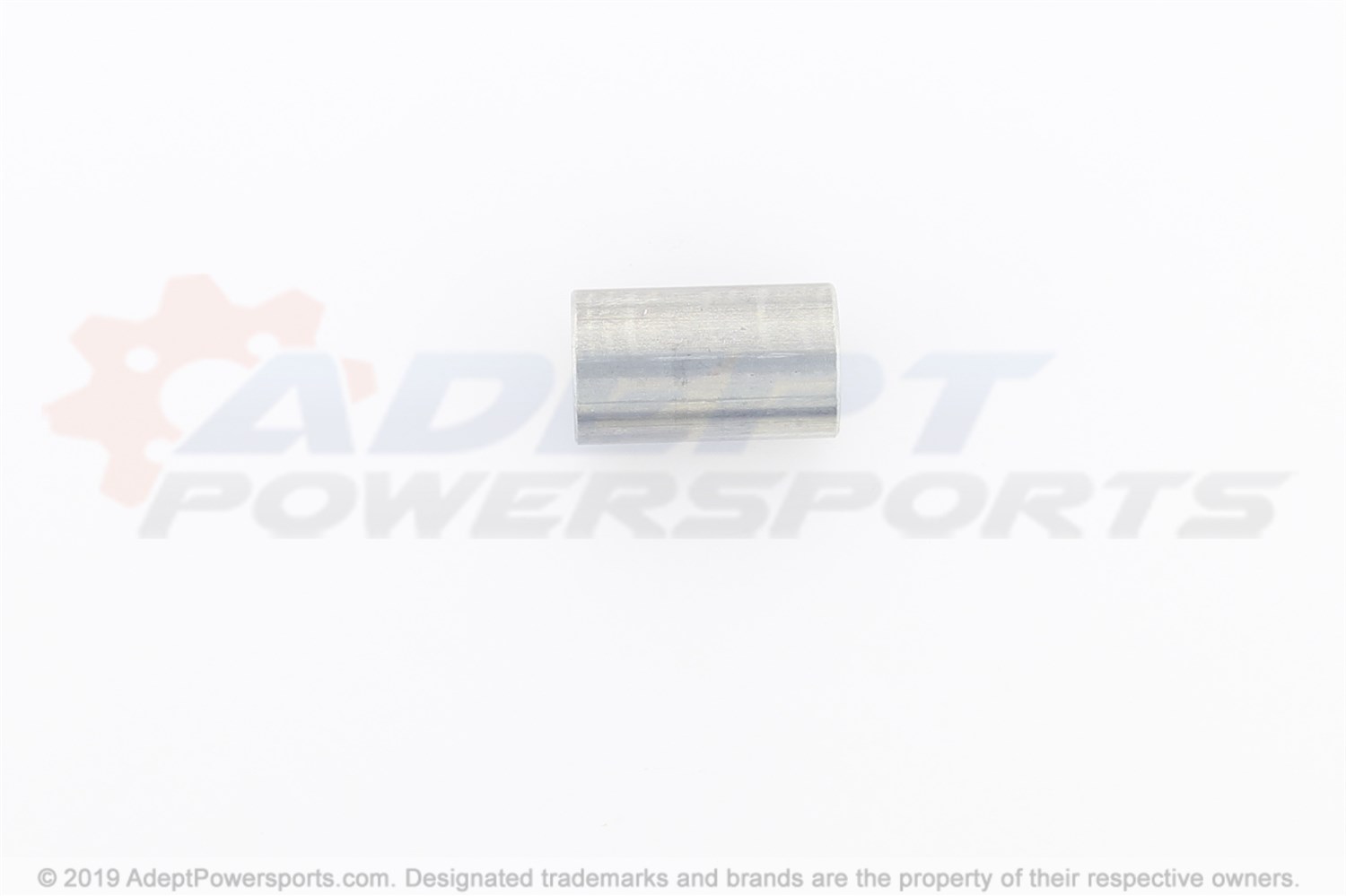

SPACER

Part #: 853035
$19.44
$15.90
-
+
Add to cart
6

PLATE

Part #: 854942
Currently Not Available
7

HEX SOCKET SCREW M4X10*

Part #: AP8152043
Currently Not Available
8

HEX SOCKET SCREW M6X20*

Part #: AP8150044
Currently Not Available
9

T BUSH *

Part #: AP8221023
Currently Not Available
10

RUBBER SPACER 10X20X10

Part #: AP8120030
Currently Not Available
11

SELF-TAP SCREW 5X14

Part #: 860382
Currently Not Available
12

SUPPORT

Part #: 853213
Currently Not Available
13

BLACK HOSE 98X2*

Part #: AP8120422
Currently Not Available
14

HOSE CLAMP *

Part #: AP8120657
Currently Not Available
15

HOSE CLAMP 155X2

Part #: AP8102386
Currently Not Available
16

CLIP M6

Part #: 254485
Currently Not Available
