2008 Aprilia Dorsoduro 750 - Gear Box Selector

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

SELECTOR DRUM

Part #: 849693
Currently Not Available
2

FORK

Part #: 849360
Currently Not Available
3

FORK

Part #: 849468
Currently Not Available
4

FORK SHAFT

Part #: 873772
Currently Not Available
5

INDEX ASSY. LEVER

Part #: 872154
Currently Not Available
6

SPRING

Part #: 871669
Currently Not Available
7

SCREW W/ FLANGE M6X15

Part #: AP9150006
Currently Not Available
8

SELECTOR LOCK PLATE

Part #: 871649
Currently Not Available
9

SCREW M5X12

Part #: 831153
Currently Not Available

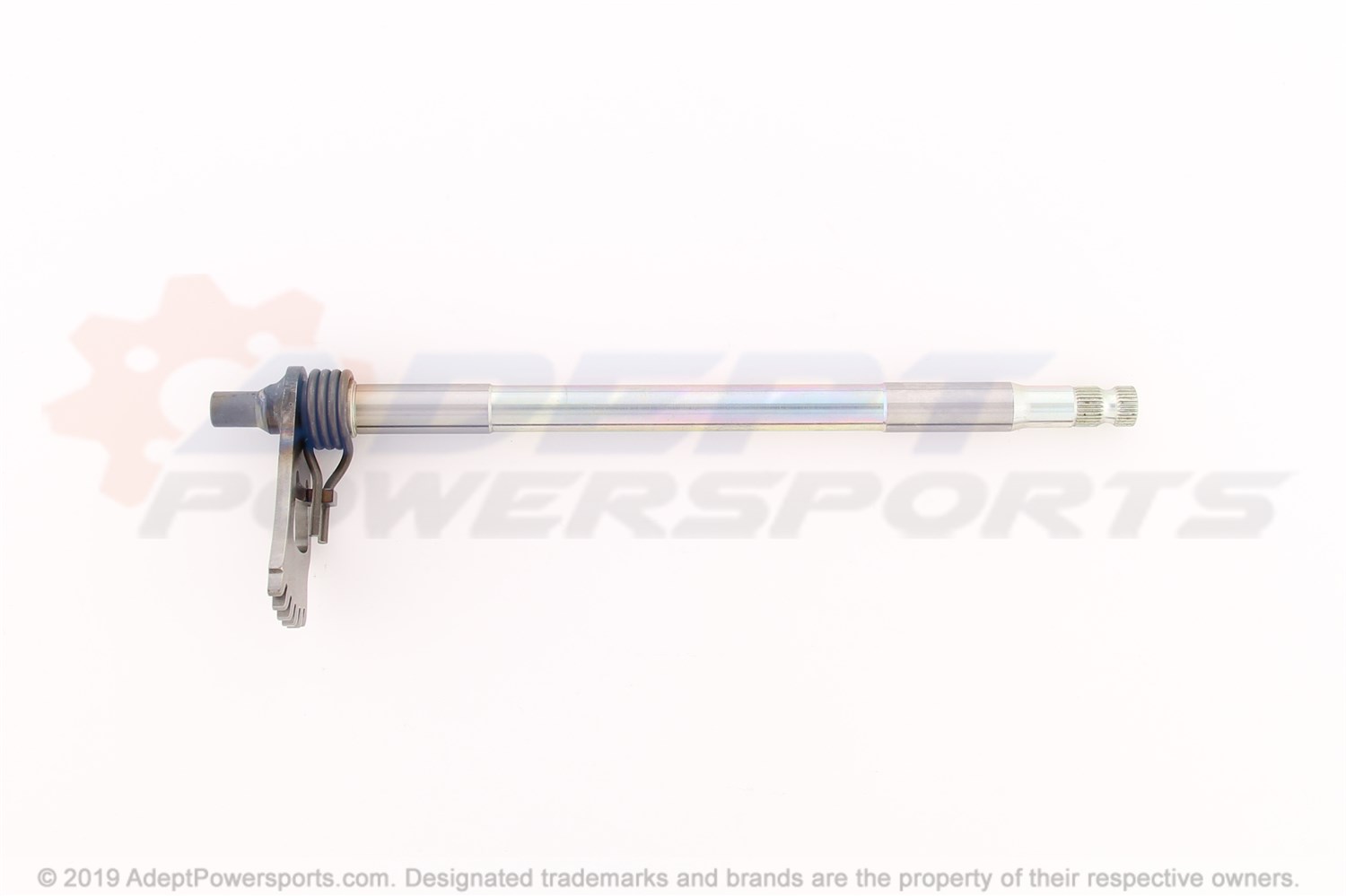

10

GEAR SHAFT+SPRING CPL.

Part #: 874129
Currently Not Available
11

FLAT WASHER 14X30X1

Part #: 971718
Currently Not Available
12

SPRING

Part #: 971719
Currently Not Available

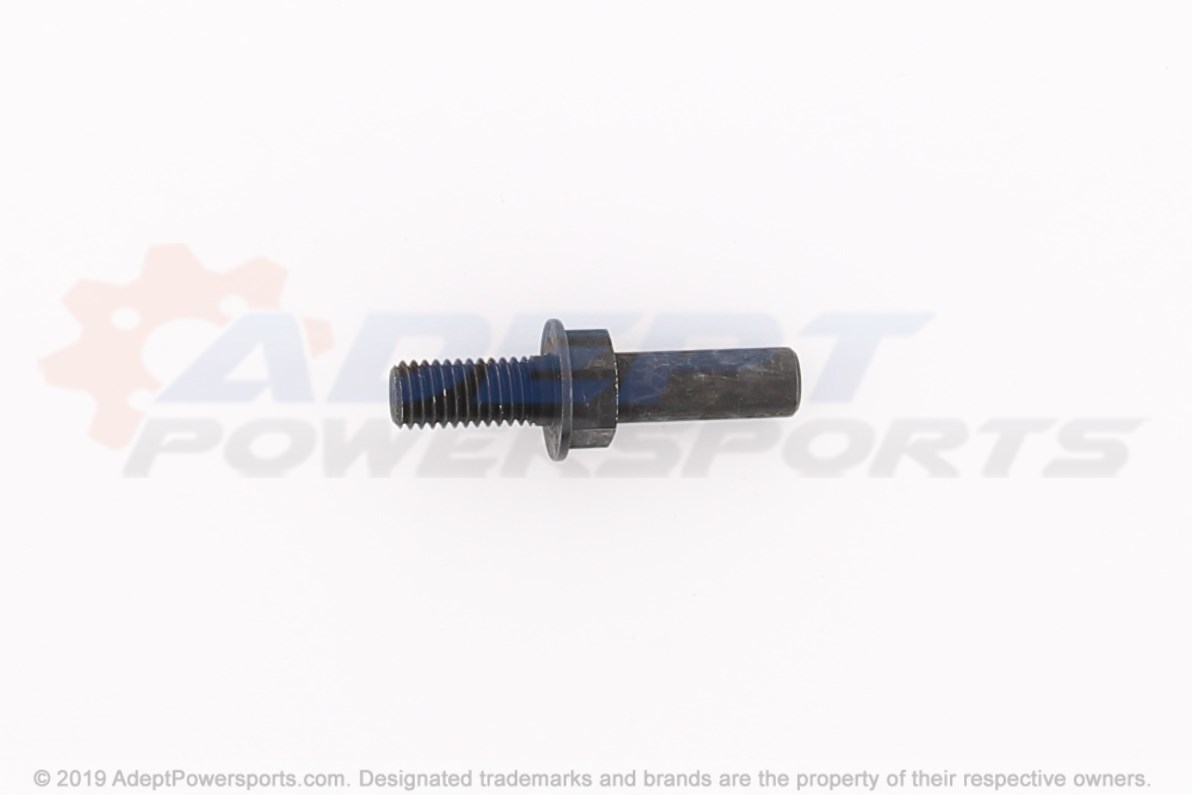

13

THREADED PIN M8X1,25

Part #: 872156
Currently Not Available
14

SHIFT CAM PLATE

Part #: 872560
Currently Not Available
15

SELECTOR DRUM

Part #: AP9150067
Currently Not Available
16

LEVER

Part #: AP9150069
Currently Not Available
17

SPRING

Part #: AP9150064
Currently Not Available
18

SPRING PILLAR

Part #: AP9150070
Currently Not Available
19
Currently Not Available
20

HEX SOCKET SCREW M5X12

Part #: 844211
Currently Not Available
21

O-RING D23,52X1,78

Part #: AP9150479
Currently Not Available
22

SENSOR

Part #: 58188R
Currently Not Available
23

SPACER

Part #: 974558
Currently Not Available
24

GASKET OR

Part #: 871901
Currently Not Available
25

SELECTOR LOCK

Part #: 974130
Currently Not Available
26

SPRING

Part #: 873695
Currently Not Available
27

SPRING PILLAR

Part #: AP9150003
Currently Not Available
