Steering, Tie Rods And Lower Asm. - A09gp52aa replacement parts for 2009 Polaris Outlaw 525 IRS (A09GP52AA)

OEM Parts Polaris 2009 Polaris Outlaw 525 IRS (A09GP52AA) Steering, Tie Rods And Lower Asm. - A09gp52aa

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

-	ASSEMBLY, TIE, ROD Part #: 1823523 Required per assembly: 2 Note: Asm., Tie Rod [Incl. 5-9] Currently Not Available
1	PIN COTTER Part #: 7661203 Required per assembly: 2 ~~$1.99~~ $1.15 - + Add to cart
2	NUT, FLANGE Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
3	WASHER Part #: 7555806 Required per assembly: 2 ~~$1.99~~ $1.15 - + Add to cart
4	BOLT, CARRIAGE Part #: 7518564 Required per assembly: 2 Currently Not Available
5	END, ROD, RH Part #: 7061171 Required per assembly: 2 Currently Not Available
6	NUT, JAM, RH Part #: 7547390 Required per assembly: 2 Note: Nut, Jam, RH [If built after 1/01/07] Currently Not Available
7	END, ROD, LH Part #: 7061170 Required per assembly: 2 Currently Not Available
8	NUT, JAM, LH Part #: 7547389 Required per assembly: 2 Note: Nut, Jam, LH [If built after 1/01/07] Currently Not Available

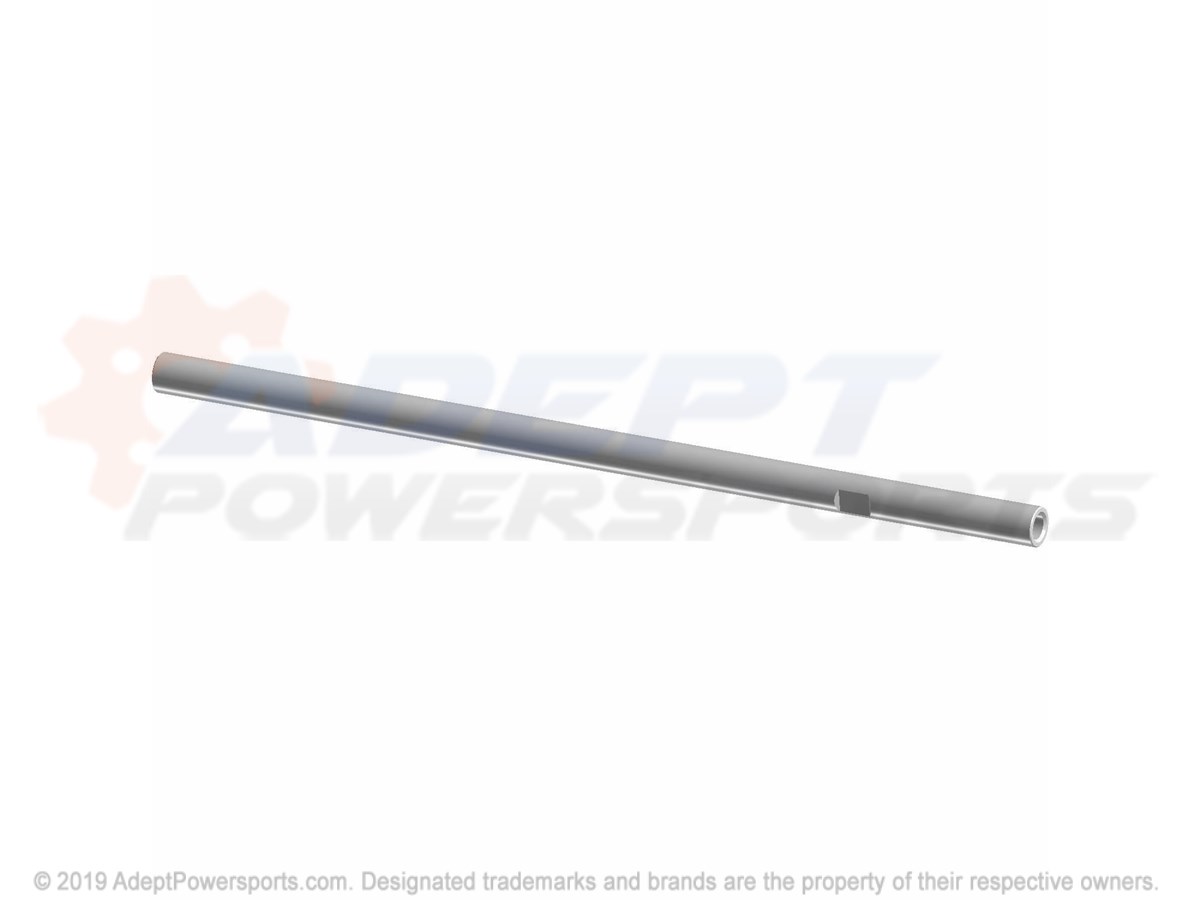

9	ROD, TIE Part #: 5136677 Required per assembly: 2 Currently Not Available
10	PIN, COTTER Part #: 7661011 Required per assembly: 2 Note: Pin, Cotter Currently Not Available
11	NUT, FLANGE Part #: 7547332 Required per assembly: 2 Note: Nut, Nylok Currently Not Available
