OEM Parts Polaris 2009 Polaris Outlaw 525 IRS (A09GP52AA) Suspension, Rear Shock Mounting - A09gp52aa

2009 Polaris Outlaw 525 IRS (A09GP52AA) - Suspension, Rear Shock Mounting - A09gp52aa

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 7547333 Nut, Flange

NUT, FLANGE

Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25
$3.74
$2.23
-
+
Add to cart
2
Polaris 5334876 Sleeve, Shock

SLEEVE, SHOCK

Part #: 5334876 Required per assembly: 2 Note: Sleeve
Currently Not Available
3

SHOCK, REAR

Part #: 7043453 Required per assembly: 2
Currently Not Available
4

SCREW, FLANGE

Part #: 7518559 Required per assembly: 2 Note: Bolt, Flange
Currently Not Available
5

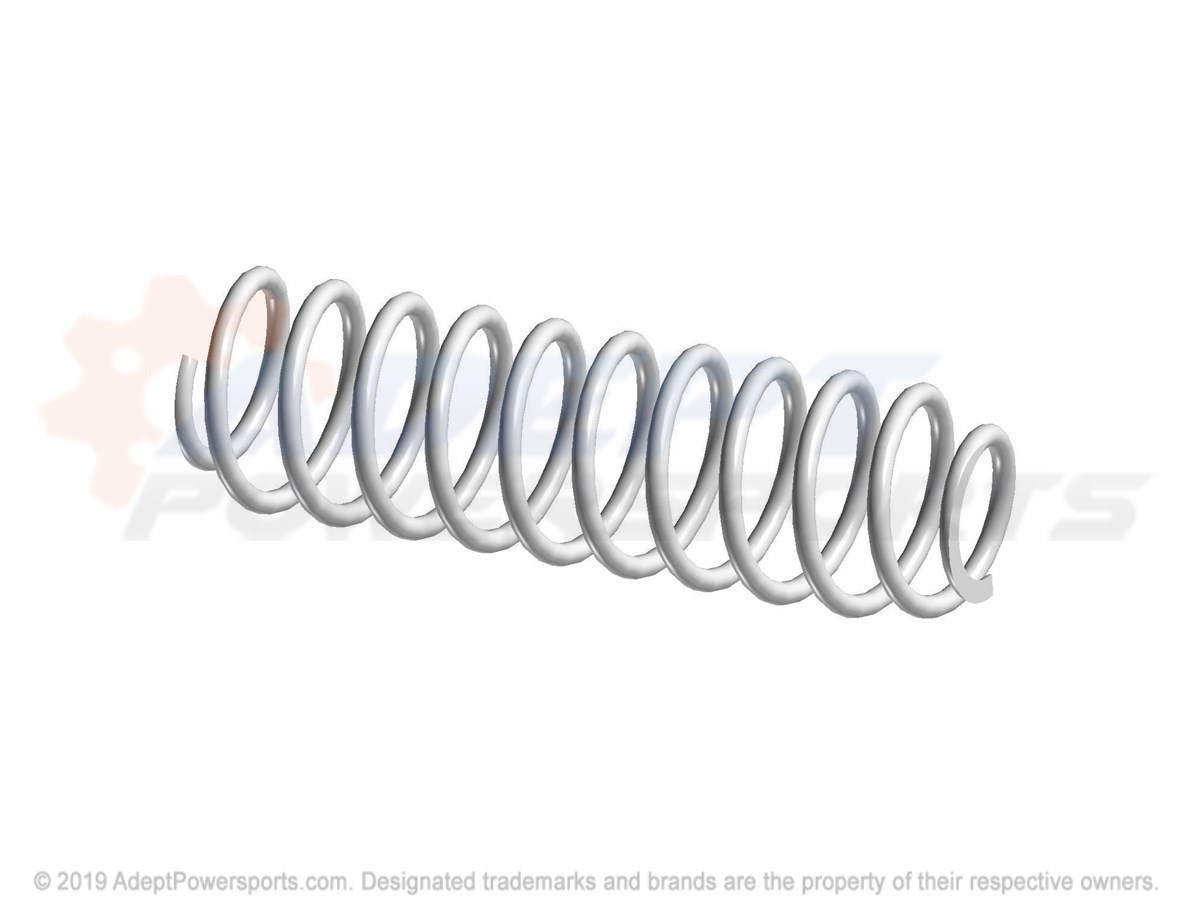

SPRING, COMPRESSION, 160#, INDY, RED

Part #: 7043480-293 Required per assembly: 2
Currently Not Available
6
Polaris 5436643 Spacer, Nylon

SPACER, NYLON

Part #: 5436643 Required per assembly: 4 Note: Spacer, Spring
Currently Not Available
7
Polaris 7043481-293 Spring, Compression, 160#, Indy, Red

SPRING, COMPRESSION, 160#, INDY, RED

Part #: 7043481-293 Required per assembly: 2
Currently Not Available
8
Polaris 5020618 Retainer, Spring, Slotted

RETAINER, SPRING, SLOTTED

Part #: 5020618 Required per assembly: 2
$41.86
$27.16
-
+
Add to cart
9
Polaris 5436470 Bushing, Clevis

BUSHING, CLEVIS

Part #: 5436470 Required per assembly: 4
Currently Not Available
10
Polaris 5334885 Sleeve, Outer

SLEEVE, OUTER

Part #: 5334885 Required per assembly: 2
Currently Not Available
11
Polaris 5334886 Sleeve, Inner

SLEEVE, INNER

Part #: 5334886 Required per assembly: 2
Currently Not Available
