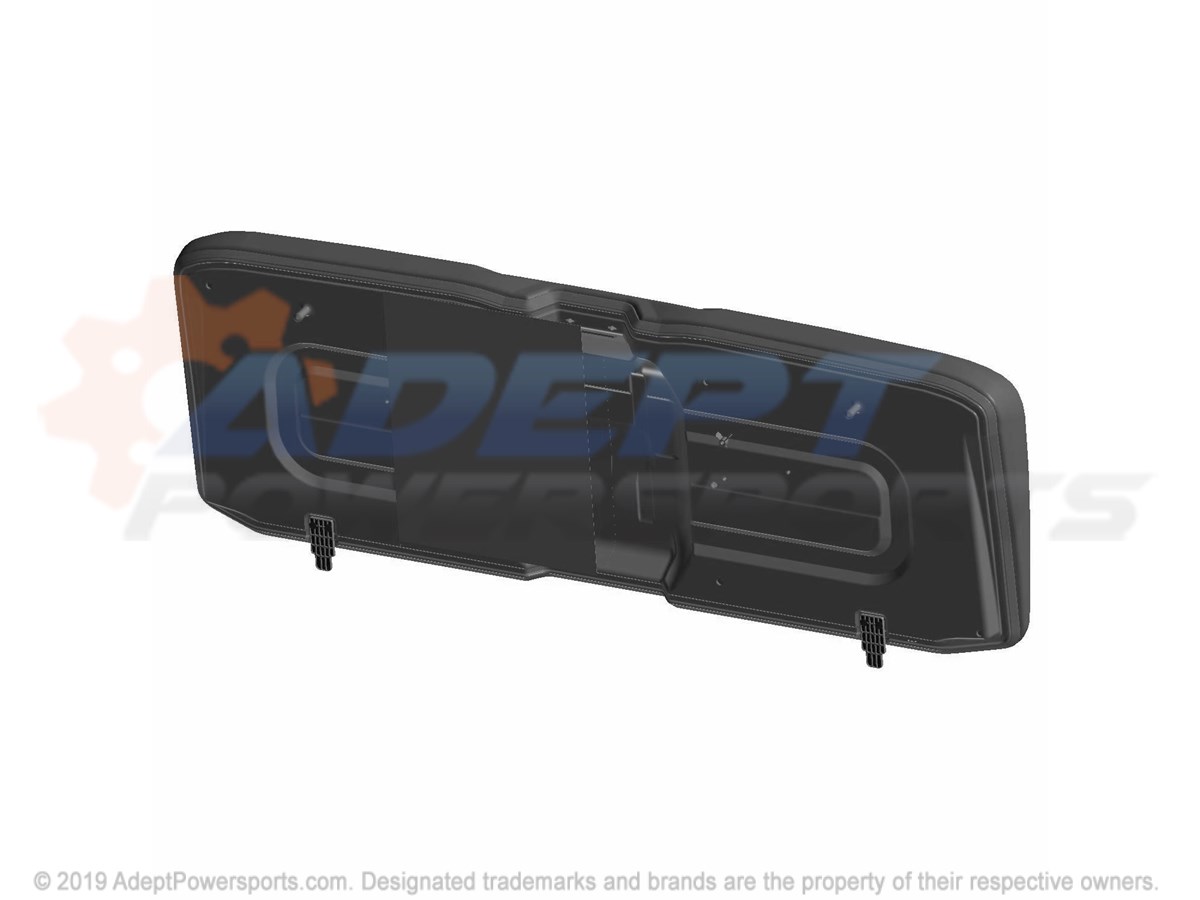

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 7518158 Screw

SCREW

Part #: 7518158 Required per assembly: 8
Currently Not Available
2

ASSEMBLY, SEAT, BACK, BLACK/SUEDE, METALLIC, [AV]

Part #: 2684375 Required per assembly: 1
Currently Not Available
2

ASSEMBLY, SEAT, BACK, BLACK/SILVER, [AB]

Part #: 2684269 Required per assembly: 1
Currently Not Available
2

ASSEMBLY, SEAT, BACK, BLACK/D., STEEL, [AN]

Part #: 2684255 Required per assembly: 1
Currently Not Available
2

ASM-SEAT RNGR BACK BLK/S.RED

Part #: 2684934 Required per assembly: 1
Currently Not Available
2
Polaris 2684912 Asm-Seat Rngr Back Browning

ASM-SEAT RNGR BACK BROWNING

Part #: 2684912 Required per assembly: 1
Currently Not Available
2
Polaris 2684885-070 Asm-Seat Rngr Back Blk

ASM-SEAT RNGR BACK BLK

Part #: 2684885-070 Required per assembly: 1
Currently Not Available
3
Polaris 2684884-070 Asm-Seat Rngr Btm Blk

ASM-SEAT RNGR BTM BLK

Part #: 2684884-070 Required per assembly: 1
Currently Not Available
3
Polaris 2685380 Assembly, Seat, Bottom, Black/S., Red, [Eaz][Eazc][6Az][6Azc]

ASSEMBLY, SEAT, BOTTOM, BLACK/S., RED, [EAZ][EAZC][6AZ][6AZC]

Part #: 2685380 Required per assembly: 1
Currently Not Available
3

ASSEMBLY, SEAT, BOTTOM, BTM, BROWNING, [AL][AS]

Part #: 2685382 Required per assembly: 1 Note: Asm., Seat, Bottom, Browning [AL]
Currently Not Available
3

ASM-SEAT RNGR BTM BLK SUEDE M

Part #: 2685384 Required per assembly: 1
Currently Not Available
3

ASSEMBLY, SEAT, BOTTOM, BTM, BLACK/SILVER, [AB]

Part #: 2684272 Required per assembly: 1
Currently Not Available
3
Polaris 2684256 Assembly, Seat, Bottom, Btm, Black/D., Steel, [An]

ASSEMBLY, SEAT, BOTTOM, BTM, BLACK/D., STEEL, [AN]

Part #: 2684256 Required per assembly: 1
Currently Not Available
4
Polaris 5812959 Foil

FOIL

Part #: 5812959 Required per assembly: 1
Currently Not Available
5

BASE, CAB/SEAT, BLACK

Part #: 1016228-067 Required per assembly: 1
Currently Not Available
6
Polaris 5412507 Grommet

GROMMET

Part #: 5412507 Required per assembly: 2
Currently Not Available
7

ASSEMBLY, SEAT, BELT

Part #: 2632421 Required per assembly: 2
Currently Not Available
8
Polaris 7512539 Bolt

BOLT

Part #: 7512539 Required per assembly: 4 Note: Bolt
Currently Not Available
9

NUT, NYLOCK

Part #: 7542525 Required per assembly: 4 Note: Nut, Nylok
Currently Not Available
10

ASM-SEAT, BELT, 2PT, CENTER

Part #: 2635053 Required per assembly: 1
Currently Not Available
11

COVER, SEAT, PANEL, LOWER

Part #: 5437819-070 Required per assembly: 1
Currently Not Available
12
Polaris 7512084 Screw

SCREW

Part #: 7512084 Required per assembly: 4 Note: Screw
$2.99
$1.73
-
+
Add to cart
