OEM Parts Polaris 2009 Polaris RANGER 4X4 700 EFI ALL OPTIONS (R09HH68/HY68) Engine, Exhaust - R09hh68/Hy68 All Options

2009 Polaris RANGER 4X4 700 EFI ALL OPTIONS (R09HH68/HY68) - Engine, Exhaust - R09hh68/Hy68 All Options

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 1262047-489 Silencer, Black

SILENCER, BLACK

Part #: 1262047-489 Required per assembly: 1
Currently Not Available
2
Polaris 5414307 Grommet-Silencer Mount

GROMMET-SILENCER MOUNT

Part #: 5414307 Required per assembly: 1
Currently Not Available
3
Polaris 5436598 Grommet, Silencer, Mount

GROMMET, SILENCER, MOUNT

Part #: 5436598 Required per assembly: 2
Currently Not Available
4
Polaris 7556230 Washer, Clean, Out

WASHER, CLEAN, OUT

Part #: 7556230 Required per assembly: 2 Note: Washer
$1.99
$1.15
-
+
Add to cart
5
Polaris 7512666 Bolt

BOLT

Part #: 7512666 Required per assembly: 2
Currently Not Available
6
Polaris 7041804 Spring-Exhaust

SPRING-EXHAUST

Part #: 7041804 Required per assembly: 4 Note: Spring, Exhaust
Currently Not Available
7
Polaris 5243518 Seal, Exhaust

SEAL, EXHAUST

Part #: 5243518 Required per assembly: 1 Note: Seal, Exhaust
Currently Not Available
8

TUBE, EXHAUST, BLACK

Part #: 1262029-489 Required per assembly: 1
Currently Not Available
9
Polaris 5252883 Shield, Heat, Exhaust, Rear

SHIELD, HEAT, EXHAUST, REAR

Part #: 5252883 Required per assembly: 1
Currently Not Available
10
Polaris 5249821 Shield

SHIELD

Part #: 5249821 Required per assembly: 1 Note: Shield, Heat, Top
Currently Not Available
11
Polaris 7042029 Spring-Exhaust

SPRING-EXHAUST

Part #: 7042029 Required per assembly: 1
Currently Not Available
12
Polaris 7518490 Screw

SCREW

Part #: 7518490 Required per assembly: 8 Note: Screw, Flange
Currently Not Available
13
Polaris 7555935 Washer

WASHER

Part #: 7555935 Required per assembly: 8 Note: Washer, Flat
Currently Not Available
14
Polaris 5252215 Shield, Exhaust, Manifold

SHIELD, EXHAUST, MANIFOLD

Part #: 5252215 Required per assembly: 1
Currently Not Available
15

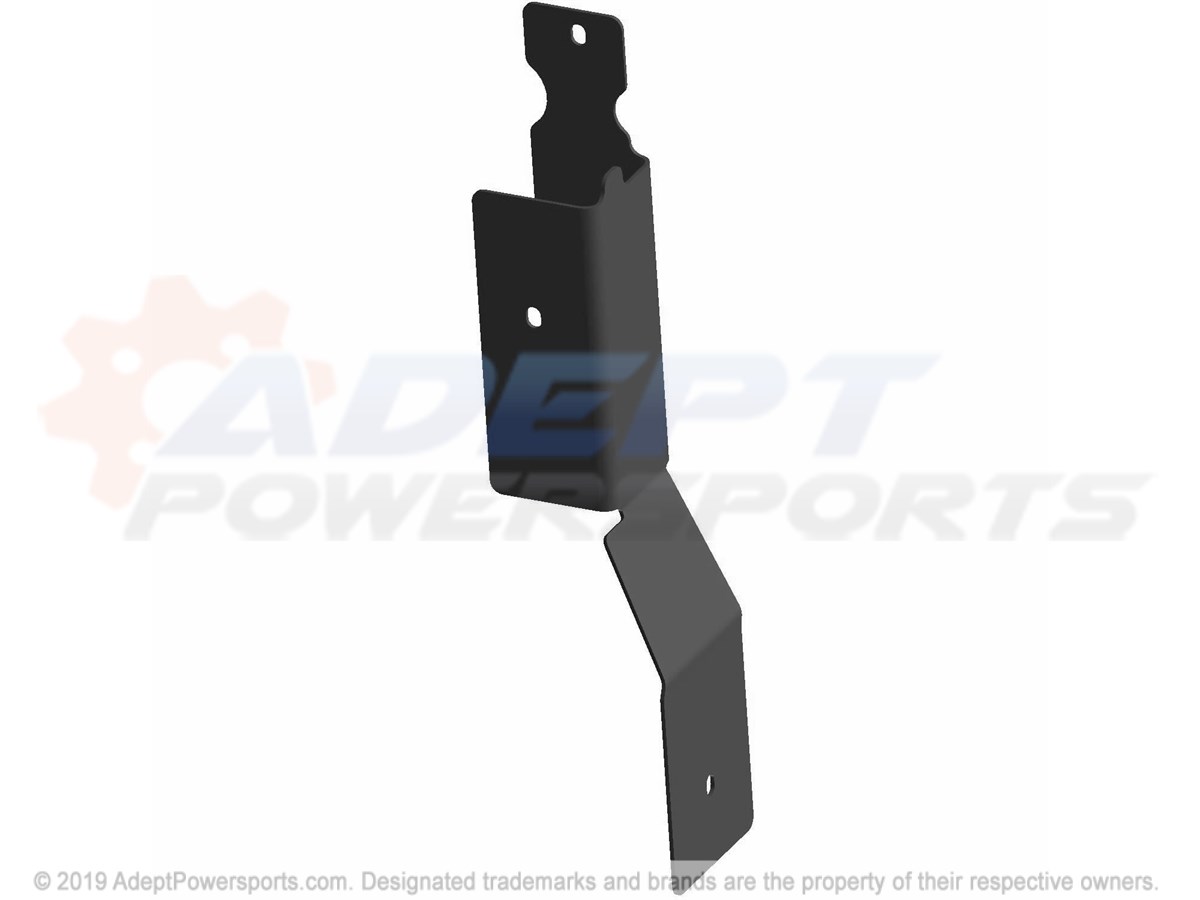

Polaris 3021522 Mount, Torque, Stop

MOUNT, TORQUE, STOP

Part #: 3021522 Required per assembly: 1 Note: Mount, Torque Stop
Currently Not Available
16

NUT HEX

Part #: 7542301 Required per assembly: 2
Currently Not Available
17
Polaris 7547101 Nutsert-5/16-18(.027-.150), Hxy

NUTSERT-5/16-18(.027-.150), HXY

Part #: 7547101 Required per assembly: 1 Note: Nutsert
Currently Not Available
18
Polaris 7518513 Screw

SCREW

Part #: 7518513 Required per assembly: 1
Currently Not Available
20
Polaris 7041687 Spring, Exhaust

SPRING, EXHAUST

Part #: 7041687 Required per assembly: 1
$3.99
$2.30
-
+
Add to cart
21
Polaris 3610047 Seal, Exhaust

SEAL, EXHAUST

Part #: 3610047 Required per assembly: 2
Currently Not Available
22
Polaris 7041789 Spring-Exhaust

SPRING-EXHAUST

Part #: 7041789 Required per assembly: 2 Note: Spring, Exhaust
$6.99
$4.03
-
+
Add to cart
23
Polaris 1262037-489 Pipe, Exhaust, Black

PIPE, EXHAUST, BLACK

Part #: 1262037-489 Required per assembly: 1
Currently Not Available
24
Polaris 5811511 Gasket, Exhaust

GASKET, EXHAUST

Part #: 5811511 Required per assembly: 1 Note: Gasket
Currently Not Available
25
Polaris 1261938-489 Manifold

MANIFOLD

Part #: 1261938-489 Required per assembly: 1 Note: Manifold, Black
Currently Not Available
26
Polaris 7518984 Screw

SCREW

Part #: 7518984 Required per assembly: 4
Currently Not Available
27

MOUNT, TORQUE, STOP

Part #: 3022114 Required per assembly: 1
Currently Not Available
