Suspension, Front Control Arms - R09vh76ax replacement parts for 2009 Polaris RANGER RZR S 800 EFI (R09VH76AX)

OEM Parts Polaris 2009 Polaris RANGER RZR S 800 EFI (R09VH76AX) Suspension, Front Control Arms - R09vh76ax

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

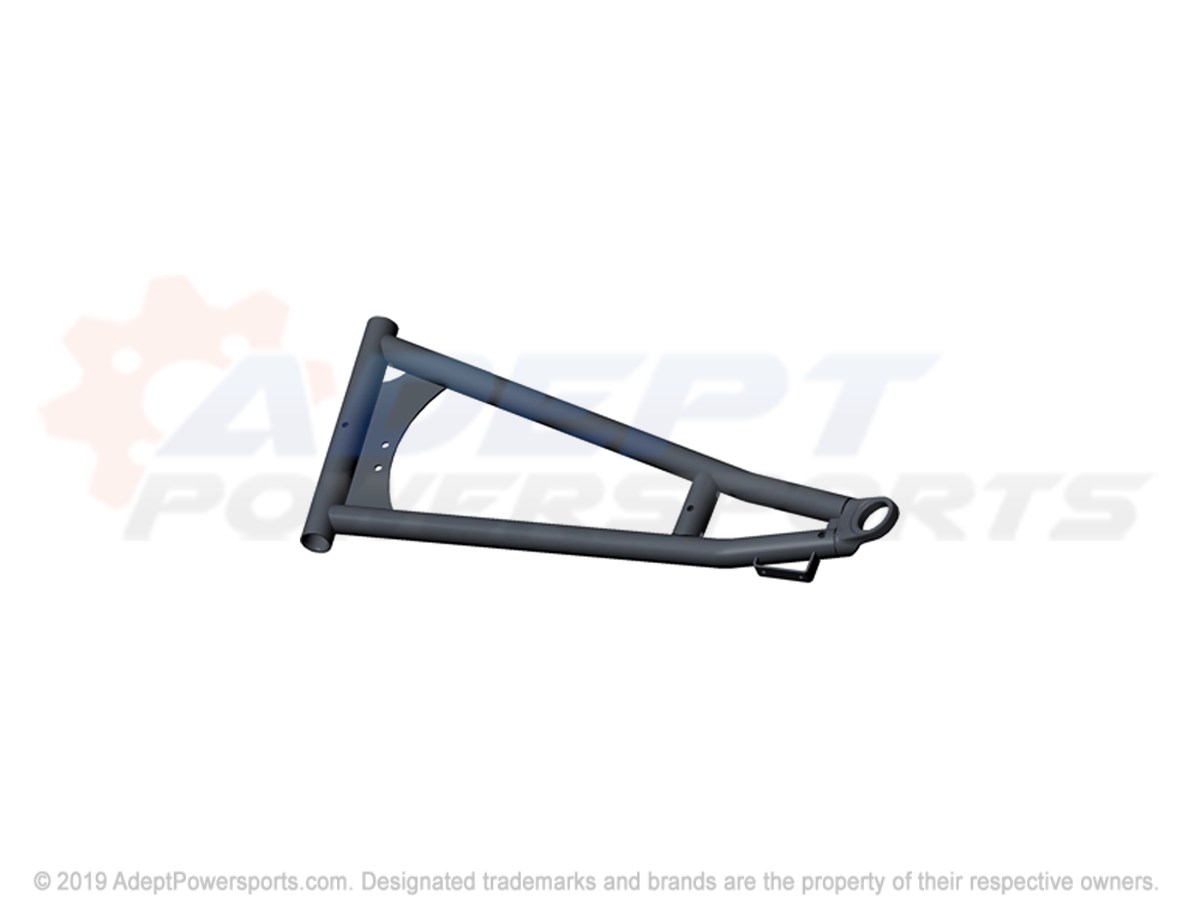

1	ARM, CONTROL, UPPER, FRONT, SILVER, LH Part #: 1018209-385 Required per assembly: 1 Currently Not Available

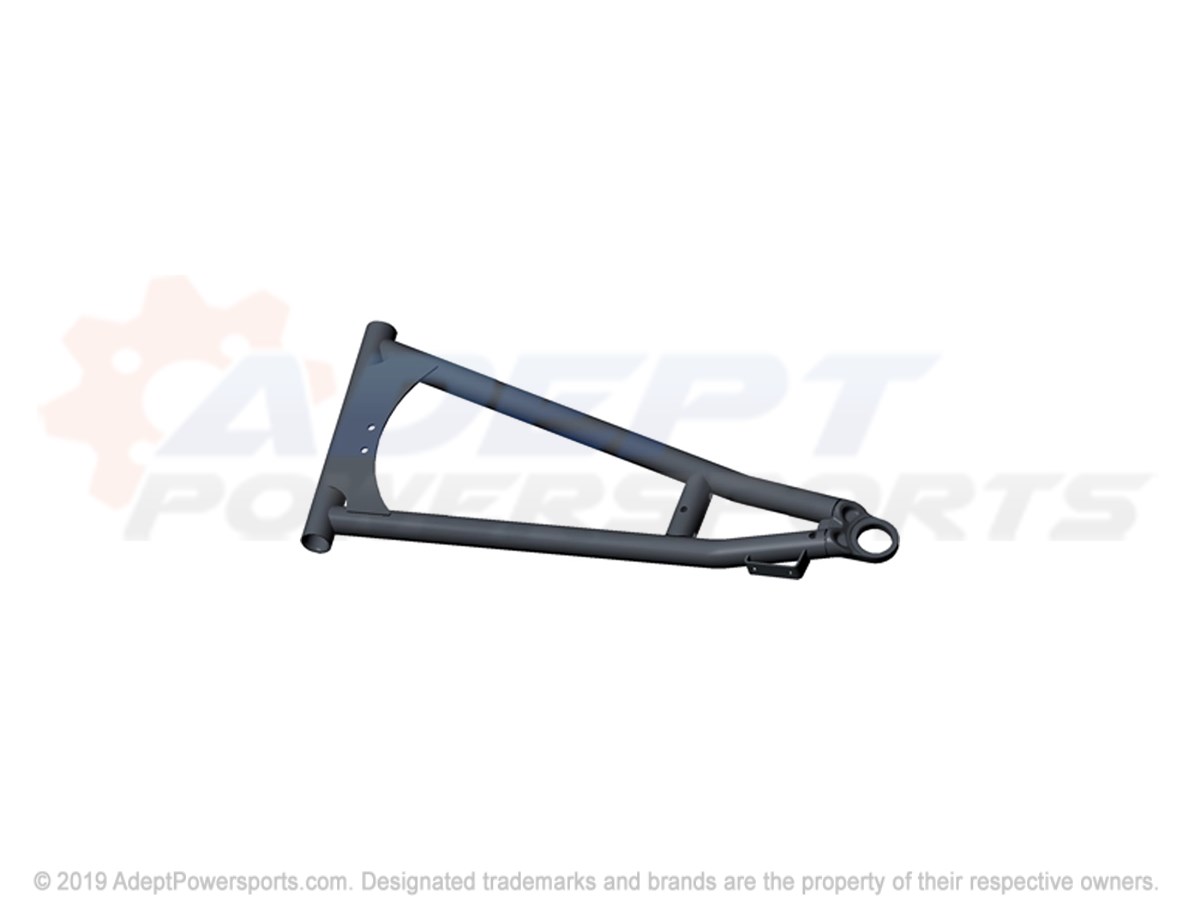

2	ARM, CONTROL, UPPER, FRONT, SILVER, RH Part #: 1018210-385 Required per assembly: 1 Currently Not Available
3	ARM, CONTROL, LOWER, FRONT, SILVER, LH Part #: 1018211-385 Required per assembly: 1 Currently Not Available
4	ARM, CONTROL, LOWER, FRONT, SILVER, RH Part #: 1018212-385 Required per assembly: 1 Currently Not Available
5	TUBE, PIVOT Part #: 5136324 Required per assembly: 4 Currently Not Available
6	BUSHING, A-ARM, LONG, GREY Part #: 5436973 Required per assembly: 8 Note: Bushing, A-Arm, Long ~~$10.99~~ $6.33 - + Add to cart
7	ZERK, FITTING, THREADED Part #: 7080433 Required per assembly: 4 ~~$2.99~~ $1.73 - + Add to cart
8	SHIELD, CV, FRONT, BLACK, LH Part #: 5436620-070 Required per assembly: 1 Currently Not Available
9	SCREW Part #: 7512084 Required per assembly: 4 Note: Screw ~~$2.99~~ $1.73 - + Add to cart
10	BALL-JOINT, 8MM, 5140 Part #: 7061220 Required per assembly: 4 Currently Not Available
11	RING, RETAINER Part #: 7710533 Required per assembly: 4 Currently Not Available
12	SCREW, FLANGED Part #: 7519087 Required per assembly: 4 Currently Not Available
13	NUT, FLANGE Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
14	NUT, NYLOK Part #: 7547405 Required per assembly: 4 Currently Not Available
15	SCREW, FLANGE Part #: 7516733 Required per assembly: 4 Currently Not Available
16	SHIELD, CV, FRONT, BLACK, RH Part #: 5437246-070 Required per assembly: 1 Currently Not Available
17	WASHER, FLAT Part #: 7556153 Required per assembly: 4 Note: Washer ~~$3.99~~ $2.30 - + Add to cart
