2009 Polaris RANGER RZR S 800 EFI (R09VH76AX) - Suspension, Front Shock Mounting - R09vh76ax

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 7547313 Nut, Flange

NUT, FLANGE

Part #: 7547313 Required per assembly: 4
$2.79
$1.73
-
+
Add to cart
2
Polaris 5020618 Retainer, Spring, Slotted

RETAINER, SPRING, SLOTTED

Part #: 5020618 Required per assembly: 2
$41.86
$27.16
-
+
Add to cart
3
Polaris 7518474 Screw, Flange

SCREW, FLANGE

Part #: 7518474 Required per assembly: 4 Note: Bolt
$5.99
$2.30
-
+
Add to cart
4
Polaris 7043425-293 Spring, Compression, Front, Lt, Indy, Red

SPRING, COMPRESSION, FRONT, LT, INDY, RED

Part #: 7043425-293 Required per assembly: 2
Currently Not Available
5
Polaris 5436643 Spacer, Nylon

SPACER, NYLON

Part #: 5436643 Required per assembly: 4 Note: Spacer, Spring
Currently Not Available
6

SHOCK, FRONT, LT

Part #: 7043422 Required per assembly: 2
Currently Not Available
7
Polaris 5334876 Sleeve, Shock

SLEEVE, SHOCK

Part #: 5334876 Required per assembly: 4 Note: Sleeve
Currently Not Available
8

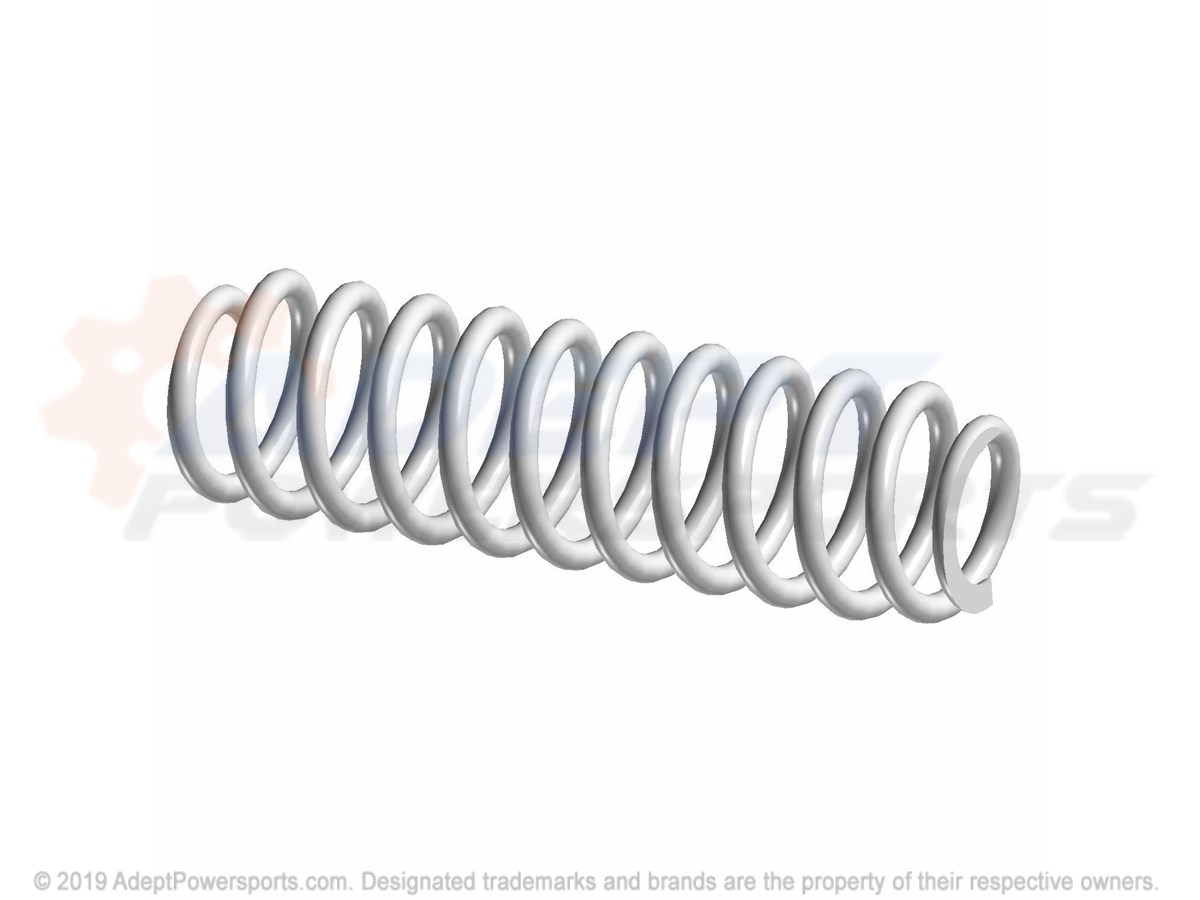

Polaris 7043227-293 Spring, 60#, Indy, Red

SPRING, 60#, INDY, RED

Part #: 7043227-293 Required per assembly: 2 Note: Spring, Compression, Indy Red, 60#
Currently Not Available
