Electrical, Battery - A09lh46aq/Ax/Az replacement parts for 2009 Polaris Sportsman 400 HO 4X4 (A09LH46AQ/AX/AZ)

OEM Parts Polaris 2009 Polaris Sportsman 400 HO 4X4 (A09LH46AQ/AX/AZ) Electrical, Battery - A09lh46aq/Ax/Az

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	SCREW Part #: 7512024 Required per assembly: 2 Currently Not Available

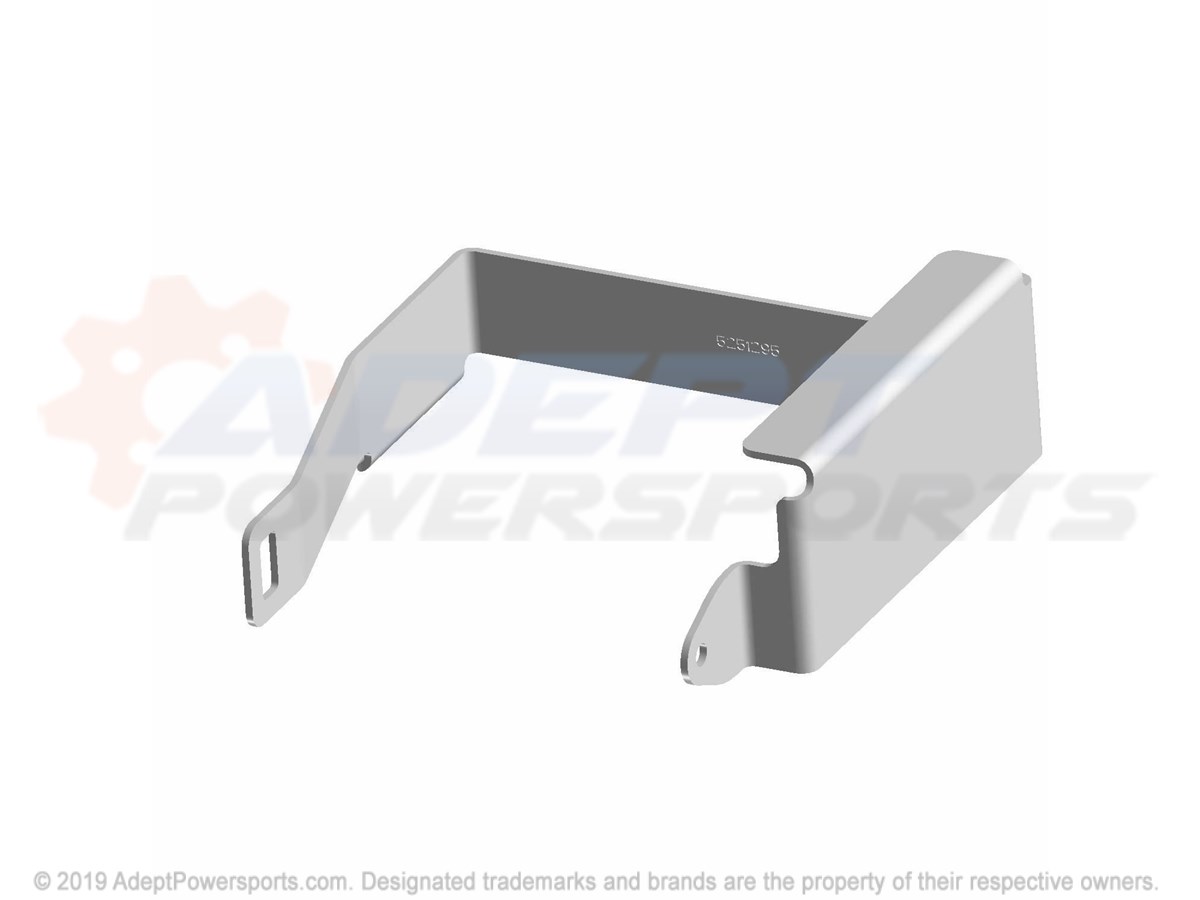

2	BRACKET, BATTERY Part #: 5251289-329 Required per assembly: 1 Currently Not Available
3	STRAP PANDUIT Part #: 7080138 Required per assembly: 4 ~~$1.99~~ $1.15 - + Add to cart
4	CABLE, BLACK, BATTERY Part #: 4012133 Required per assembly: 1 Currently Not Available

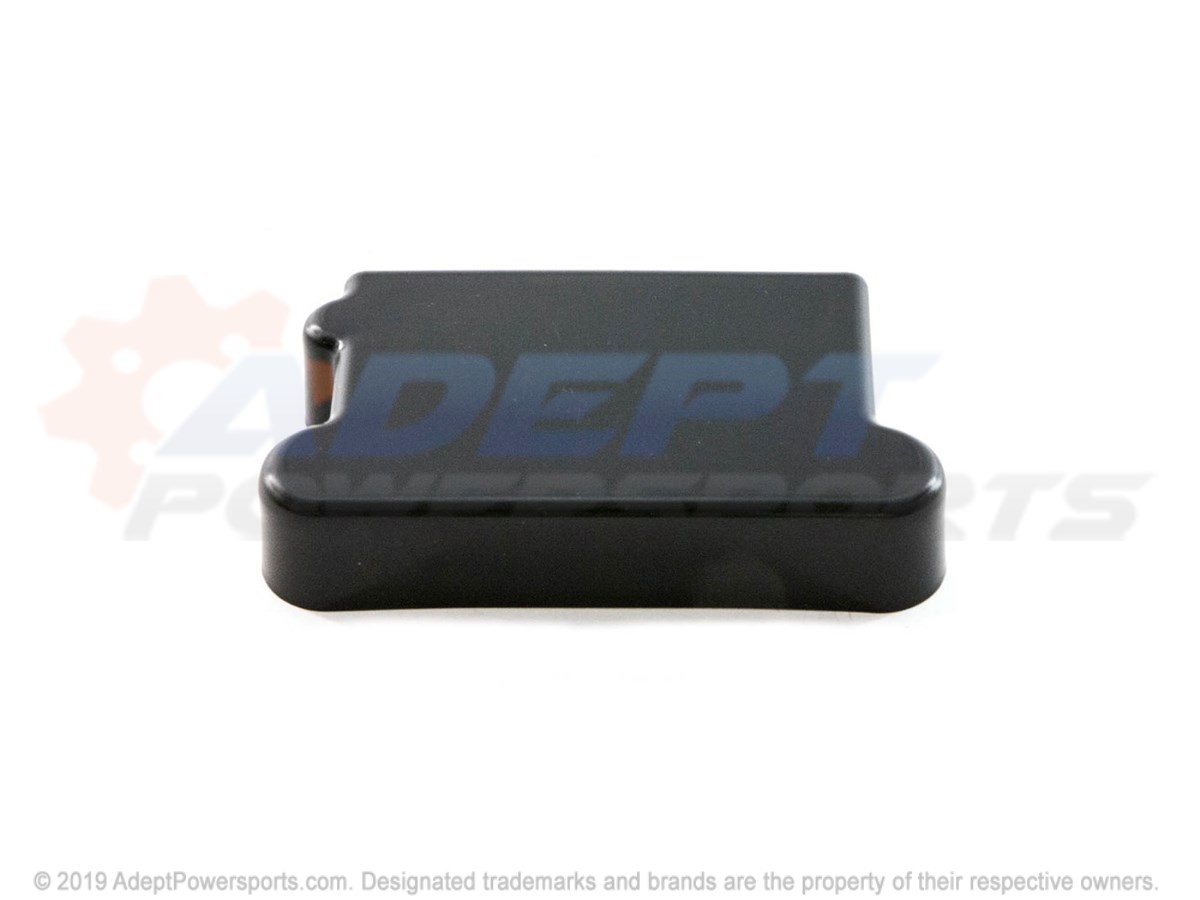

5	COVER, BATTERY, W/FOAM Part #: 2633661 Required per assembly: 1 Currently Not Available
6	BRACKET, BATTERY, STRAP Part #: 5251295 Required per assembly: 1 Currently Not Available
7	SCREW Part #: 7517653 Required per assembly: 2 Currently Not Available
8	BATTERY Part #: 4011138 Required per assembly: 1 Note: Battery [AA] Currently Not Available
9	PAD, BATTERY Part #: 5810290 Required per assembly: 2 Currently Not Available
10	STRAP, BLACK, WEATHER-RESIST. Part #: 7080492 Required per assembly: 1 Currently Not Available
11	SOLENOID, STARTER Part #: 4012013 Required per assembly: 1 Currently Not Available
12	NUT, FLANGE Part #: 7547270 Required per assembly: 2 Note: Nut, Hex Currently Not Available
13	CABLE, RED, BATTERY/SOLENOID Part #: 4012390 Required per assembly: 1 Note: Cable, Red, Battery/Solenoid Currently Not Available
14	SCREW Part #: 7518529 Required per assembly: 4 ~~$2.99~~ $1.73 - + Add to cart
15	CLIP, SILENCER, Part #: 7670102 Required per assembly: 2 Note: Clip Currently Not Available
