Engine, Starting System - A09lh46aq/Ax/Az replacement parts for 2009 Polaris Sportsman 400 HO 4X4 (A09LH46AQ/AX/AZ)

OEM Parts Polaris 2009 Polaris Sportsman 400 HO 4X4 (A09LH46AQ/AX/AZ) Engine, Starting System - A09lh46aq/Ax/Az

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

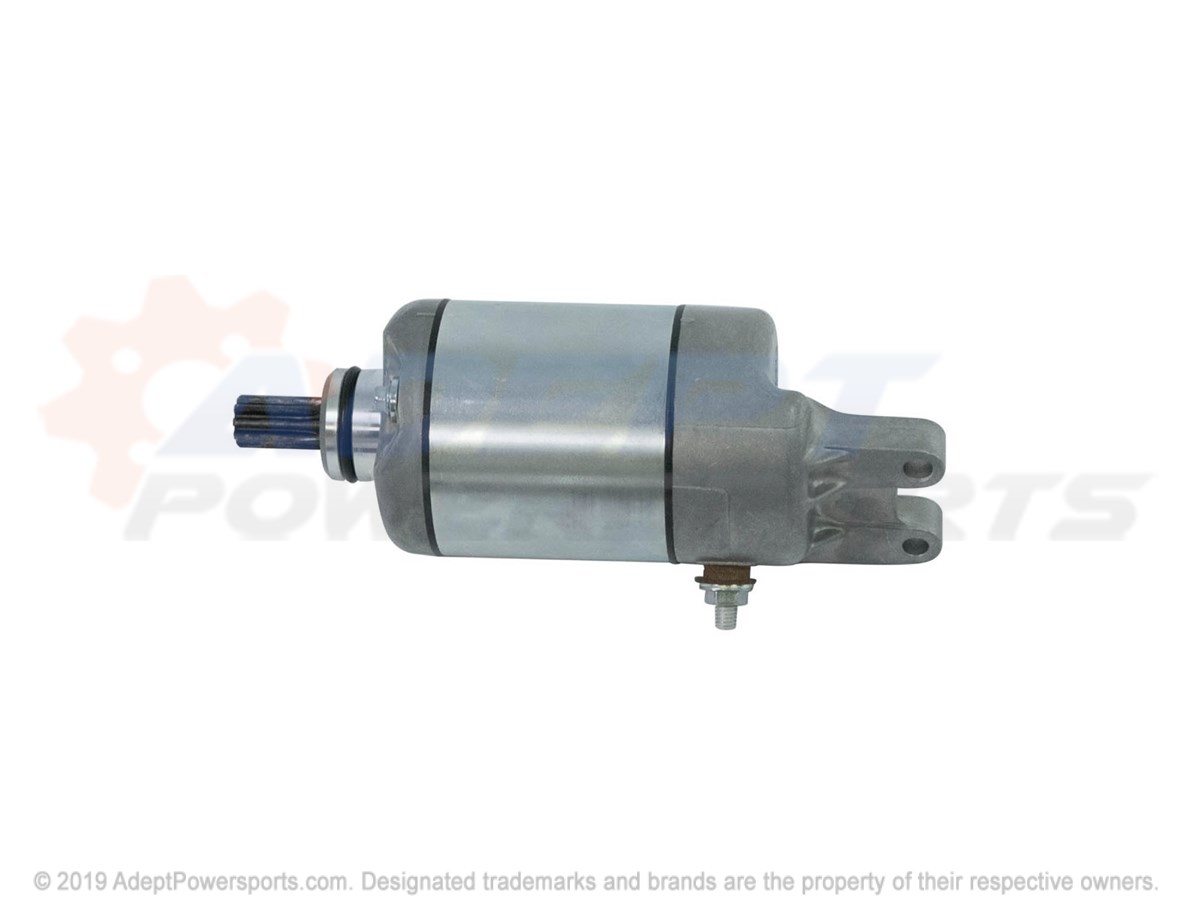

1	MOTOR, STARTING, COMPLETE Part #: 3090191 Required per assembly: 1 Note: Motor, Starting, Complete [Incl. 3-5,7-11,17,18] Currently Not Available
2	ASSEMBLY, GEAR, SHFT Part #: 3090034 Aftermarket alternatives available Required per assembly: 1 Note: GEAR SHAFT ASM. Substituted by 3085394 (Incl. 14, 17-21) Currently Not Available
3	COVER, FRONT, STARTER(MAGNUM), * Part #: 3085033 Required per assembly: 1 Note: Asm., Front Bracket [Incl. 9] Currently Not Available
4	BOLT, ASM, SET Part #: 3084983 Required per assembly: 2 Note: Asm., Bolt Set [Incl. 4] Currently Not Available
5	ASSEMBLY, BRACKET, REAR Part #: 3090075 Required per assembly: 1 Currently Not Available
6	BOLT, FLANGE Part #: 3084874 Required per assembly: 2 Currently Not Available
7	ARMATURE ASM. Part #: 3085353 Required per assembly: 1 Note: Asm., Armature Currently Not Available
8	WASHER SET Part #: 3084982 Required per assembly: 1 Currently Not Available
9	O-RING Part #: 3240114 Required per assembly: 1 Currently Not Available
10	BRUSH, SET, CARBON Part #: 3088169 Required per assembly: 1 Note: BRUSH,COMPL.2-POLE * Currently Not Available
11	RING, RUBBER, ("J", MODEL, ONLY) Part #: 3084405 Required per assembly: 2 Note: RING, RUBBER ~~$5.99~~ $3.51 - + Add to cart
12	WASHER, THRUST Part #: 7555908 Required per assembly: 1 Note: WASHER, GEARSHAFT Substituted by 7555908 Currently Not Available
13	CLIP ("J" MODEL ONLY) Part #: 3084412 Required per assembly: 1 Note: CLIP Currently Not Available
14	SPRING, WEIGHT, ("J", MODEL, ONLY) Part #: 3084411 Required per assembly: 1 Note: SPRING, WEIGHT Currently Not Available
15	SPRING, RETURN, ("J", MODEL, ONLY) Part #: 3084410 Required per assembly: 1 Note: SPRING, RETURN Currently Not Available
16	CLIP ("J" MODEL ONLY) Part #: 3084409 Required per assembly: 1 Note: CLIP Currently Not Available
17	NUT, FLANGE Part #: 3083649 Required per assembly: 1 Note: Sold in multiples of 10 only Currently Not Available
18	O-RING ("J" MODEL ONLY) Part #: 3084408 Required per assembly: 3 Note: O-RING Currently Not Available
19	WASHER Part #: 7558301 Required per assembly: 1 ~~$1.99~~ $1.15 - + Add to cart
20	NUT, FLANGE Part #: 3083856 Required per assembly: 1 Note: Sold in multiples of 10 only Currently Not Available
