OEM Parts Bmw 2010-2012 Bmw S1000RR 12+ (K46) Cable Harness

2010-2012 Bmw S1000RR 12+ (K46) 10/10-03/12 USA - Cable Harness

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
01

MAIN WIRING HARNESS

Part #: 61118527762 Required per assembly: 1 Note: NOT FOR VEHICLES WITH RACE ABS (CODE: X128A) AND RACE ABS + DTC (CODE: X129A)
Currently Not Available
01

MAIN WIRING HARNESS

Part #: 61118527763 Required per assembly: 1 Note: FOR VEHICLES WITH RACE ABS (CODE: X128A) OR RACE ABS + DTC (CODE: X129A)
Currently Not Available
02

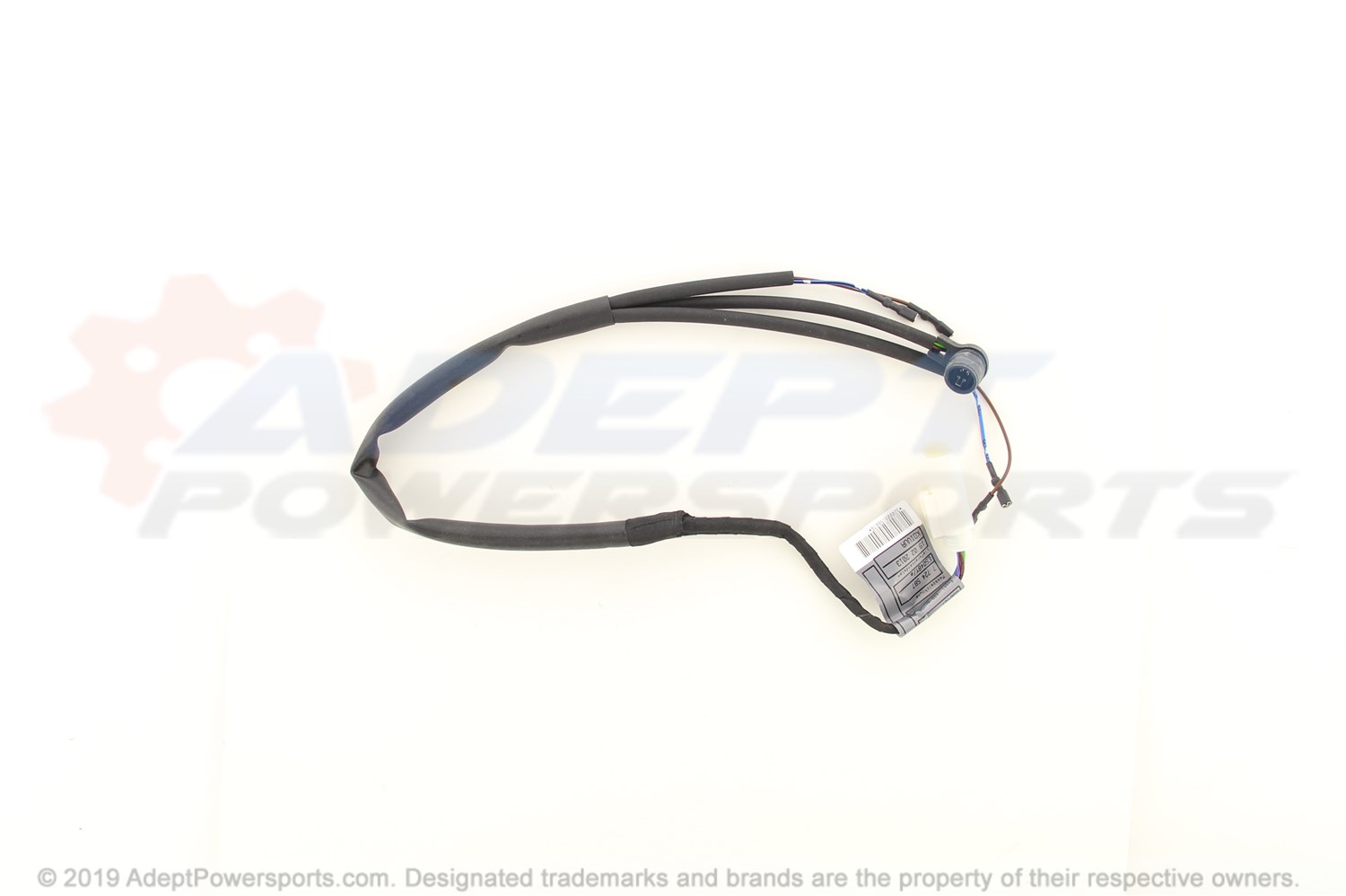

TAIL PART WIRING HARNESS

Part #: 61117724588 Required per assembly: 1
Currently Not Available
02

TAIL PART WIRING HARNESS

Part #: 61117724590 Required per assembly: 1
Not Available
03

ENGINE WIRING HARNESS

Part #: 12518527765 Required per assembly: 1
Currently Not Available
04

HEX BOLT M5X7 - U1-8.8 ZNNIV SI

Part #: 07119905267 Required per assembly: 1
Currently Not Available
05

FILLISTER HEAD SCREW - ISA M6X12

Part #: 07147691336 Required per assembly: 1 Note: GROUND CABLE, CYLINDER HEAD
Currently Not Available
