Front Wheel Brake replacement parts for 2010-2012 BMW S1000RR 12+ (K46)

OEM Parts Bmw 2010-2012 Bmw S1000RR 12+ (K46) Front Wheel Brake

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

01	CALIPER WITH OUT BRAKE PADS LEFT Part #: 34117714783 Required per assembly: 1 Currently Not Available
01	CALIPER WITH OUT BRAKE PADS RIGHT Part #: 34117714784 Required per assembly: 1 Currently Not Available

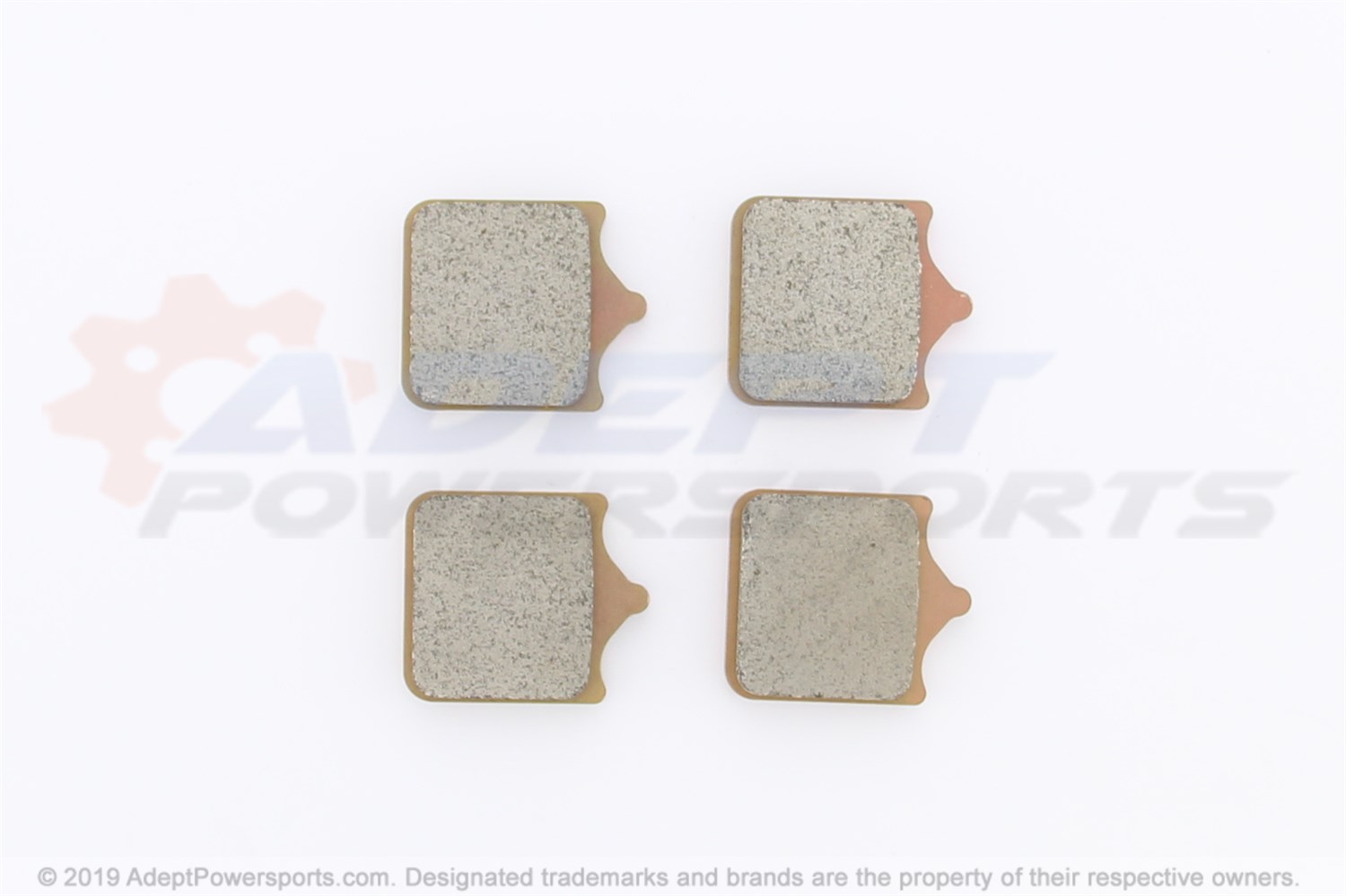

02	SET: SET OF BRAKE PADS, SINTERED METAL Part #: 34117714800 Required per assembly: 2 Currently Not Available
03	HEXAGON-HEAD BOLT WITH SHANK - M10X65 Part #: 34117719823 Required per assembly: 4 Currently Not Available
04	DOWEL - M12,5X10 Part #: 34117713989 Required per assembly: 4 Currently Not Available
05	BRAKE ROTOR WITH RIVET - D=320-5,0MM Part #: 34117723493 Required per assembly: 2 Currently Not Available
06	SENSOR RING - Z=48 Part #: 34528549506 Required per assembly: 1 Note: FOR VEHICLES WITH I-ABS GENERATION 2 (CODE: X630A) Currently Not Available
07	COUNTERSUNK SCREW - M8X27 10.9 MK Part #: 34117700989 Required per assembly: 1 Note: NOT FOR VEHICLES WITH CROSS-SPOKE WHEELS (CODE: X771A) Currently Not Available
08	SCREW PLUG WITH VENTILATION Part #: 34327673647 Required per assembly: 2 Currently Not Available
09	CAP Part #: 34212314001 Required per assembly: 2 Currently Not Available
10	SET: SET OF MOUNTING PARTS, BRAKE PADS Part #: 34117714802 Required per assembly: 2 Currently Not Available
11	ADAPTER FOR WHEELSPEED SENSOR Part #: 34527713185 Required per assembly: 1 Note: FOR VEHICLES WITH RACE ABS (CODE: X128A) OR RACE ABS + DTC (CODE: X129A) Currently Not Available
12	OVAL HEAD SCREW - M5X10 Part #: 36317678083 Required per assembly: 2 Note: ONLY IN CONJUNCTION WITH Currently Not Available
13	FILLISTER HEAD SCREW - M5X14 Part #: 46637657650 Required per assembly: 1 Note: ONLY IN CONJUNCTION WITH Currently Not Available
14	CABLE GUIDE Part #: 34527708925 Required per assembly: 1 Currently Not Available
15	WHEELSPEED SENSOR Part #: 34527715117 Required per assembly: 1 Currently Not Available
16	TANDEM CLAMP - D=6/4,5MM Part #: 34527664098 Required per assembly: 4 Currently Not Available
17	CABLE STRAP WITH BRACKET - Ø=7,9 / L=200 Part #: 61136914992 Required per assembly: 1 Currently Not Available
18	CABLE STRAP - L=200MM/B=4,8MM Part #: 61138383722 Required per assembly: 1 Currently Not Available
19	CLIP RETAINER - A=4,0 - 4,5MM Part #: 07147566122 Required per assembly: 2 Note: FOR VEHICLES WITH I-ABS GENERATION 2 (CODE: X630A) OR INTEGRAL ABS (CODE: X645A) Currently Not Available
20	SET: SET OF BRAKE PISTONS WITH SEALS Part #: 34117714801 Required per assembly: 2 Currently Not Available
