2011 Polaris Outlaw 525 IRS (A11GP52AA) - Chassis, Frame

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

FRAME, MAIN, MATTE', BLACK

Part #: 1016378-458 Required per assembly: 1
Currently Not Available
2

PEG, FOOT, RH, MATTE', BLACK

Part #: 1015490-458 Required per assembly: 1
Currently Not Available
3

PEG, FOOT, LH, MATTE', BLACK

Part #: 1015489-458 Required per assembly: 1
Currently Not Available
4

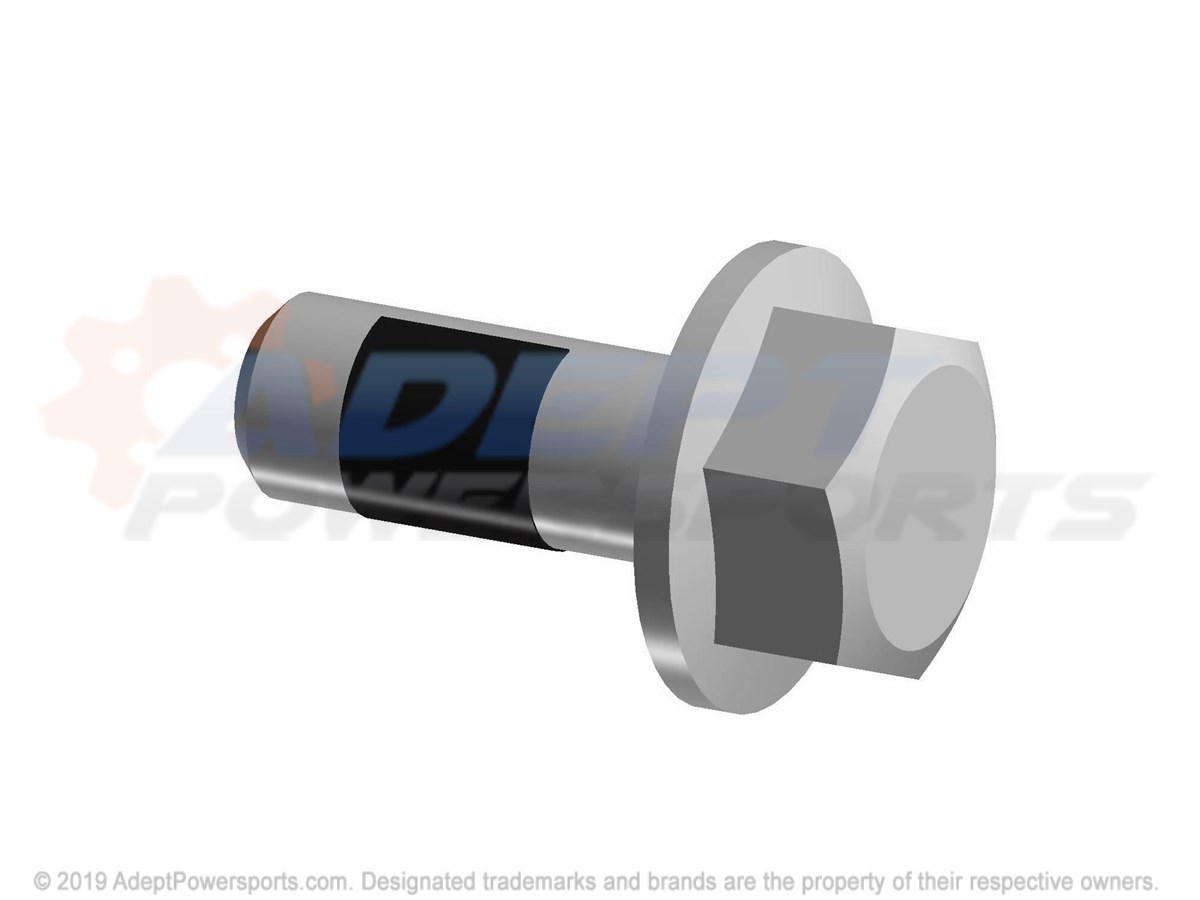

BOLT

Part #: 7518760 Required per assembly: 4 Note: Bolt
Currently Not Available
5

GUARD, ROCK, REAR

Part #: 5436463 Required per assembly: 1
Currently Not Available
6

SCREW

Part #: 7518529 Required per assembly: 4
$2.99
$1.73
-
+
Add to cart
7

WASHER, FLAT

Part #: 7555859 Required per assembly: 4 Note: Washer, Flat
$2.99
$1.73
-
+
Add to cart
8

GUARD, ROCK, FRONT

Part #: 5436902 Required per assembly: 1
Currently Not Available
9

SCREW, FLANGE

Part #: 7518450 Required per assembly: 4
Currently Not Available
10

SCREW

Part #: 7518512 Required per assembly: 1 Note: Bolt, Flange
Currently Not Available
11

SLEEVE

Part #: 5436525 Required per assembly: 1
Currently Not Available
12

NUT, FLANGE

Part #: 7547339 Required per assembly: 1
Currently Not Available
