Engine, Carburetor replacement parts for 2011 Polaris Outlaw 525 IRS (A11GP52AA)

OEM Parts Polaris 2011 Polaris Outlaw 525 IRS (A11GP52AA) Engine, Carburetor

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

-	ASSEMBLY, CARBURETOR, KEIHIN Part #: 1203824 Required per assembly: 1 Currently Not Available
1	MAIN, JET, KHN Part #: 3050235-120 Required per assembly: 1 Currently Not Available
1	MAIN, JET, KHN Part #: 3050235-122 Required per assembly: 1 Currently Not Available
1	MAIN, JET, KHN Part #: 3050235-128 Required per assembly: 1 Currently Not Available
1	MAIN, JET, KHN, [STOCK] Part #: 3050235-148 Required per assembly: 1 Currently Not Available
1	MAIN, JET, KHN Part #: 3050235-170 Required per assembly: 1 Currently Not Available
1	MAIN, JET, KHN Part #: 3050235-168 Required per assembly: 1 Currently Not Available
1	MAIN, JET, KHN Part #: 3050235-165 Required per assembly: 1 Currently Not Available
1	MAIN, JET, KHN Part #: 3050235-162 Required per assembly: 1 Currently Not Available
1	MAIN, JET, KHN Part #: 3050235-160 Required per assembly: 1 Currently Not Available
1	MAIN, JET, KHN Part #: 3050235-158 Required per assembly: 1 Currently Not Available
1	MAIN, JET, KHN Part #: 3050235-155 Required per assembly: 1 Currently Not Available
1	MAIN, JET, KHN Part #: 3050235-152 Required per assembly: 1 Currently Not Available
1	MAIN, JET, KHN Part #: 3050235-150 Required per assembly: 1 Currently Not Available
1	MAIN, JET, KHN Part #: 3050235-130 Required per assembly: 1 Currently Not Available
1	MAIN, JET, KHN Part #: 3050235-132 Required per assembly: 1 Currently Not Available
1	MAIN, JET, KHN Part #: 3050235-135 Required per assembly: 1 Currently Not Available
1	MAIN, JET, KHN Part #: 3050235-138 Required per assembly: 1 Currently Not Available
1	MAIN, JET, KHN Part #: 3050235-140 Required per assembly: 1 Currently Not Available
1	MAIN, JET, KHN Part #: 3050235-142 Required per assembly: 1 Currently Not Available
1	MAIN, JET, KHN Part #: 3050235-145 Required per assembly: 1 Currently Not Available
2	PILOT, JET, KHN Part #: 3050219-48 Required per assembly: 1 Currently Not Available
2	PILOT, JET, KHN Part #: 3050219-42 Required per assembly: 1 Currently Not Available
2	PILOT, JET, KHN Part #: 3050219-40 Required per assembly: 1 Currently Not Available
2	PILOT JET Part #: 3050219-45 Required per assembly: 1 Currently Not Available
2	PILOT, JET, KHN Part #: 3050219-50 Required per assembly: 1 Currently Not Available
3	COVER, CARBURETOR, TOP Part #: 3131652 Required per assembly: 1 Currently Not Available
4	SEAL, CARBURETOR, COVER Part #: 3131653 Required per assembly: 1 Currently Not Available
5	KIT, THROTTLE, SHAFT, FCR Part #: 2203567 Required per assembly: 1 Currently Not Available
6	KIT, IDLE, SPEED, SCREW Part #: 2203526 Required per assembly: 1 Currently Not Available
7	KIT, THROTTLE, POSITION, SENSOR Part #: 2203527 Required per assembly: 1 Currently Not Available
8	VALVE, THROTTLE Part #: 3131657 Required per assembly: 1 Currently Not Available
9	ROLLER, THROTTLE, VALVE Part #: 3131658 Required per assembly: 1 Currently Not Available
10	SEAL, THROTTLE, VALVE Part #: 3131659 Required per assembly: 1 Currently Not Available
11	PLATE, THROTTLE, VALVE Part #: 3131660 Required per assembly: 1 Currently Not Available
12	CLIP, NEEDLE Part #: 3131661 Required per assembly: 1 Currently Not Available
13	SCREW, NEEDLE, SET Part #: 3131662 Required per assembly: 1 Currently Not Available
14	KIT, CARB, NEEDLE, JET, AND, SEAT, 450 Part #: 2203641 Required per assembly: 1 Currently Not Available
15	STARTER, JET, KHN Part #: 3131663 Required per assembly: 1 Note: Starter Jet, KHN [#85] Currently Not Available
16	SLOW, AIR, JET, KHN Part #: 3131677 Required per assembly: 1 Note: Slow Air Jet, KHN [#100] Currently Not Available
17	KIT, PILOT, SCREW Part #: 2203522 Required per assembly: 1 Currently Not Available
18	PLATE, BUFFER Part #: 3131665 Required per assembly: 1 Currently Not Available
19	FLOAT, CARBURETOR Part #: 3131666 Required per assembly: 1 Currently Not Available
20	PIN, FLOAT Part #: 3050232 Required per assembly: 1 Currently Not Available
21	CLIP, FLOAT, VALVE Part #: 3050229 Required per assembly: 1 Currently Not Available
22	KIT, FLOAT, NEEDLE, AND, SEAT Part #: 2203523 Required per assembly: 1 Currently Not Available
23	BOWL, FLOAT Part #: 3131667 Required per assembly: 1 Currently Not Available

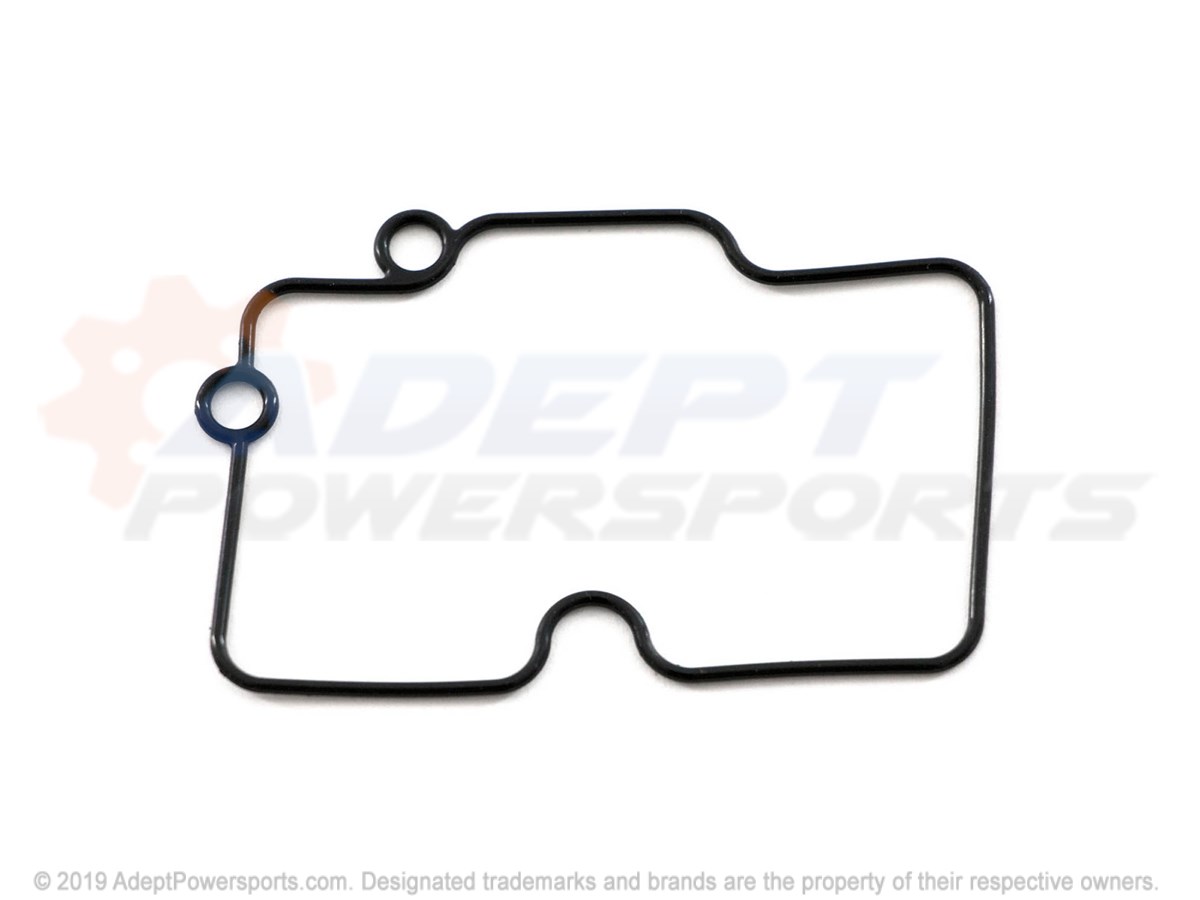

24	SEAL, FLOAT, BOWL Part #: 3131668 Required per assembly: 1 Currently Not Available
25	PLUG, FLOAT, BOWL, DRAIN Part #: 3131669 Required per assembly: 1 Currently Not Available
26	O-RING, PLUG, SCREW Part #: 3050217 Required per assembly: 1 Currently Not Available
27	KIT, ACCELERATOR, PUMP, BOWL Part #: 2203524 Required per assembly: 1 Currently Not Available
28	VALVE, CHOKE Part #: 3131670 Required per assembly: 1 Currently Not Available
29	KIT, BREATHER, HOSES Part #: 2203525 Required per assembly: 1 Currently Not Available
30	COVER, THROTTLE Part #: 3131671 Required per assembly: 1 Currently Not Available
31	KIT, NEEDLE, SET, SCREW, FCR Part #: 2203530 Required per assembly: 1 Currently Not Available
32	KIT, FUEL, INLET, FITTING Part #: 2203568 Required per assembly: 1 Currently Not Available
33	FITTING, BREATHER, HOSE Part #: 3131675 Required per assembly: 1 Currently Not Available
