Electrical, Dash Instruments And Controls replacement parts for 2011 Polaris RANGER 4X4 900 D (R11TH90DG)

OEM Parts Polaris 2011 Polaris RANGER 4X4 900 D (R11TH90DG) Electrical, Dash Instruments And Controls

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	GROMMET-PARK BRAKE Part #: 5413958 Required per assembly: 1 Currently Not Available
2	RIVET Part #: 7661855 Required per assembly: 2 $2.99 $1.73 - + Add to cart
3	SWITCH-AWD Part #: 4012747 Required per assembly: 1 Currently Not Available
4	INDICATOR-GLOW PLUG Part #: 4013012 Required per assembly: 1 Currently Not Available
5	SWITCH, HEADLIGHT Part #: 4011115 Required per assembly: 1 Currently Not Available
6	RECEPTACLE, POD, MOUNT, 12V Part #: 4012393 Required per assembly: 3 Currently Not Available
7	ASM-SPEEDO RANGER Part #: 2412776 Required per assembly: 1 Currently Not Available

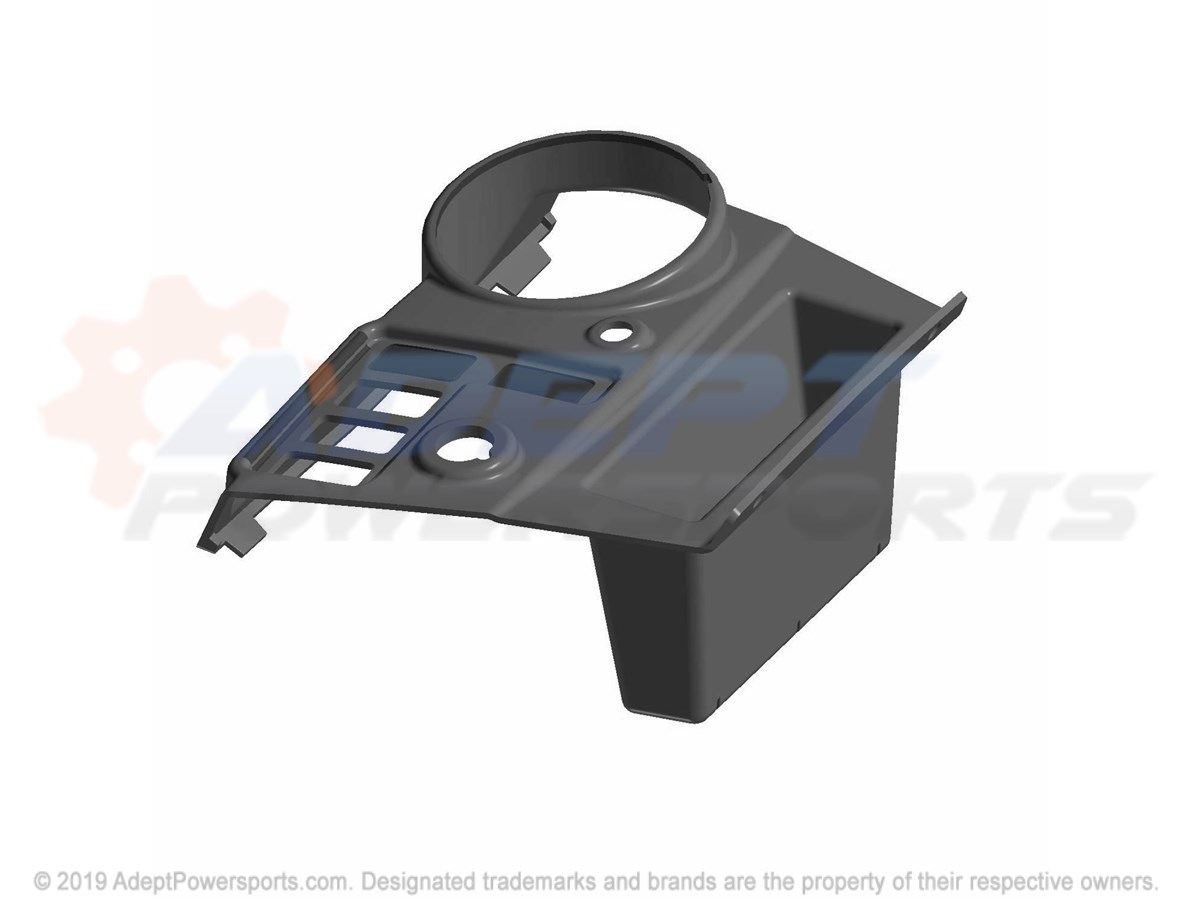

8	PANEL, DASH, CONTROLS, BLACK Part #: 5437644-070 Required per assembly: 1 Currently Not Available
9	SWITCH, KEY Part #: 4012165 Required per assembly: 1 Note: 3 position. Comes with 2 keys. 6 Pin Currently Not Available
10	MOUNT, RUBBER Part #: 5412138 Required per assembly: 1 $34.97 $23.00 - + Add to cart

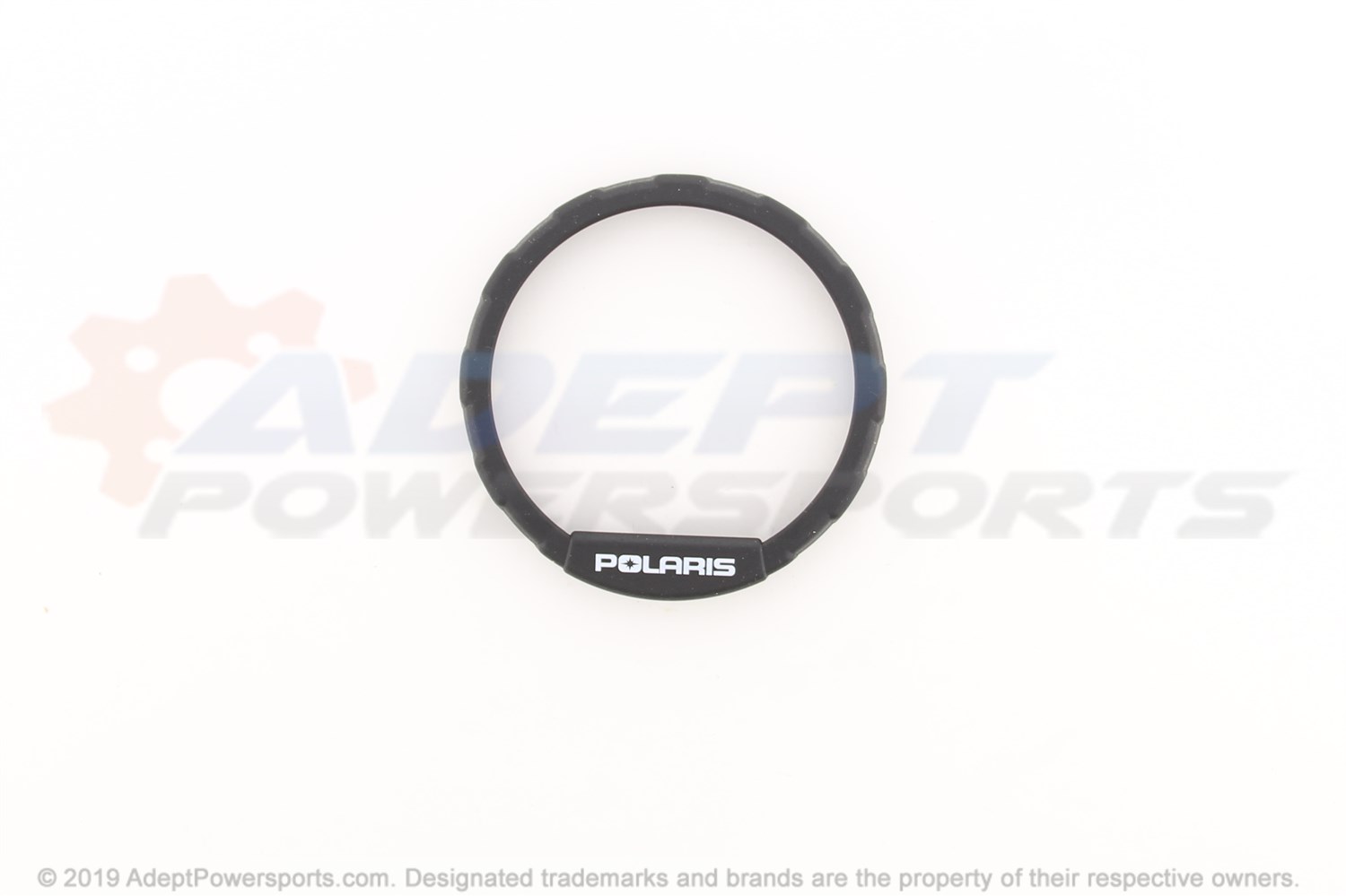

11	BEZEL Part #: 5437258 Required per assembly: 1 Currently Not Available
12	SWITCH, INSTRUMENT Part #: 4011501 Required per assembly: 1 Currently Not Available
