Engine, Cooling System replacement parts for 2011 Polaris RANGER 4X4 900 D (R11TH90DG)

OEM Parts Polaris 2011 Polaris RANGER 4X4 900 D (R11TH90DG) Engine, Cooling System

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	CLAMP, HOSE Part #: 7081174 Required per assembly: 2 Currently Not Available
2	ASM-HOSE RAD IN ENG OUT 900D Part #: 1240590 Required per assembly: 1 Currently Not Available
3	STRAP PANDUIT Part #: 7080138 Required per assembly: 1 $1.99 $1.15 - + Add to cart
4	ASM-HOSE RAD OUT ENG IN 900D Part #: 1240591 Required per assembly: 1 Currently Not Available
5	CAP, OVERFLOW Part #: 5430743 Required per assembly: 1 Currently Not Available
6	CONNECTOR, BARBED Part #: 7052381 Required per assembly: 2 Currently Not Available
7	CLAMP, SPRINGBAND Part #: 7080843 Required per assembly: 4 Note: Clamp, Spring Band Sold in multiples of 10 only Currently Not Available
8	CLIP, ROUTING Part #: 5438331 Required per assembly: 1 Currently Not Available
9	CLAMP, HOSE Part #: 7081174 Required per assembly: 2 Currently Not Available
10	CAP, PRESSURE Part #: 1240300 Required per assembly: 1 Currently Not Available
11	ASM-RADIATOR Part #: 1240721 Required per assembly: 1 Currently Not Available
12	BUSHING, MT, LOW, RED Part #: 5410584 Required per assembly: 2 Currently Not Available
13	ASM-FAN RANGER Part #: 2411732 Required per assembly: 1 Currently Not Available
14	ASSEMBLY, GROMMET, AND, INSERT Part #: 5413155 Required per assembly: 2 Currently Not Available
15	SCREW Part #: 7518280 Required per assembly: 4 Currently Not Available
16	VALVE, PLASTIC, RADIATOR/COOLER, DRAIN Part #: 7052410 Required per assembly: 1 Currently Not Available
17	SCREW Part #: 7517685 Required per assembly: 5 Note: Screw Currently Not Available
18	SCREW Part #: 7516822 Required per assembly: 4 Currently Not Available
19	HOSE-LOWER RADIATOR Part #: 5414280 Required per assembly: 1 Currently Not Available
20	GASKET Part #: 5810279 Required per assembly: 1 $4.99 $2.92 - + Add to cart
21	FUEL, LINE, 1/4, ID(1525, CM.) Part #: 8450003-1525 Currently Not Available
22	FITTING, 90, DEGREE, ("J", MODEL, ONLY) Part #: 7052065 Required per assembly: 1 Note: FITTING,90 DEGREE $11.99 $6.90 - + Add to cart
23	SCREW Part #: 7512084 Required per assembly: 4 Note: Screw $2.99 $1.73 - + Add to cart
24	BRACKET, SURGE, TANK, BLACK Part #: 5252305-329 Required per assembly: 1 Currently Not Available
25	TANK, SURGE Part #: 5436936 Required per assembly: 1 Currently Not Available
26	CAP, PLUG9X, (GREEN), FLEX, TEMP Part #: 5433774 Required per assembly: 1 Note: Plug, Cap $4.79 $2.92 - + Add to cart

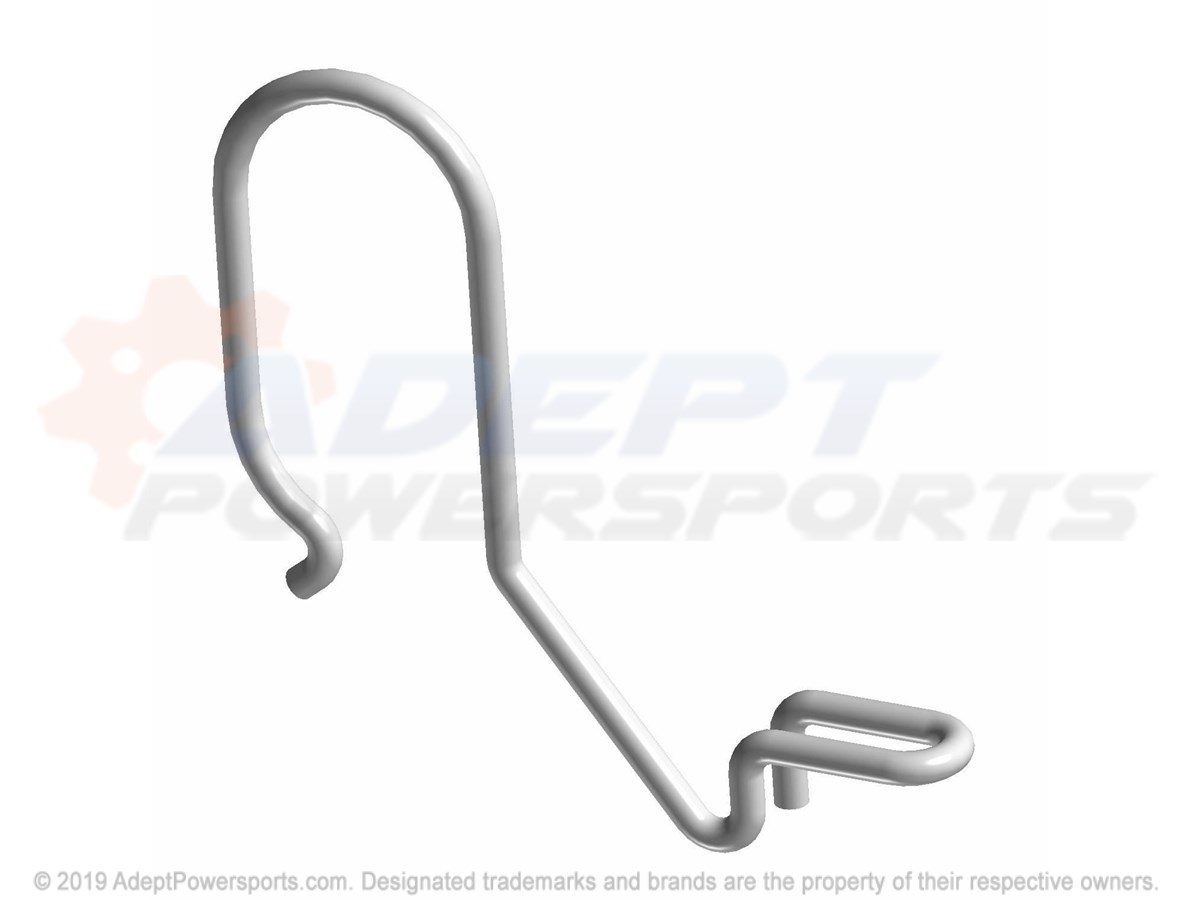

27	HOSE-RETAINER Part #: 7043724 Required per assembly: 1 Currently Not Available
28	STRAP, PANDUIT, 14" Part #: 7080761 Required per assembly: 8 Note: Cable Tie Currently Not Available
29	HOSE-UPPER RADIATOR Part #: 5414279 Required per assembly: 1 Currently Not Available
30	HOSE-1.00" ID ENG OUT Part #: 5414273 Required per assembly: 1 Currently Not Available
31	HOSE-1.00"ID RAD INLET Part #: 5414257 Required per assembly: 1 Currently Not Available
33	SCR-1/4-20X3/4-TR/TX/TAP-M Part #: 7517916 Required per assembly: 1 Note: Screw $6.99 $4.03 - + Add to cart
