2011 Polaris RANGER EV LSV 4X4 (R11RC08LG) - Brakes, Front Caliper

Location Part Description
1

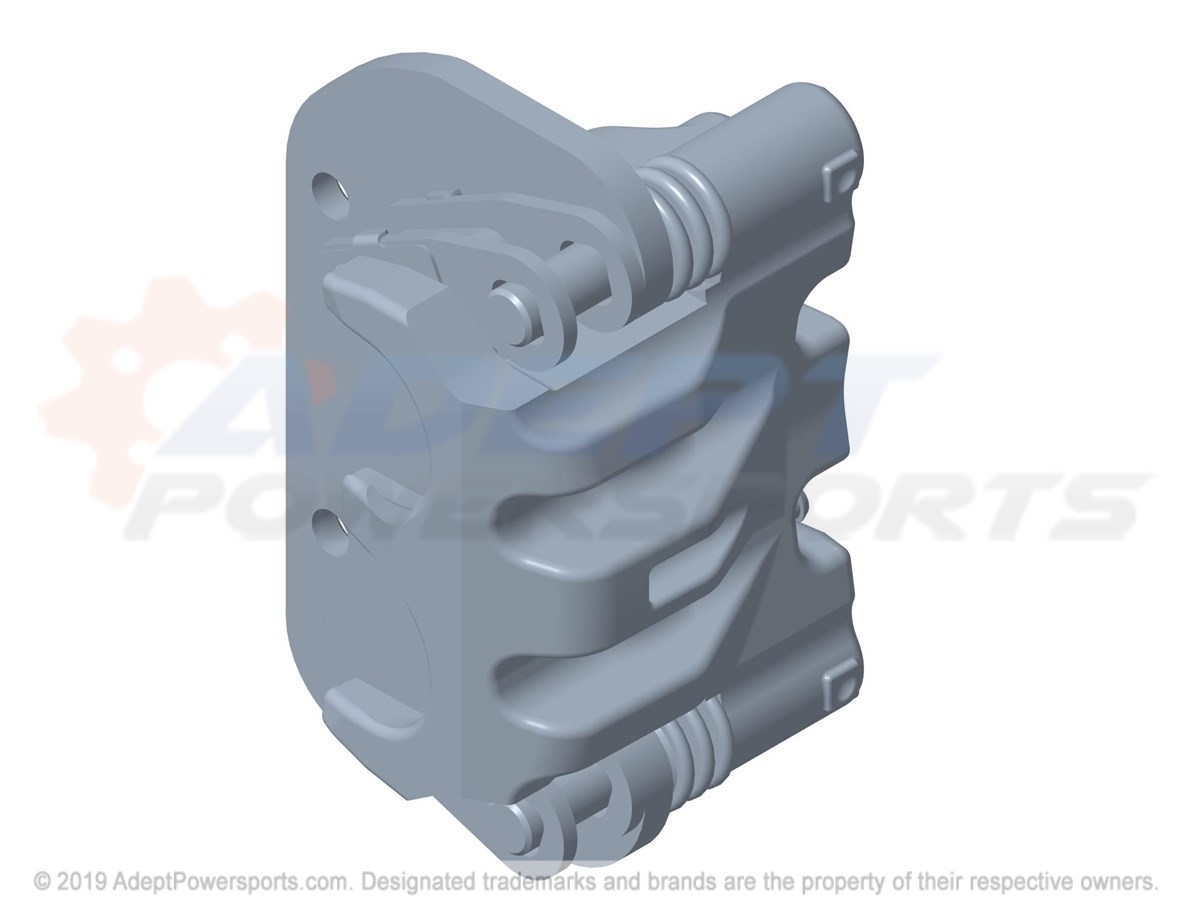

Polaris 1911631 Asm-Caliper Brake Db 1.375" Lh

ASM-CALIPER BRAKE DB 1.375" LH

Part #: 1911631 Required per assembly: 1
Currently Not Available
1

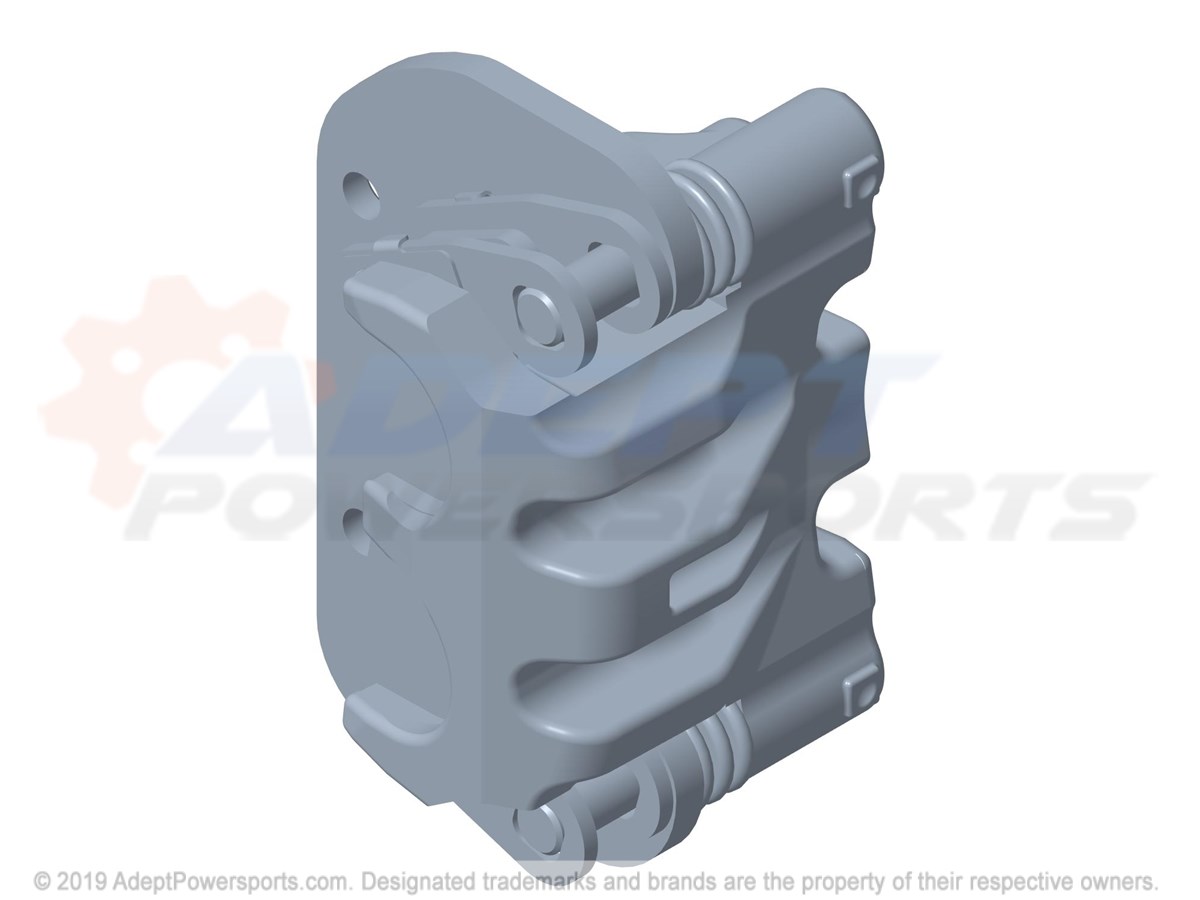

Polaris 1911632 Asm-Caliper Brake Db 1.375" Rh

ASM-CALIPER BRAKE DB 1.375" RH

Part #: 1911632 Required per assembly: 1
Currently Not Available
2
Polaris 7518863 Screw, Socket, Set

SCREW, SOCKET, SET

Part #: 7518863 Required per assembly: 1
Currently Not Available
4
Polaris 1930642 Kit, Boot, F.Brake

KIT, BOOT, F.BRAKE

Part #: 1930642 Required per assembly: 1 Note: Kit, Boot, Front Brake [Incl. Large and Small Boot]
Currently Not Available
5
Polaris 5412505 Boot, Bushing

BOOT, BUSHING

Part #: 5412505 Required per assembly: 1
Currently Not Available
6
Polaris 5412506 Boot, Pin, Seal

BOOT, PIN, SEAL

Part #: 5412506 Required per assembly: 1
Currently Not Available
7
Polaris 5412907 Seal, Caliper, Inner

SEAL, CALIPER, INNER

Part #: 5412907 Required per assembly: 4
Currently Not Available
8
Polaris 5135134 Piston, Caliper

PISTON, CALIPER

Part #: 5135134 Required per assembly: 2
Currently Not Available
9
Polaris 1911348 Assembly, Caliper, Mount, Db

ASSEMBLY, CALIPER, MOUNT, DB

Part #: 1911348 Required per assembly: 1
Currently Not Available
10
Polaris 2205949 K-Asm, Pad, Brake, Db, 1.375

K-ASM, PAD, BRAKE, DB, 1.375

Part #: 2205949 Required per assembly: 2 Note: Two pads
Currently Not Available
11

SCREW, BLEEDER

Part #: 7081343 Required per assembly: 1
Currently Not Available
