Drive Train, Main Gearcase replacement parts for 2011 Polaris RANGER EV LSV 4X4 (R11RC08LG)

OEM Parts Polaris 2011 Polaris RANGER EV LSV 4X4 (R11RC08LG) Drive Train, Main Gearcase

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

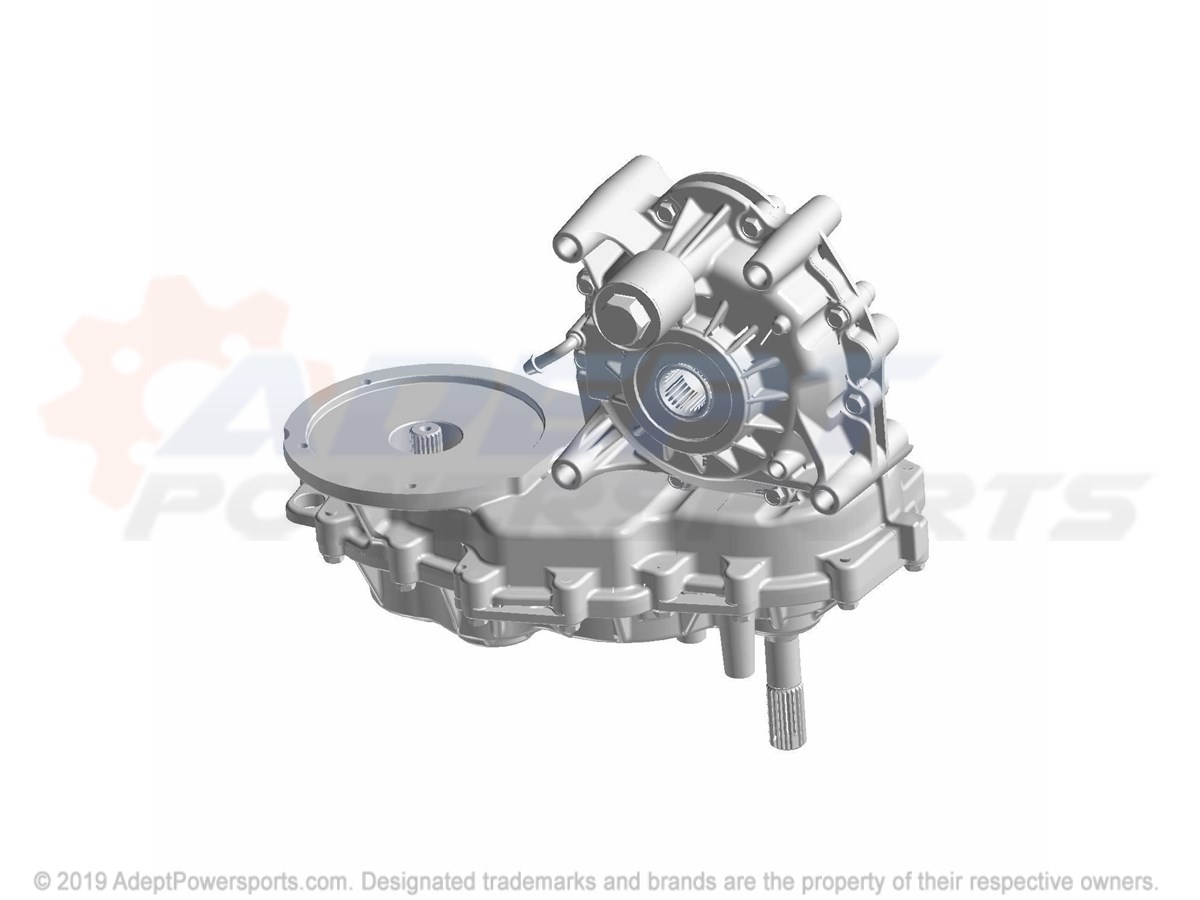

-	ASSEMBLY, GEARCASE, EDT Part #: 1332793 Required per assembly: 1 Currently Not Available
1	PLUG, SOCKET, HEAD Part #: 3234755 Required per assembly: 1 Note: Plug Currently Not Available
2	PLUG, SOCKET, HEAD, W/MAGNET Part #: 3234756 Required per assembly: 1 Note: Plug, Socket Head Currently Not Available
3	SCREW, HEX, FLANGE, HEAD, M8, X, 1.25, X, 30 Part #: 3234898 Required per assembly: 2 Note: Screw ~~$9.99~~ $5.75 - + Add to cart
4	SCREW-HX BTN HD M8 X 1.25 X 20 Part #: 3235094 Required per assembly: 4 Currently Not Available
5	SCREW, HEX, FLANGE, HEAD, M8, X, 1.25, X, 30 Part #: 3234898 Required per assembly: 23 Note: Screw ~~$9.99~~ $5.75 - + Add to cart
7	SCREW, CAP, HH, M8X1.25X20 Part #: 3236169 Required per assembly: 6 ~~$9.99~~ $5.85 - + Add to cart
8	SCR-HEX FLG HD M8 X 1.25 X 20 Part #: 3235097 Required per assembly: 1 Currently Not Available
9	NUT-JAM 1 3/16-12 UN 28 Part #: 3235098 Required per assembly: 1 Currently Not Available
10	PIN, DOWEL Part #: 3234330 Required per assembly: 4 ~~$6.99~~ $4.03 - + Add to cart
11	WASHER Part #: 3233176 Required per assembly: 1 Currently Not Available
12	SHIM Part #: 3233554 Required per assembly: 1 Currently Not Available
13	BEARING Part #: 3233018 Required per assembly: 5 Currently Not Available
14	BEARING Part #: 3233019 Required per assembly: 2 Currently Not Available
15	BEARING, BALL Part #: 3233268 Required per assembly: 2 Currently Not Available
16	BEARING-BALL 6307 C3(35X80X21) Part #: 3235099 Required per assembly: 1 Currently Not Available
17	SPRING, TORSION Part #: 3234276 Required per assembly: 1 Currently Not Available
18	SPRING, COMPRESSION Part #: 3234277 Required per assembly: 1 Currently Not Available
19	CASE-MAIN MACHINED Part #: 3235167 Required per assembly: 1 Currently Not Available
20	COVER-MACHINED Part #: 3234927 Required per assembly: 1 Currently Not Available
21	COVER-MACH EDT Part #: 3235101 Required per assembly: 1 Currently Not Available
22	SHAFT-PINION 10T SPIRAL BEVEL Part #: 3235102 Required per assembly: 1 Currently Not Available
23	GEAR-82T HELICAL Part #: 3235103 Required per assembly: 1 Currently Not Available
24	TUBE, VENT, (1332366) Part #: 3234230 Required per assembly: 1 Note: Tube, Vent [4x4] Currently Not Available
25	FORK, SHIFT Part #: 3234285 Required per assembly: 1 Currently Not Available
26	DOG-ENGAGEMENT Part #: 3234928 Required per assembly: 1 Currently Not Available
27	SUB, ASSEMBLY, SHAFT, MOTOR, 34T Part #: 3235247 Required per assembly: 1 Currently Not Available
28	SUB ASSEMBLY SHAFT IDLER 28T Part #: 3235248 Required per assembly: 1 Currently Not Available
29	SUB ASM-39T SIDE GEAR Part #: 3234929 Required per assembly: 1 Currently Not Available
30	SUB ASM-39T SIDE GEAR DISCNNCT Part #: 3234930 Required per assembly: 1 Currently Not Available
31	GEAR-PLANET SUB ASSEMBLY Part #: 3234931 Required per assembly: 6 Currently Not Available
32	COVER-CARRIER SUB ASSEMBLY Part #: 3234933 Required per assembly: 1 Currently Not Available
33	SUBASSEM-GEAR 31T SPIRAL BEVEL Part #: 3235106 Required per assembly: 1 Currently Not Available
34	SUB, ASSEMBLY, SHAFT, BLANK, INTERMEDIA Part #: 3235249 Required per assembly: 1 Currently Not Available
35	RETAINER-FORK Part #: 3234934 Required per assembly: 2 Currently Not Available
36	COVER-BEARING PINION Part #: 3235108 Required per assembly: 1 Currently Not Available
37	OIL DEFLECTOR Part #: 3235109 Required per assembly: 1 Currently Not Available
38	O-RING Part #: 3234302 Required per assembly: 1 Currently Not Available
39	SOLENOID Part #: 3235478 Required per assembly: 1 Currently Not Available

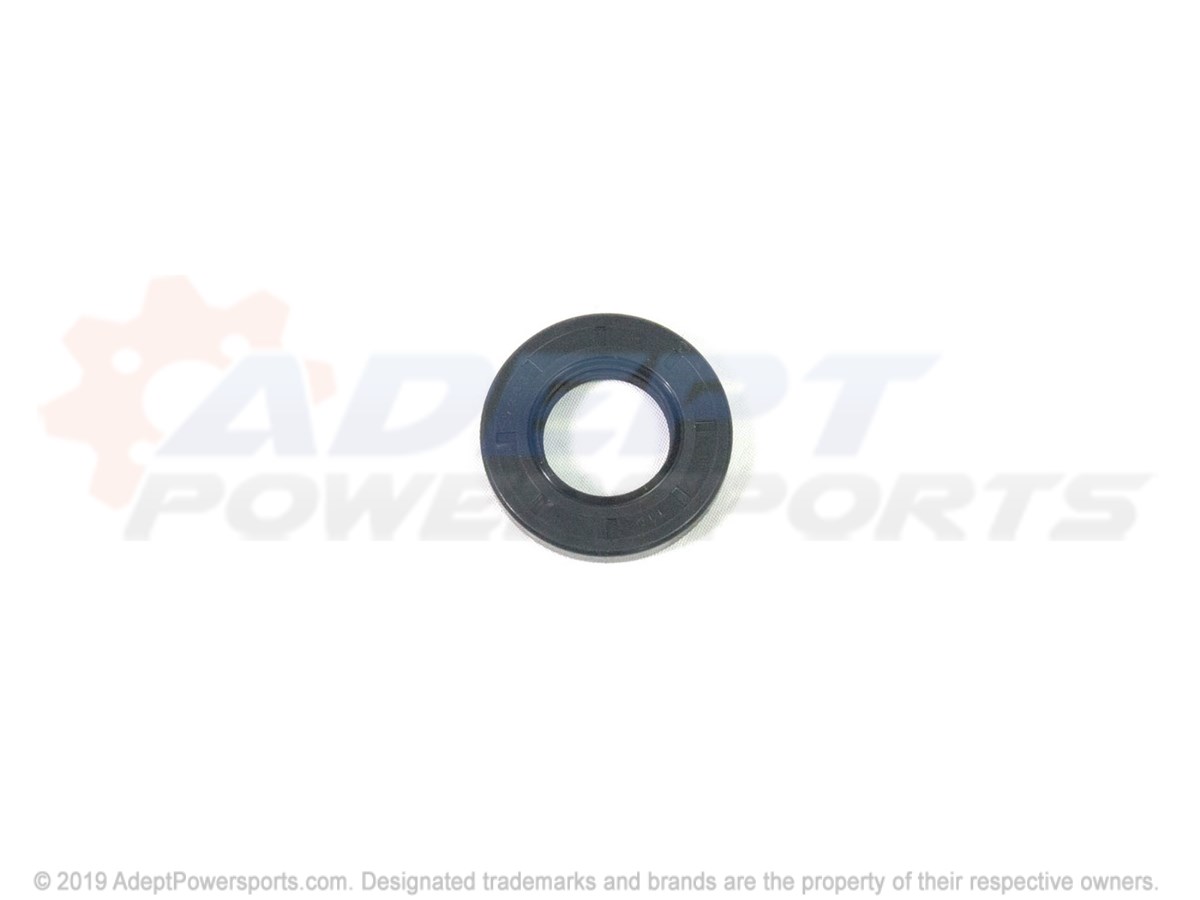

40	SEAL-TRPL LIP 24X47X8 Part #: 3235110 Required per assembly: 1 Currently Not Available

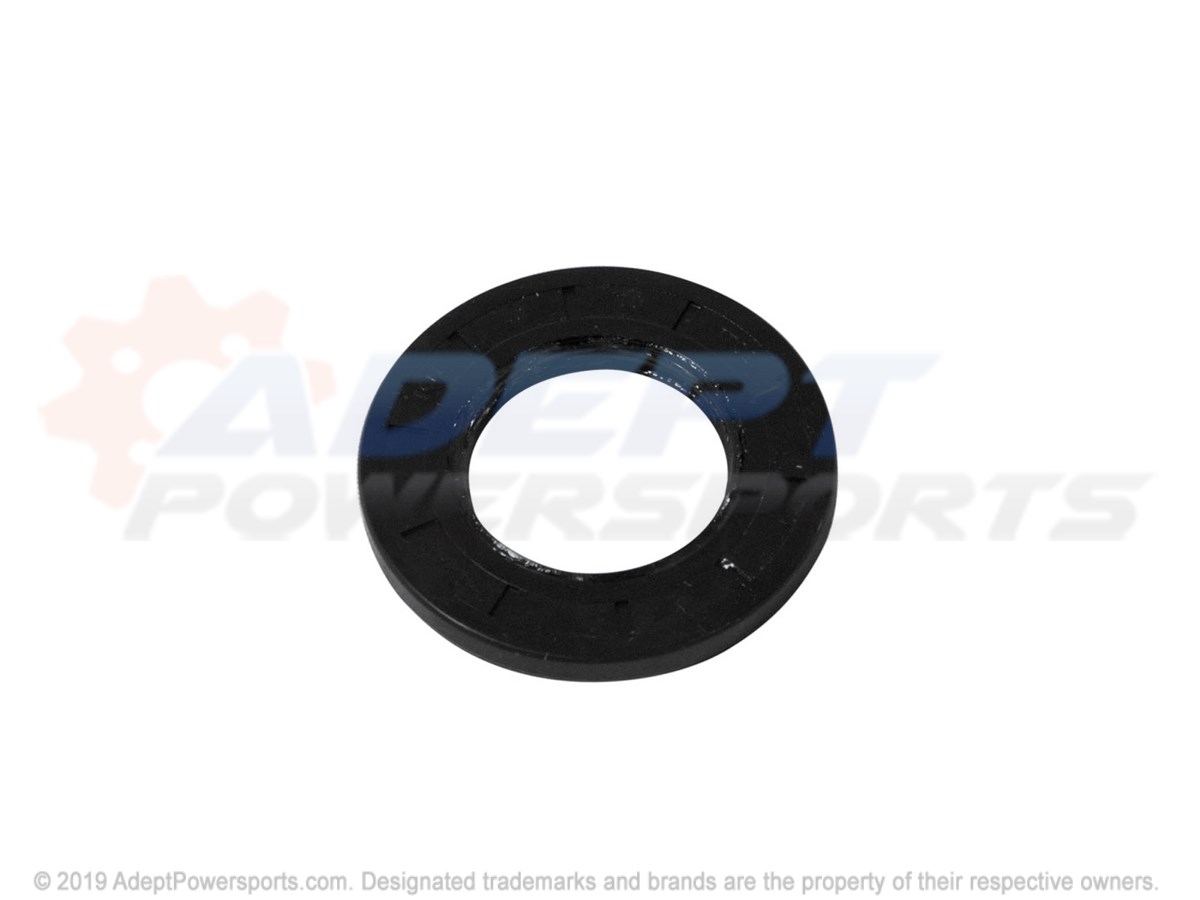

41	SEAL, TRIPLE, LIP Part #: 3234892 Required per assembly: 1 Currently Not Available
42	SEAL, TRIPLE, LIP Part #: 3234793 Required per assembly: 2 Currently Not Available
43	K-SPEED SENSOR Part #: 3239727 Required per assembly: 1 Currently Not Available
