2011 Polaris RANGER RZR 900 XP (R11JH87AA/AD) - References, Tool Kit And Owners Manual

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
-
Polaris 2877351 Kit, Tool, (Does, Not, Include, Spanner, Wrench, Or, Manual)

KIT, TOOL, (DOES, NOT, INCLUDE, SPANNER, WRENCH, OR, MANUAL)

Part #: 2877351 Required per assembly: 1 Note: Kit includes
  • 2874858 1 EA WRENCH-TORX,T-27
  • 2875087 1 EA SOCKET-SPARK PLUG
  • 2875091 1 EA HANDLE-SPARK PLUG SOCKET
  • 2875341 1 EA WRENCH-TORX,T-25
  • 2876389 1 EA PLIERS-COMBO, #2 ASSEMBLY
Currently Not Available
2

N/A, USE, ASM/KITS

Part #: 9990005 Required per assembly: 1
Currently Not Available
6

N/A, USE, ASM/KITS

Part #: 9990005 Required per assembly: 1
Currently Not Available
7
Polaris 2682572 Pouch, Toolkit, 9"

POUCH, TOOLKIT, 9"

Part #: 2682572 Required per assembly: 1
Currently Not Available
8

MAN-OWN 12 RZR XP

Part #: 9923500 Required per assembly: 1
Currently Not Available
9
Polaris 2877408 Wrench, Span/Spreader, Black

WRENCH, SPAN/SPREADER, BLACK

Part #: 2877408 Required per assembly: 1 Note: Wrench, Span/Spreader
Currently Not Available
10

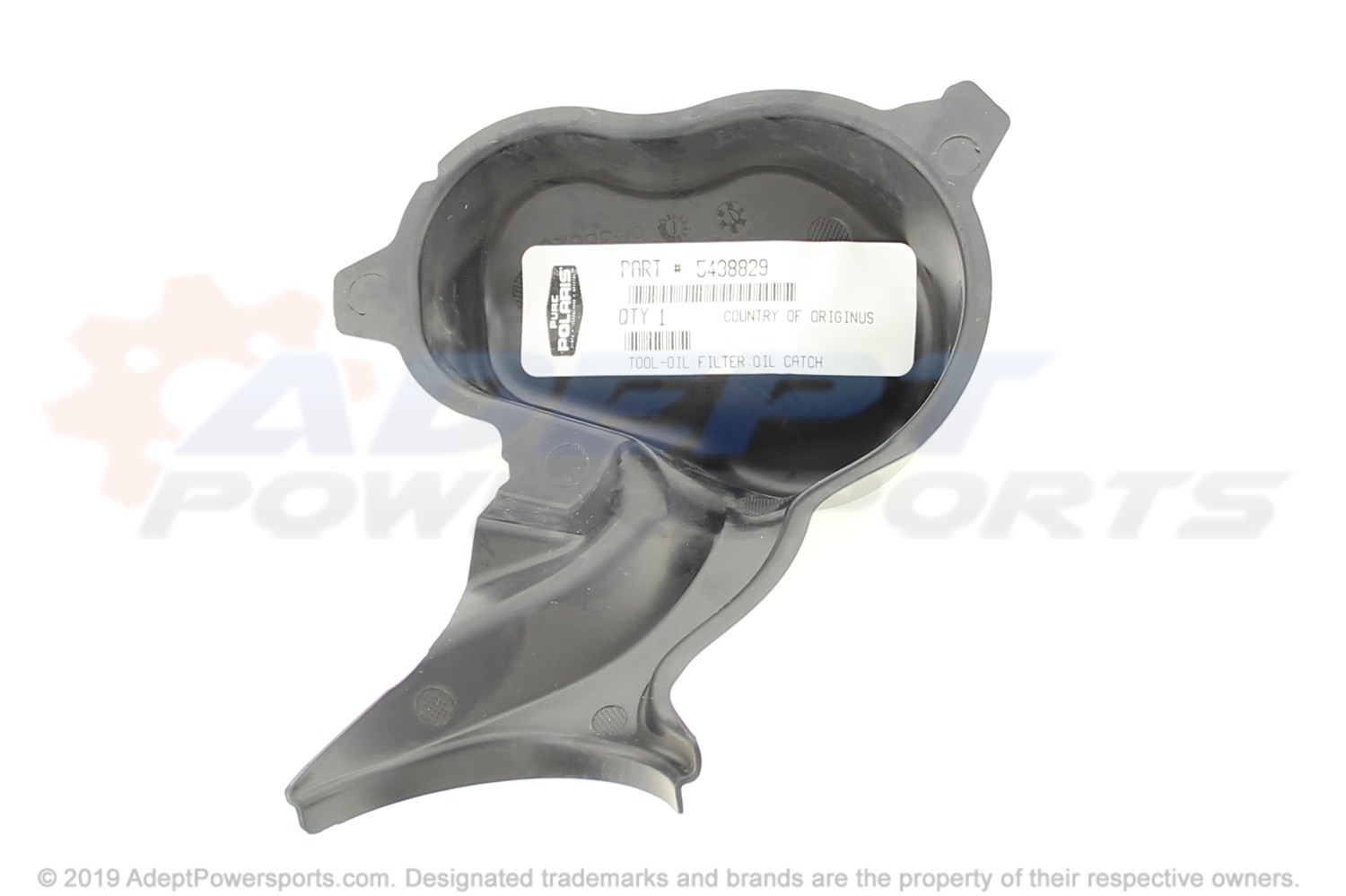

Polaris 5438829 Tool-Oil Filter Oil Catch

TOOL-OIL FILTER OIL CATCH

Part #: 5438829 Required per assembly: 1
Currently Not Available
