Suspension, Rear replacement parts for 2011 Polaris RANGER RZR 900 XP (R11JH87AA/AD)

OEM Parts Polaris 2011 Polaris RANGER RZR 900 XP (R11JH87AA/AD) Suspension, Rear

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	WELD-TRL ARM LH I RED Part #: 1017465-293 Required per assembly: 1 Currently Not Available
2	WELD-TRL ARM RH I RED Part #: 1017466-293 Required per assembly: 1 Currently Not Available
3	BEARING-SPHERICAL 0.625 Part #: 3514689 Required per assembly: 2 Currently Not Available

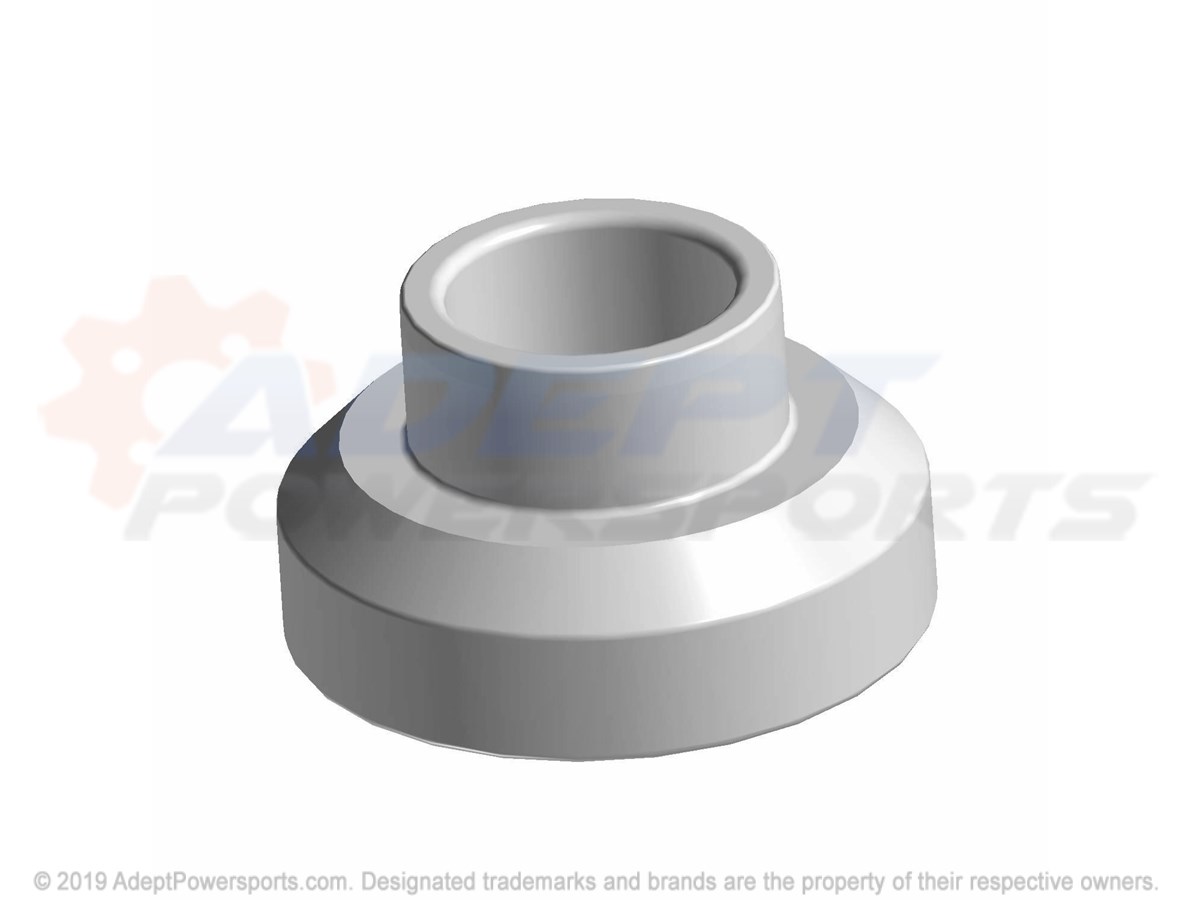

4	BUSHING-REDUCER 12MM Part #: 5336303 Required per assembly: 4 Currently Not Available
5	WASHER, FLAT Part #: 7556153 Required per assembly: 16 Note: Washer ~~$3.99~~ $2.30 - + Add to cart
6	SCR-HXFL-M12X1.5X60 10.9 ZOD Part #: 7519138 Required per assembly: 2 Currently Not Available
7	NUT, NYLOK Part #: 7547334 Required per assembly: 2 Currently Not Available
8	RING RETAINING Part #: 7710437 Required per assembly: 2 Currently Not Available
9	BEARING-BALL SEALED 44X72X33.1 Part #: 3514699 Required per assembly: 2 Currently Not Available
10	CARRIER-BEARING WHEEL (MACH) LH Part #: 5137180 Required per assembly: 1 Currently Not Available
11	CARRIER-BEARING WHEEL (MACH) RH Part #: 5137181 Required per assembly: 1 Currently Not Available
12	RING, RETAINING Part #: 7710440 Required per assembly: 2 Note: Ring, Retaining Currently Not Available
13	ASM-RADIUS ROD TOP I RED Part #: 1542940-293 Required per assembly: 2 Currently Not Available
14	ASSEMBLY, RADIUS, ROD, INDY, RED Part #: 1543377-293 Required per assembly: 2 Currently Not Available
15	PLATE REAR BOLT BRACE INDY Part #: 5254609-293 Required per assembly: 1 Currently Not Available
16	SCR-HXFL-M10X1.25X100 10.9 ZOD Part #: 7519284 Required per assembly: 4 Currently Not Available
17	SCR-HXFL-M10X1.25X60 10.9 ZOD Part #: 7519306 Required per assembly: 4 Currently Not Available
18	SCR-HXFL-M10X1.25X75 10.9 ZOD Part #: 7519286 Required per assembly: 8 Currently Not Available
19	NUT, FLANGE Part #: 7547333 Required per assembly: 20 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
