Front Shock Mounting - R12ve76ad replacement parts for 2012 Polaris RZR S 800 EFI

OEM Parts Polaris 2012 Polaris RZR S 800 EFI Front Shock Mounting - R12ve76ad

FRONT SHOCK MOUNTING - R12VE76AD Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	NUT, FLANGE Part #: 7547313 Required per assembly: 4 ~~$2.79~~ $1.73 - + Add to cart
1	NUT, FLANGE Part #: 7547313 Required per assembly: 4 ~~$2.79~~ $1.73 - + Add to cart

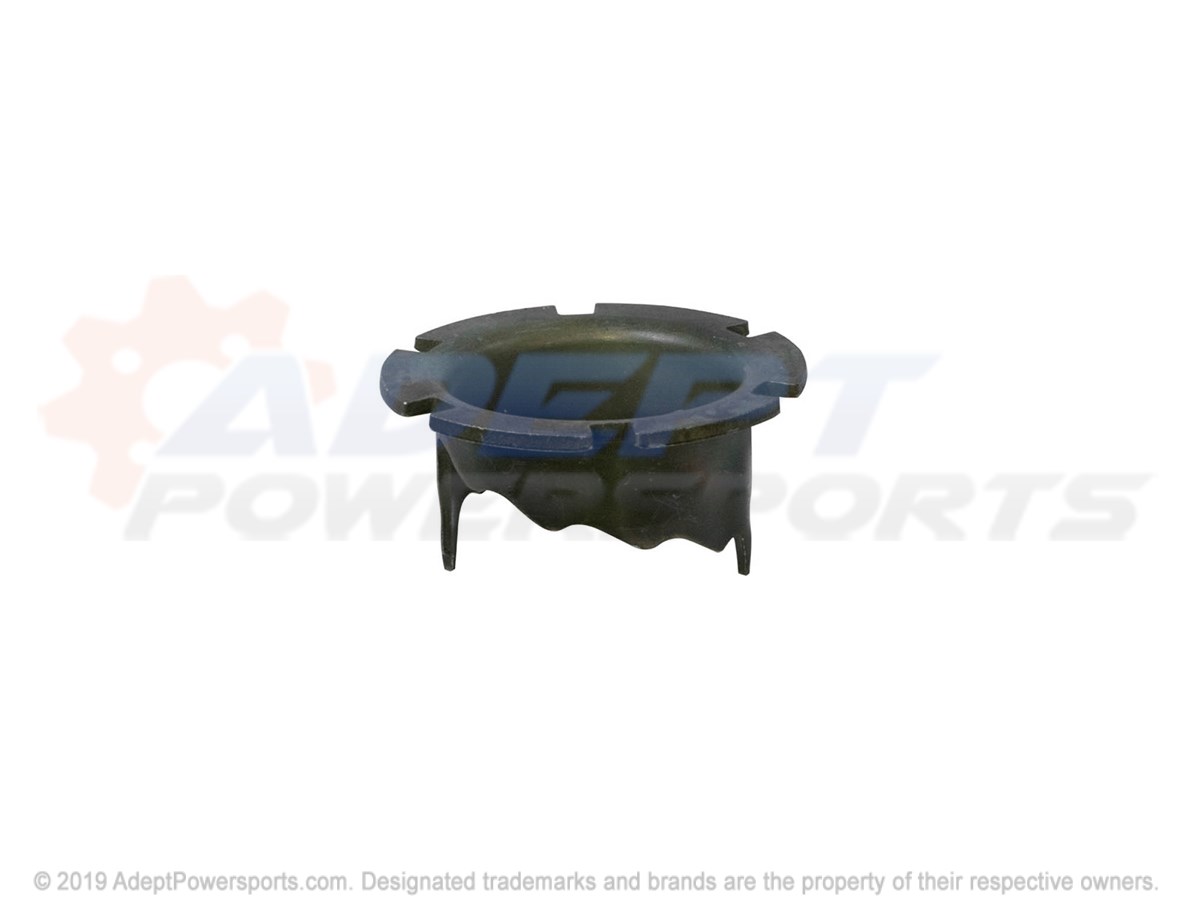

2	RETAINER, SPRING Part #: 5251753 Required per assembly: 2 Currently Not Available
3	SCREW, FLANGE Part #: 7518474 Required per assembly: 4 Note: Bolt ~~$5.99~~ $2.30 - + Add to cart
3	SCREW, FLANGE Part #: 7518474 Required per assembly: 4 Note: Bolt ~~$5.99~~ $2.30 - + Add to cart

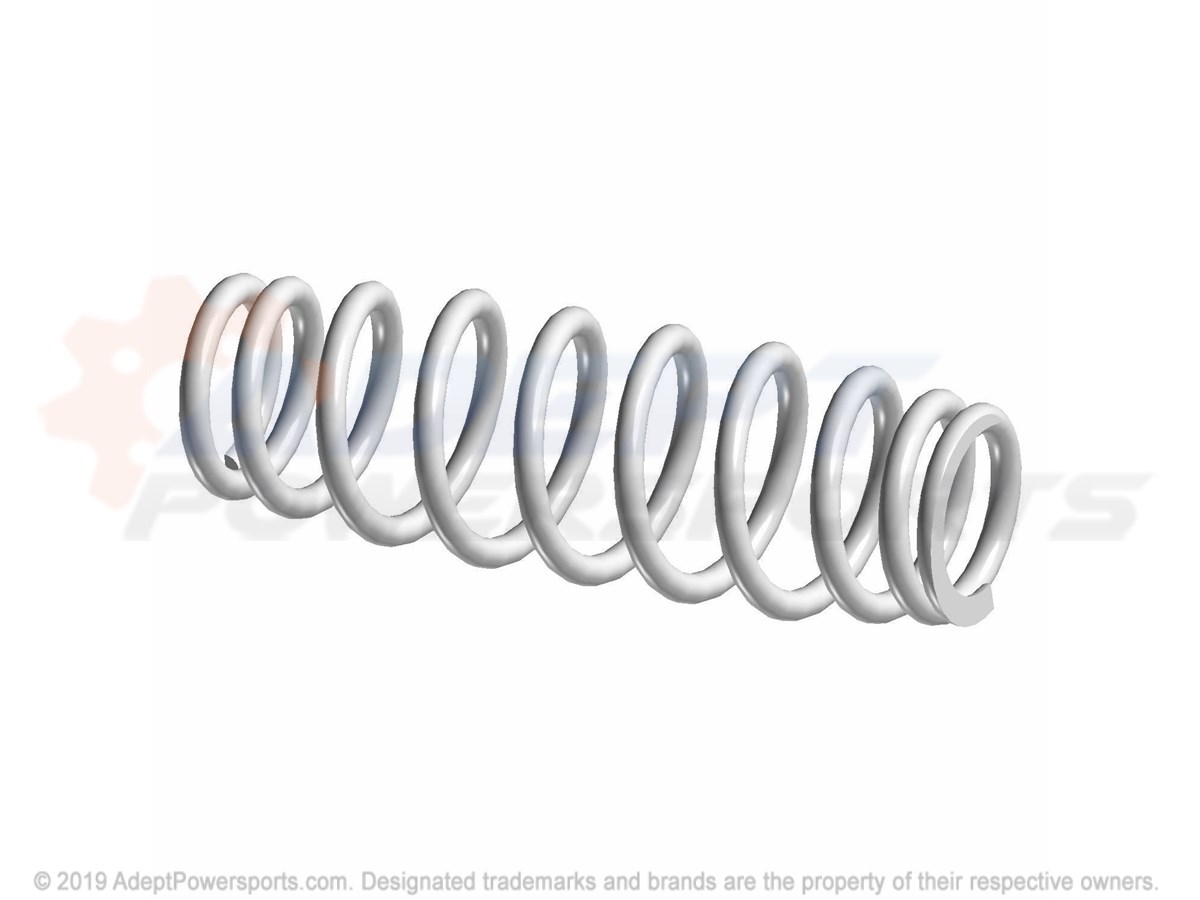

4	SPRING, FRONT, 160#, MATTE, BLACK Part #: 7043700-458 Required per assembly: 2 Currently Not Available
5	CAM-SACHS MONO STEEL STMPD Part #: 5254963 Required per assembly: 4 Currently Not Available
6	SHOCK, FRONT Part #: 7043832 Required per assembly: 2 Note: Built 12/06/11 and After Currently Not Available
6	SHOCK, FRONT Part #: 7043832 Required per assembly: 2 Note: Built 12/05/11 and Before Currently Not Available
