Wire Harness replacement parts for 2012 Polaris RZR S 800 EFI

OEM Parts Polaris 2012 Polaris RZR S 800 EFI Wire Harness

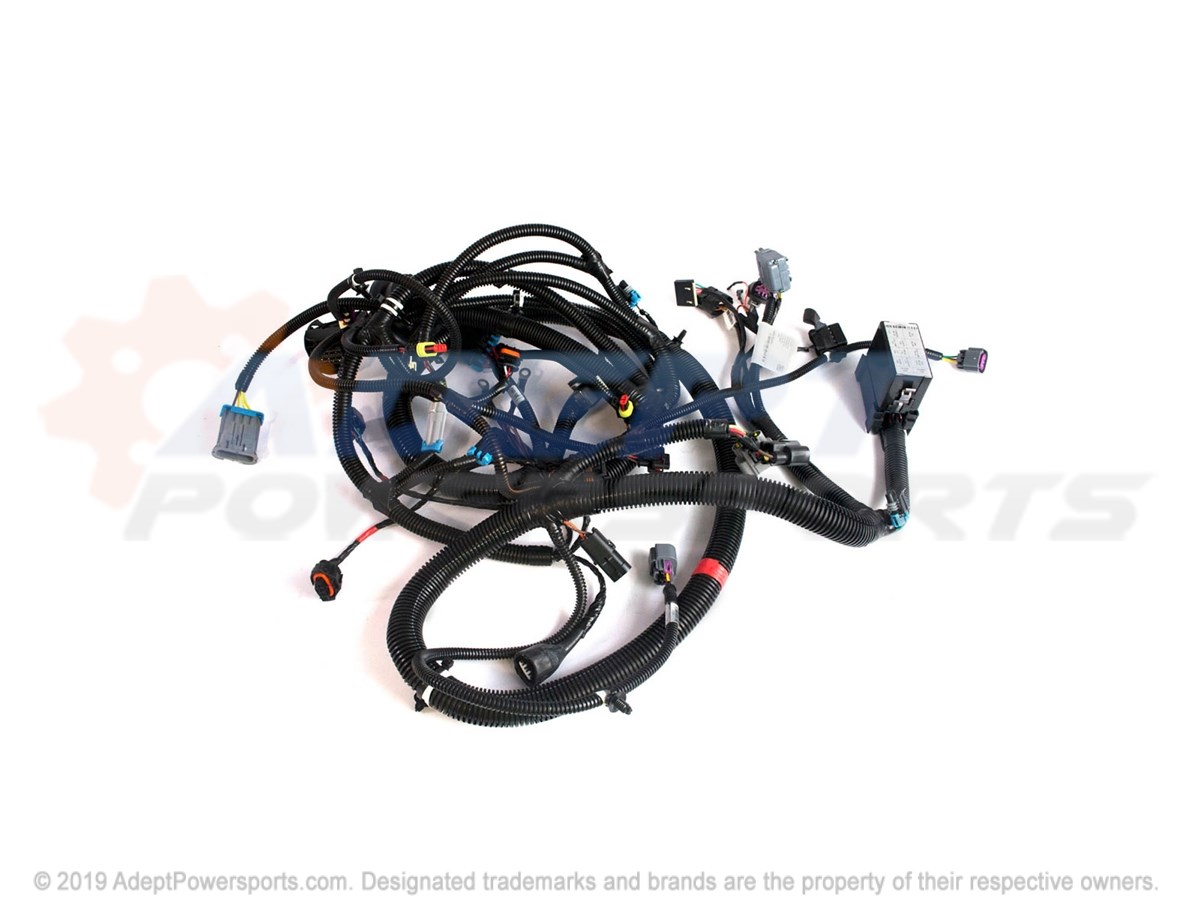

WIRE HARNESS Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	KIT-HARNESS TPS Part #: 2878498 Required per assembly: 1 Currently Not Available
1	KIT-HARNESS PHASE SENSOR Part #: 2878504 Required per assembly: 1 Currently Not Available
1	KIT-HARNESS CPS Part #: 2878497 Required per assembly: 1 Currently Not Available
1	KIT-HARNESS IAC Part #: 2878507 Required per assembly: 1 Currently Not Available
1	KIT-HARNESS ENGINE TEMP Part #: 2878496 Required per assembly: 1 Currently Not Available
1	KIT-STATOR Part #: 2878508 Required per assembly: 1 Currently Not Available
1	KIT-HARNESS REGULATOR ACOUTPUT Part #: 2878506 Required per assembly: 1 Currently Not Available
1	KIT-HARNESS REGULATOR AC INPUT Part #: 2878505 Required per assembly: 1 Currently Not Available
1	KIT-HARNESS IGNITION COIL Part #: 2878501 Required per assembly: 1 Currently Not Available
1	DECAL-RELAY/FUSE BLOCK Part #: 7176911 Required per assembly: 1 Currently Not Available
1	HARNESS-CHASSIS RZR Part #: 2411764 Required per assembly: 1 Note: Incl. 3-7,9,1018-20, All Kits, Decal Currently Not Available
1	BOOT, TPS Part #: 4013310 Required per assembly: 1 Currently Not Available
1	KIT-HARNESS, T-BAP, T-MAP Part #: 2878494 Required per assembly: 1 Currently Not Available
2	SCREW Part #: 7517685 Required per assembly: 2 Note: Screw Currently Not Available
3	KIT, FUSIBLE, LINK, 1.0MM Part #: 2202670 Required per assembly: 1 Note: Kit, Fusible Link Currently Not Available
4	BREAKER, CIRCUIT, 20, AMP Part #: 2410881 Required per assembly: 1 Currently Not Available
5	COVER, DIAGNOSTIC, W/CLIP Part #: 4012170 Required per assembly: 1 Currently Not Available
6	FUSE, 10AMP Part #: 2434016 Required per assembly: 3 Note: Fuse, 10 AMP, Ignition Sold in multiples of 10 only Currently Not Available
7	FUSE-20 MINI BLADE 58V(YELLOW) Part #: 4012811 Required per assembly: 4 Currently Not Available
8	REGULATOR-3PH 35A SERIES 105C Part #: 4012941 Required per assembly: 1 Currently Not Available
9	DIODE, 6, AMP Part #: 2411035 Required per assembly: 1 Currently Not Available
10	RELAY-SPST, 12V, 20A, EPXY, HFA Part #: 4016819 Required per assembly: 4 Currently Not Available
11	PLATE, FUSE, MOUNT Part #: 5253675 Required per assembly: 1 Note: Plate, Fuse Mount Currently Not Available
12	RIVET Part #: 7661855 Required per assembly: 4 $2.99 $1.73 - + Add to cart
13	HARNESS, BOX Part #: 2411384 Required per assembly: 1 Currently Not Available
14	STRAP PANDUIT Part #: 7080138 Required per assembly: 3 $1.99 $1.15 - + Add to cart
15	CLIP, ROSEBUD Part #: 4020149 Required per assembly: 2 Note: Clip, Rosebud Currently Not Available
16	CLIP-ROUTING Part #: 7081496 Required per assembly: 16 Currently Not Available
17	STRAP, PANDUIT, 14" Part #: 7080761 Required per assembly: 5 Note: Cable Tie Currently Not Available
18	COVER-RELAY/FUSE CENTER Part #: 5438758 Required per assembly: 1 Currently Not Available
19	FUSE, MAIN, 30, AMP Part #: 2434015 Required per assembly: 2 Note: Fuse, 30 AMP, Main Sold in multiples of 10 only Currently Not Available
19	FUSE, MAIN, 30, AMP Part #: 2434015 Required per assembly: 2 Note: Fuse, 30 AMP, Main Sold in multiples of 10 only Currently Not Available
20	DECAL-POWER FUSE Part #: 7177211 Required per assembly: 1 Currently Not Available
